To use the laser guide for an unknown angle:
• Mark the position of the cut to be made on the workpiece
(b)
using a pencil etc.
• Place the workpiece on the rotary table and against the fence.
• Adjust the mitre saw to give the approximate angle of cut.
Do not tighten the mitre lock handle at this stage.
• Slowly slide the workpiece backwards and forwards along
the fence, whilst at the same time slowly adjusting the angle
of the rotary table.
(a)
• Stop when the projected laser line and pencil line on the
workpiece match exactly.
Fig. 8
• Tighten the mitre lock handle to lock the rotary table in place.
• Secure the workpiece with a hold down clamp.
• Recheck the alignment.
• When satisfied that alignment is accurate proceed to make
the cut.
The Laser Lens cap (if fitted)
If fitted the laser lens cap is a simple push fit onto the front of
the laser unit.
If it becomes damaged or opaque for any reason it can be replaced.
Carefully pull the lens from the laser unit and replace with a new lens.

DEPTH STOP

Use of the depth stop allows the operator to cut slots in the
workpiece.
The downward travel of the Cutting Head can be set so that
the saw blade does not completely cut through the workpiece.
NOTE: When using the Depth Stop it is advisable that the depth
of cut is checked using a scrap piece of timber to ensure that
the slot cut is correct.
By making a cut in the workpiece, and then repeating the cut
but with the workpiece slightly repositioned to the left or right,
it is possible to perform trenching cuts.
To use the depth stop:
• Loosen the locking wing nut. (a)
• Adjust the thumb knob (b) to limit the saw heads travel to
the required depth.
• Once set to the desired depth, tighten the wing nut (a)
against the retaining bracket to lock the depth stop and
ensure that there is no movement.
18
www.evolutionpowertools.com

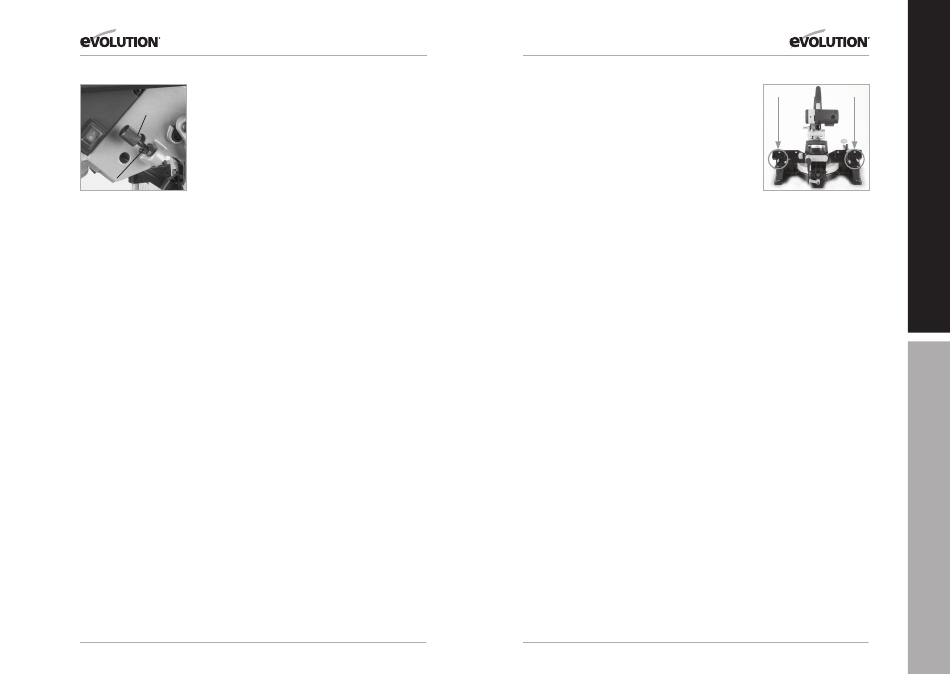

(Fig. 8)
www.evolutionpowertools.com
• When cutting is complete re-adjust the depth stop so that
the Cutting Head can be locked in the down position by the
head latching pin.

THE SLIDING UPPER FENCE SECTION

The Left Hand and Right Hand sides of the Fence have an
adjustable upper section. Adjustment may be necessary to
provide clearance for the moving Cutting Head when acute
bevel or compound angles are selected.
To adjust the Fence:
• Loosen the relevant thumbscrew. (Fig. 9)
• Slide the upper section of the Fence to the required position
and tighten the thumbscrew.
• Conduct a 'dry run' with the power off to confirm that there
is no interference between moving parts as the Cutting
Head is lowered.
OPERATING INSTRUCTIONS
CAUTION: The Mitre Saw should be inspected (particularly
for the correct functioning of the safety guards) before each
use. Do not connect the saw to the power supply until a safety
inspection has been carried out.
Ensure that the operator is adequately trained in the use,
adjustment and maintenance of the machine, before
connecting to the power supply and operating the saw.
WARNING: To reduce the risk of injury, always unplug the saw
before changing or adjusting any of the machines parts. Compare
the direction of the rotation arrow on the guard to the direction
arrow on the blade. The blade teeth should always point downward
at the front of the saw. Check the tightness of the arbor screw.
19
EN
Fig. 9
