INSTALLATION—RECIRCULATING

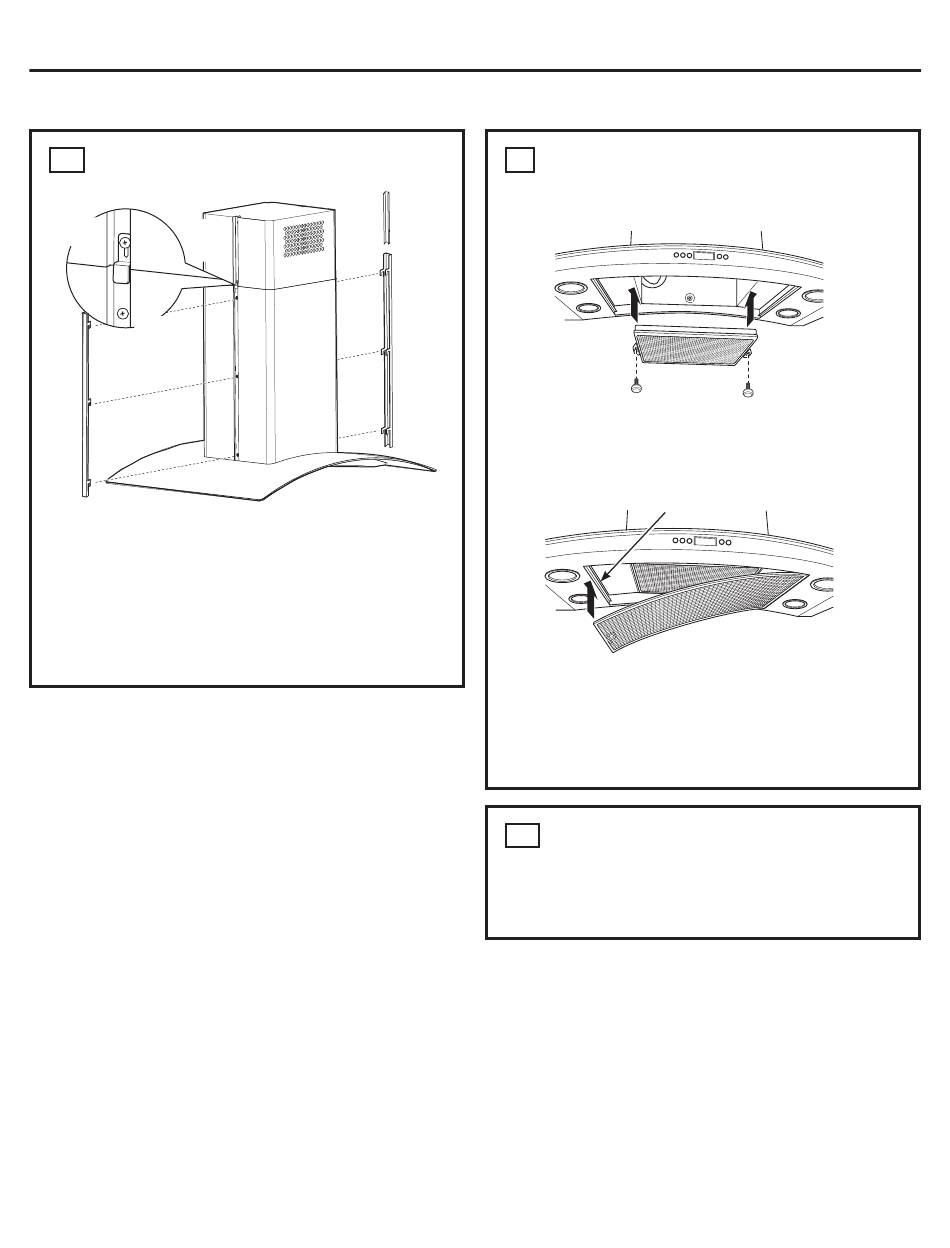

14 INSTALL DUCT COVER TRIM
Side
Upper
bracket
trim
strip
Lower
trim strip
■ I nstall side brackets to secure the lower duct tightly
against the upper duct.
■ H old lower trim strips (narrow pieces) with hooks
facing down. Place the hooks inside the slots and
slide downward.
■ S elect the correct size upper trim strips and press
into place.
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
Installation Instructions
Upper
trim
strip
Lower
trim
strip
15
INSTALL FILTERS
IMPORTANT: Check to be sure that the main ON/
OFF switch next to the motor is in the ON position.
Charcoal filter
■ I nstall the black charcoal filter into the center
opening. Secure the filter with thumbscrews on
each side.
Filter lock
Metal filter
■ T ip the filter into the left or right side of the
opening. Lift the filter to the opposite side and
into the filter lock.
■ T o remove the filter, pull the filter lock downward.
16
FINALIZE INSTALLATION
■ R emove all tape and packing material.
■ R efer to the Owner's Manual for operating
instructions.
