INSTALLATION—VENTED TO THE OUTSIDE
11

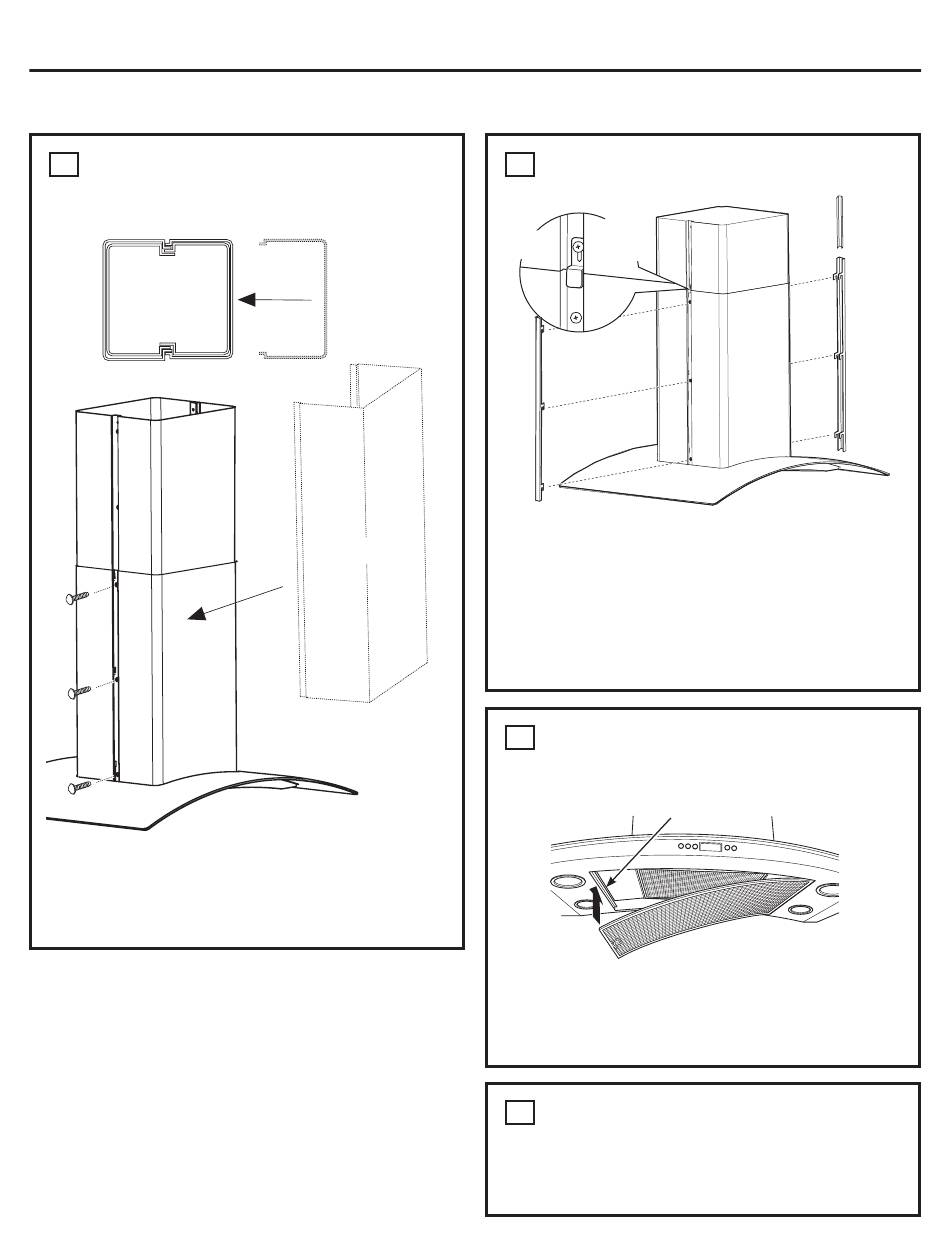

INSTALL LOWER DUCT
Front bottom duct cover section
(snap into place and secure
with 6 screws – 3 per side)
Plan diagram top
view
■ P lace rear duct cover onto the hood.
■ P lace front duct cover onto the hood.
■ S ecure the duct covers with 6 screws.
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
Installation Instructions
Front bottom duct
cover sections
12
INSTALL DUCT COVER TRIM
Upper
Side
trim
bracket
strip
Lower
trim strip
■ I nstall side brackets to secure the lower duct tightly
against the upper duct.
■ H old lower trim strips (narrow pieces) with hooks
facing down. Place the hooks inside the slots and
slide downward.
■ S elect the correct size upper trim strips and press
into place.
13
INSTALL METAL FILTER
IMPORTANT: Check to be sure that the main ON/
OFF switch next to the motor is in the ON position.
Filter lock
■ T ip the filter into the left or right side of the opening.
Lift the filter to the opposite side and into the filter
lock.
■ T o remove the filter, pull the filter lock downward.
14
FINALIZE INSTALLATION
■ R emove all tape and packing material.
■ R efer to the Owner's Manual for operating
instructions.
Upper
trim
strip
Lower
trim
strip
