INSTALLATION—VENTED TO THE OUTSIDE
8
CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARNING
If house wiring is not 2-wire with a
ground wire, a ground must be provided by the installer.
When house wiring is aluminum, be sure to use U.L.
approved anti-oxidant compound and aluminum-to-
copper connectors.

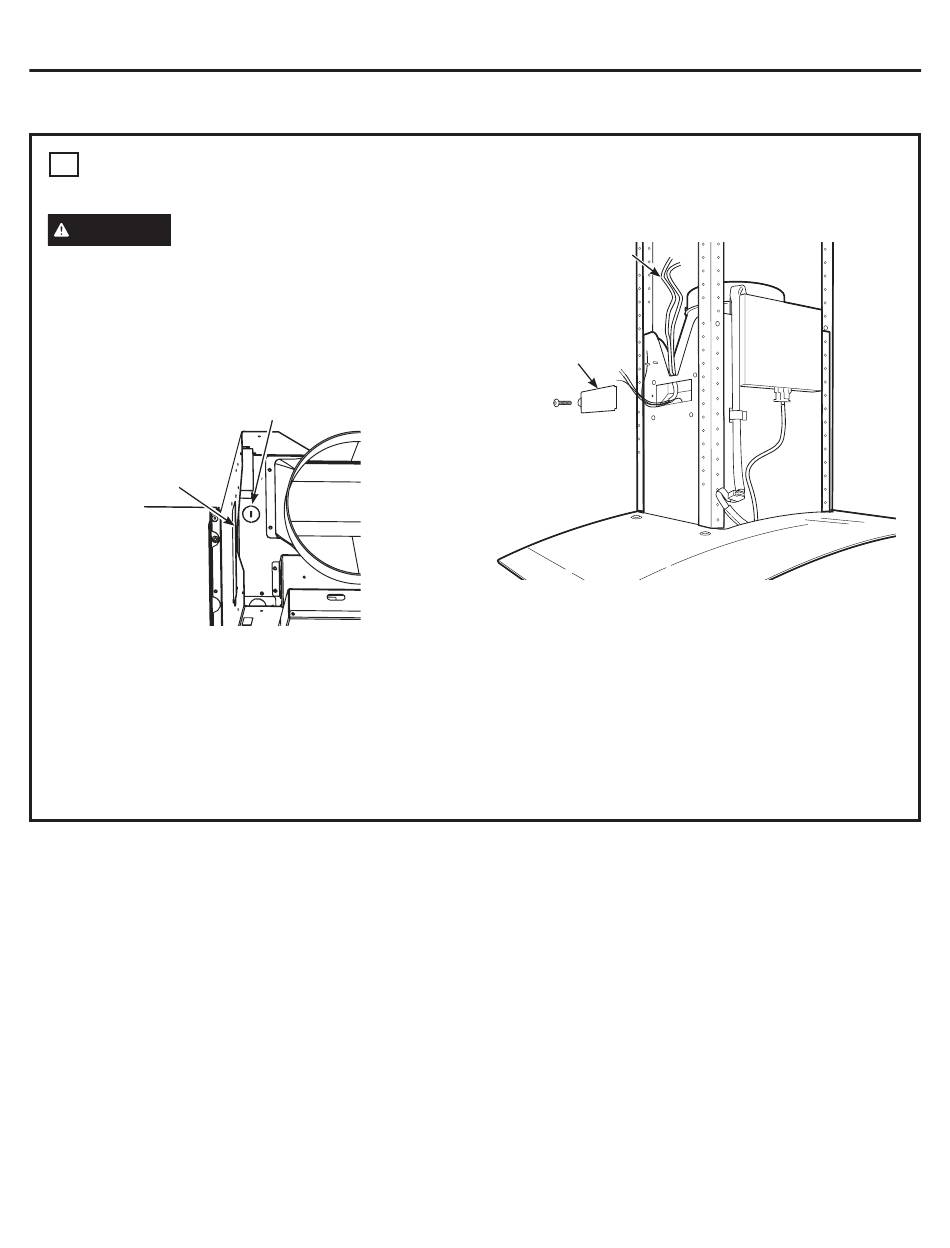

■ R emove junction box cover and knockout on the
left side.
J-Box cover
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
Installation Instructions
Knockout
■ S ecure the house wiring to the junction box with
a strain relief.
House wiring
J-Box cover
■ C onnect white leads to branch circuit white lead.
■ C onnect black leads to branch circuit black lead.
■ C onnect green/yellow leads to branch circuit green
lead or bare ground lead.
■ S ecure all connections with wire nuts on each
electrical connector.
■ P ush wires into junction box and replace cover.
Be sure wires are not pinched.
■ S ecure J-Box cover with original screw.
