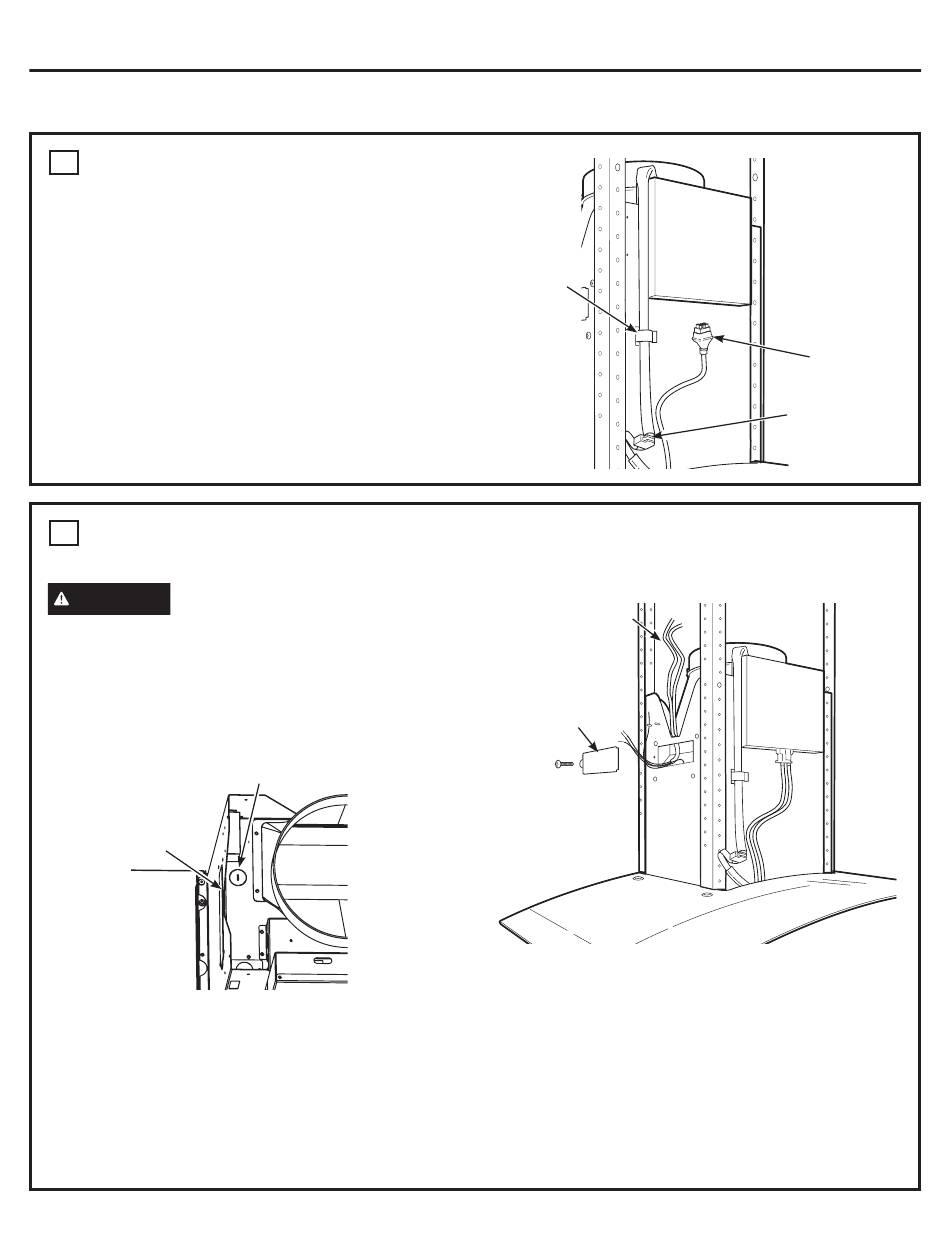

INSTALLATION—RECIRCULATING
9 CONNECT CABLES
■ J oin the two cable connectors at the front of the hood.
Secure the cables behind the retainer clip.
10 CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARNING
If house wiring is not 2-wire with a
ground wire, a ground must be provided by the installer.
When house wiring is aluminum, be sure to use U.L.
approved anti-oxidant compound and aluminum-to-
copper connectors.
■ R emove junction box cover and knockout on the
left side.
J-Box cover
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
Installation Instructions
Knockout
Retainer
clip
■ S ecure the house wiring to the junction box with a
strain relief.
House wiring
J-Box cover
■ C onnect white leads to branch circuit white lead.
■ C onnect black leads to branch circuit black lead.
■ C onnect green/yellow leads to branch circuit green
lead or bare ground lead.
■ S ecure all connections with wire nuts on each
electrical connector.
■ P ush wires into junction box and replace cover. Be
sure wires are not pinched.
■ S ecure J-Box cover with original screw.
To lights
To control
panel
