CONSTRUCT CEILING SUPPORT (Cont.)
EXAMPLE B
EXAMPLE C
framing symmetrically over
10
Installation Preparation
16" joist
spacing
7-1/16"

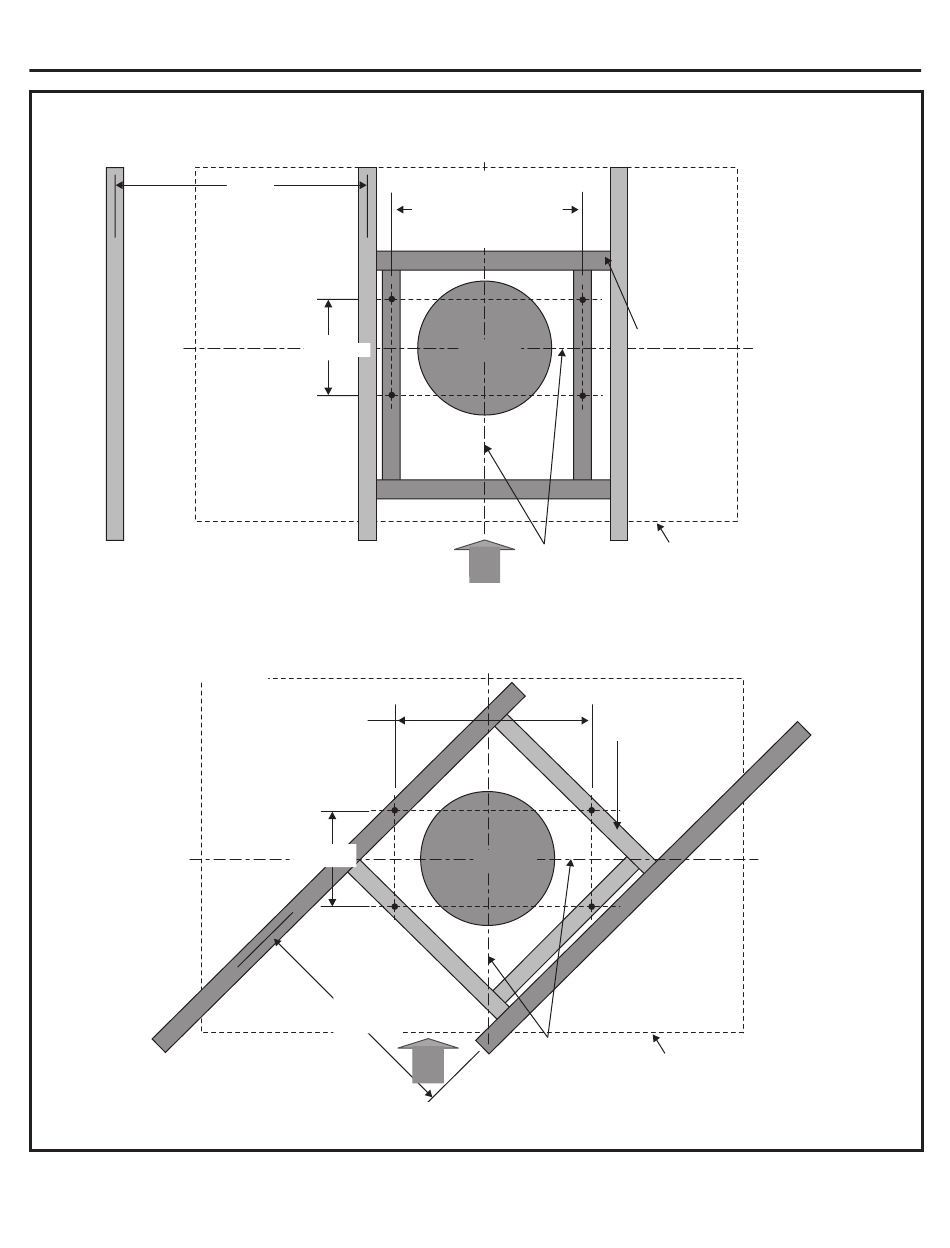

Top view – ceiling joists run perpendicular to front of hood
10-1/16" install cross-
duct/cooktop centerline
7-1/16"
16" joist
spacing
Top view – ceiling joists at angle to front of hood
10-1/16" install
cross-framing
symmetrically over
duct/cooktop
centerline
8" duct
Front
Align duct
of
to center of
hood
cooktop
8" duct
Align duct
Front
to center of
of
cooktop
hood
2x4 cross
framing
Cooktop
outline
2x4 cross
framing
Cooktop
outline
1" = 2.5 cm; 1' = 0.3 m
