INSTALLATION—VENTED TO THE OUTSIDE
9

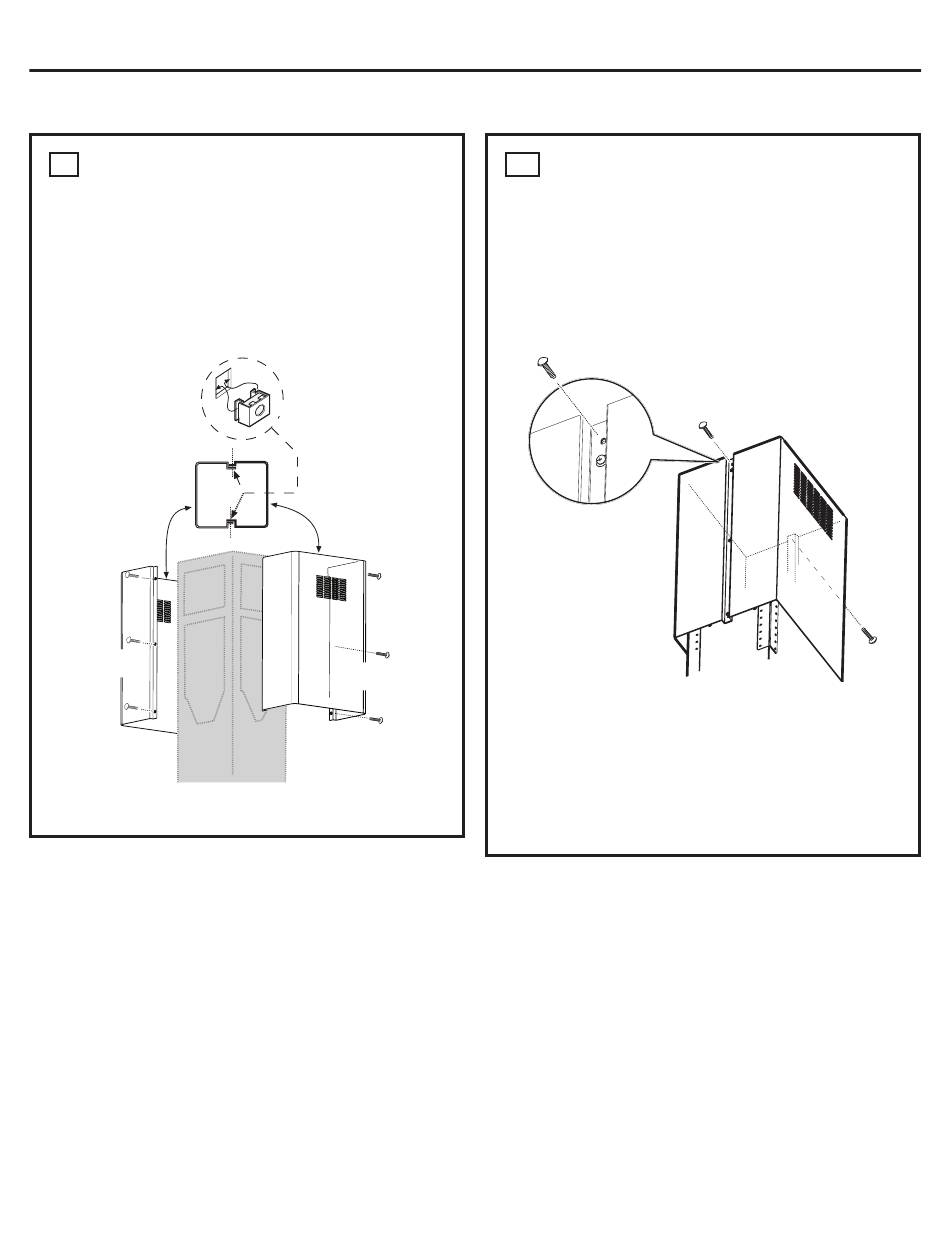

PREPARE THE DUCT COVERS
■ R emove the plastic protective covering on all duct
pieces.
■ I nstall 3 cage nuts on each inside section of the top
duct cover. The cage nuts fit into the rectangular
slots, clips facing outward.
■ I nstall 3 cage nuts on each side of the lower duct
covers.
Rectangular slots
Plan
diagram
Top
sections
16
Installation Instructions
Nut
Top
sections
Support
frame
10
INSTALL UPPER DUCT COVER
■ P lace the tall duct covers onto the top of the hood.
This section has venting holes on one end.
NOTE: If you are installing this hood for
recirculating operation, place the duct covers onto
the hood with the venting slots at the top.
I f the hood is vented to the outside, the holes
should be positioned on the bottom.
■ S ecure the sides with 6 screws installed through the
cage nuts.
■ R aise the assembled duct covers to the top, against
the ceiling.
■ M atch mounting holes, one on each side. Install
screws through the duct and into the support.
1" = 2.5 cm; 1' = 0.3 m
