INSTALLATION—RECIRCULATING
3

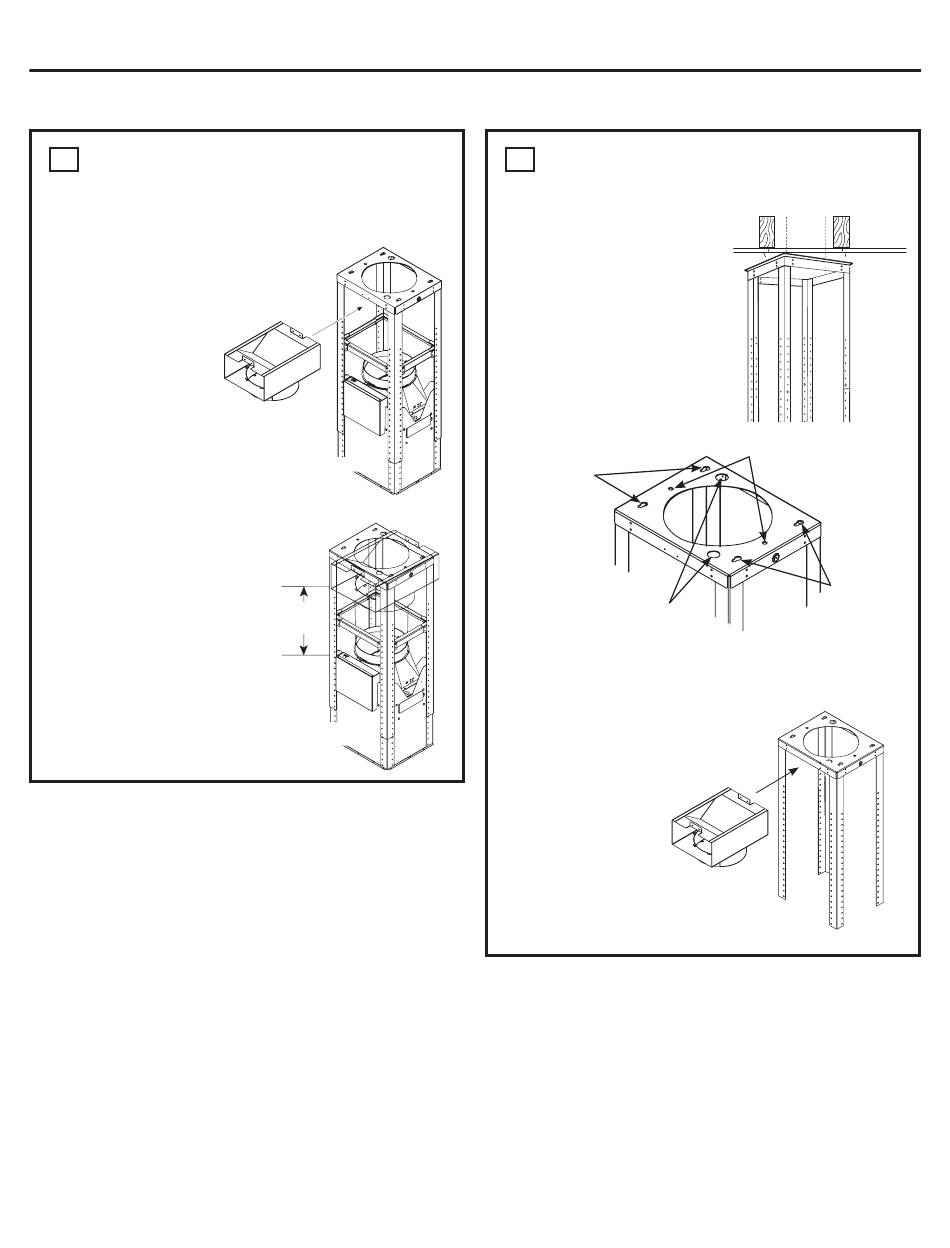

INSTALL AIR DEFLECTOR,
CUT DUCT FOR RECIRCULATING
OPERATION
■ T emporarily, slide the air deflector
into the support frame.
■ M easure duct length between
the deflector and over the
exhaust opening.
■ C ut duct piece to length and
set aside.
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
Installation Instructions
FRONT
Duct
length
FRONT
4
INSTALL UPPER SUPPORT
FRAME
■ R aise the upper support
toward the ceiling.
■ T hread the house wiring
through one of the large
holes, preferably on the left
side.
■ C arefully engage the ceiling
mounting screws to the
keyhole slots in the top of
the frame.
Keyhole
slots
House wiring
■ T ighten the 4 mounting screws against the frame.
■ I nstall 2 safety screws.
■ S lide air deflector
into the support
frame.
■ S ecure the deflector
to the support with
4 screws.
■ I nstall the duct
piece to the bottom
of the deflector and
seal the connection
with duct tape.
Safety
screws
Keyhole
slots
19
