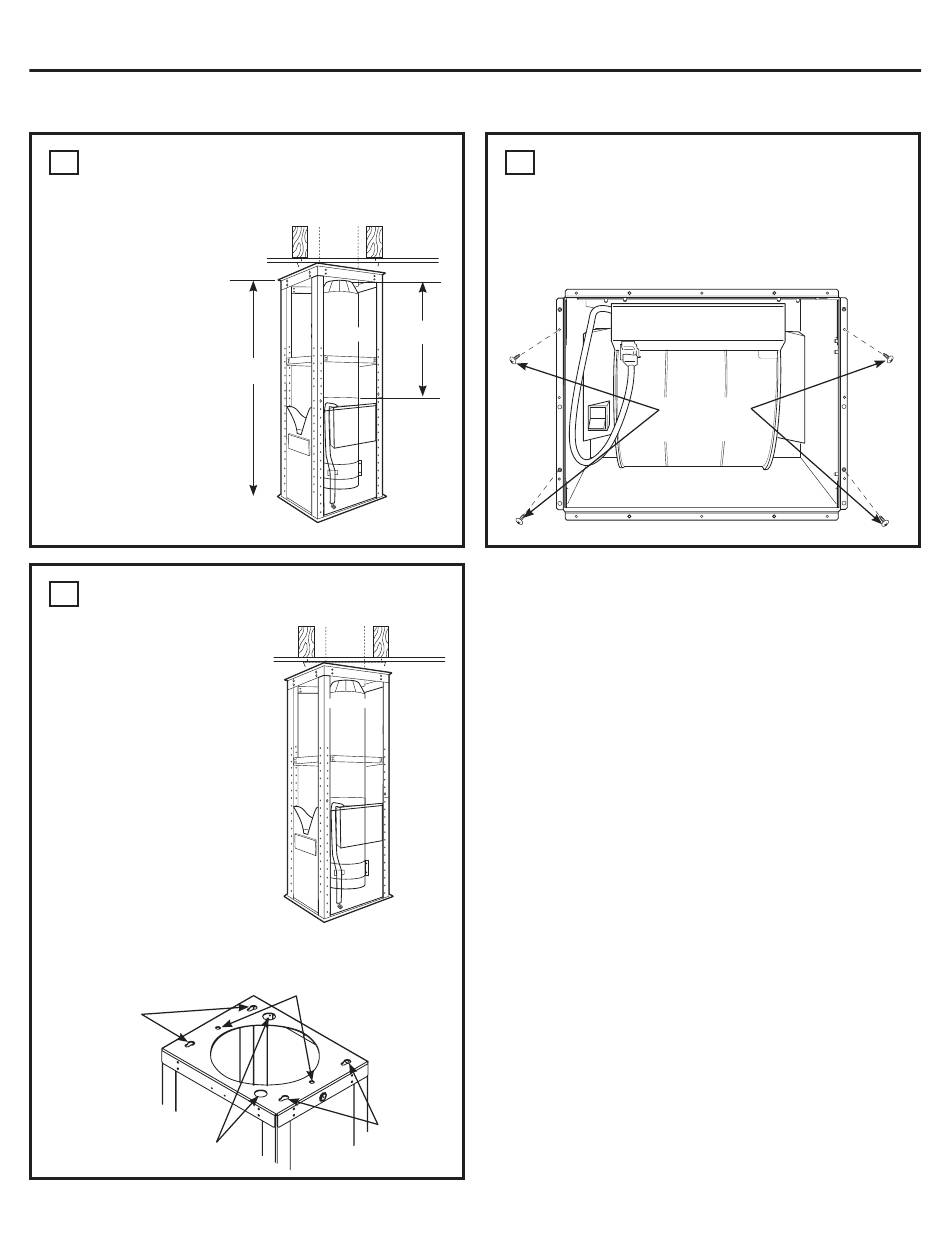

INSTALLATION—VENTED TO THE OUTSIDE
3
CUT DUCT TO LENGTH FOR
VENTED
■ M easure from house
duct to exhaust
opening.
■ C ut the 8" duct length
to size.
■ S lip duct over the
exhaust opening.
■ S eal the connection
with duct tape.
4
INSTALL THE SUPPORT FRAME
■ R aise the support toward
the ceiling.
■ T hread the house wiring
through one of the large
holes, preferably on the left
side.
■ C arefully engage the
ceiling mounting screws to
the keyhole slots AND the
house duct in the top of the
frame.
■ T ighten the 4 mounting
screws against the frame.
■ I nstall 2 safety screws.
■ U se duct tape to seal the
duct connection at the top.
Keyhole
slots
House wiring
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
Installation Instructions
House
duct
Duct
Duct
length
Frame
height
Duct
Safety screws
Keyhole
slots
5 INSTALL HOOD ATTACHMENT
SCREWS
■ I nstall 4 hood attachment screws in the bottom of
the support as shown. Leave 1/4" gap between
screw head and support flange.
attachment
Install 4
screws
13
