INSTALLATION—RECIRCULATING
11

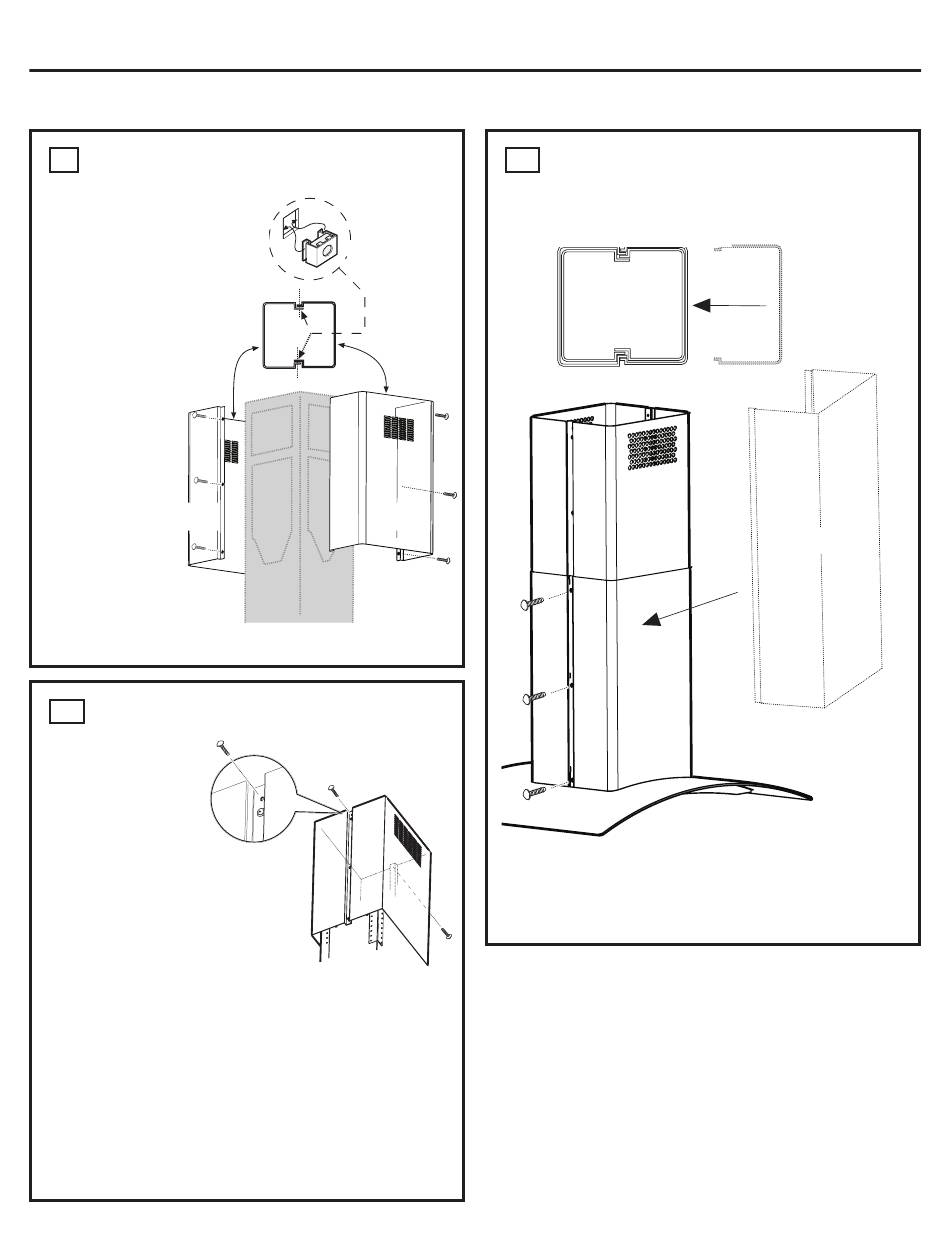

PREPARE THE DUCT COVERS
■ R emove
the plastic
Rectangular
protective
covering
on all duct
pieces.
■ I nstall 3
cage nuts on
each inside
section of
the top duct
cover. The
cage nuts
fit into the
rectangular
slots, clips
Top
facing
sections
outward.
■ I nstall 3 cage
nuts on each
side of the
lower duct
covers.
12
INSTALL UPPER DUCT COVER
■ P lace the tall duct
covers onto the top
of the hood. This
section has venting
holes on one end.
NOTE: If you are
installing this hood
for recirculating
operation, place the
duct covers onto
the hood with the
venting slots at the
top.
I f the hood is vented to the outside, the holes
should be positioned on the bottom.
■ S ecure the sides with 6 screws installed through the
cage nuts.
■ R aise the assembled duct covers to the top, against
the ceiling.
■ M atch mounting holes, one on each side. Install
screws through the duct and into the support.
22
Installation Instructions
slots
Nut
Plan
diagram
sections
Support frame
13 INSTALL LOWER DUCT COVER
Front bottom duct cover section
(snap into place and secure with
6 screws – 3 per side)
Top
■ P lace rear duct cover onto the hood.
■ P lace front duct cover onto the hood.
■ S ecure the duct covers with 6 screws.
Plan
diagram
top view
Front bottom duct
cover sections
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
