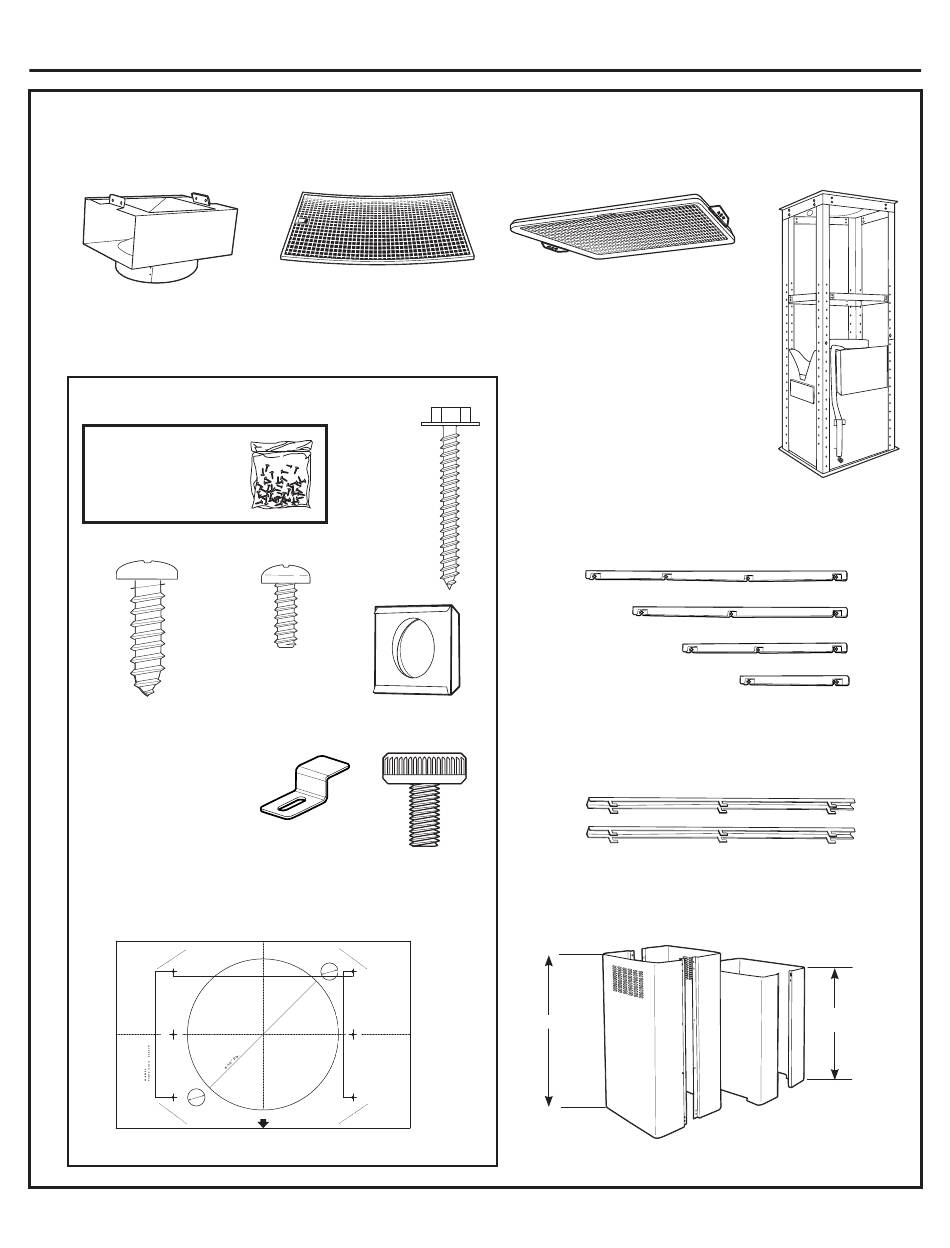

PARTS PROVIDED
Locate the parts packed with the hood.
Air deflector for
recirculating installation
HARDWARE PACKAGE
Locate and check
contents. Screws
shown actual size.
42 screws total:
• 24 support frame screws
• 1 0 hood attachment
screws
• 2 upper duct cover
attachment screws
• 4 recirculating
deflector screws
• 2 duct cover bracket
attachment screws
Note: Some additional hardware/screws included.
Drill 3/16"
Pilot Holes
Approx. 1-1/2"
Deep
7-1/16" to
Centerline
of Holes
Cut a 1" Dia.
Wire Access
Hole
8
Installation Preparation
Stainless steel filter
6 ceiling
mounting
screws
761Dia65
12 sheet
metal
screws
12 cage
nuts
2 Duct cover
brackets
2 thumb
screws
Cut a 1" Dia.
Wire Access
Hole
10-1/16" to
Centerline
of Holes
Drill 3/16"
Pilot Holes
Approx. 1-1/2"
Deep
36" Hood
Template
7-1/16" to
Centerline
of Holes
FRONT OF HOOD
Template
1 charcoal filter for
recirculating installation
Upper duct cover trim pieces
2 each of 4 sizes
Lower duct cover trim pieces
24-3/4"
Decorative duct covers
(14" wide, 12-3/16" deep when assembled)
Telescoping support
frame
23-1/4"
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
