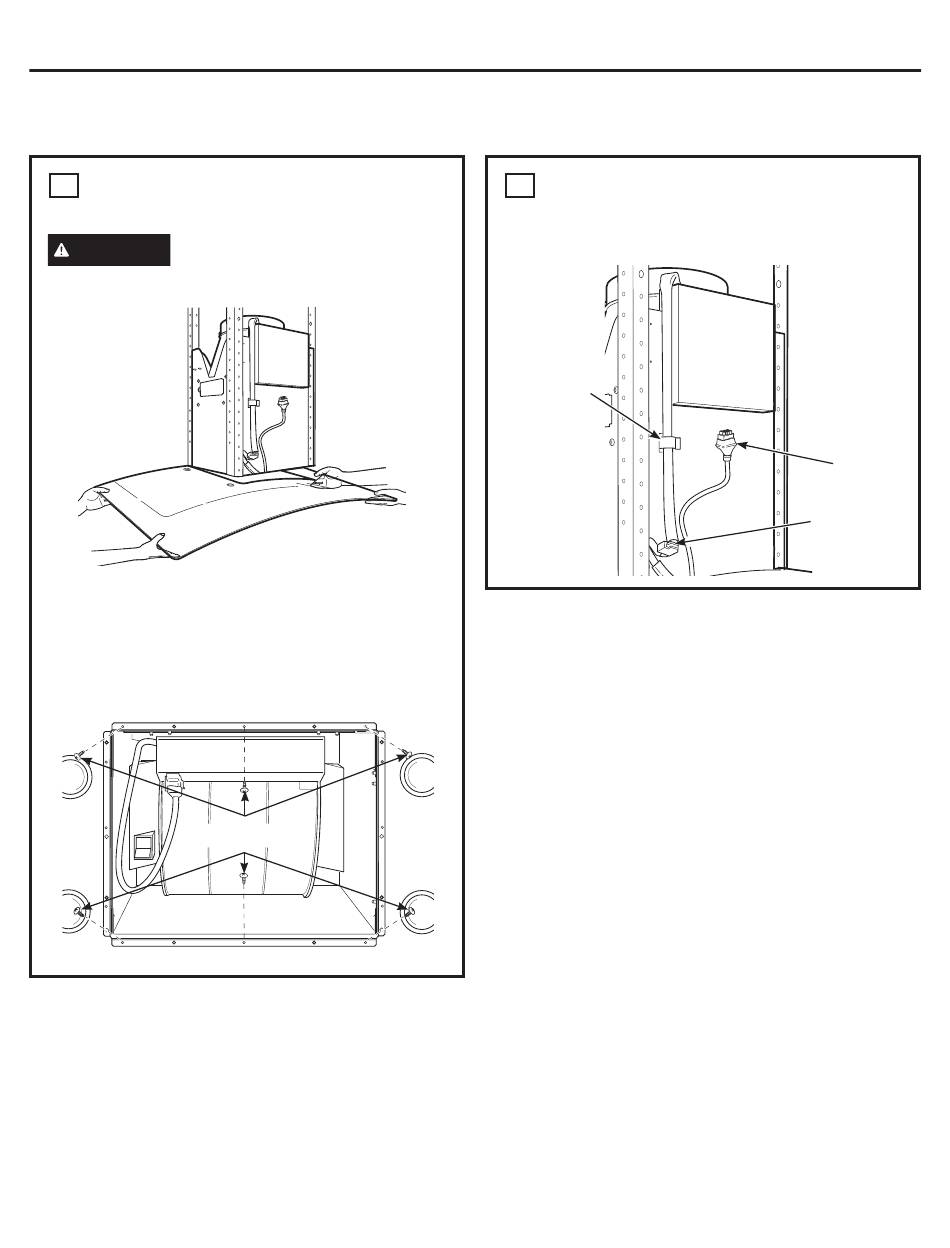

INSTALLATION—VENTED TO THE OUTSIDE
6
MOUNT THE HOOD ONTO THE
SUPPORT
WARNING
2 people are required to lift and
position the hood onto the mounting bracket.
■ L ift the hood to the bottom of the support, engaging
the keyhole slots to the 4 mounting screws.
■ T ighten the 4 mounting screws.
■ I nstall 6 additional screws as shown.
14
Installation Instructions
Install
6 screws
7
CONNECT CABLES
■ J oin the two cable connectors at the front of the
hood. Secure the cables behind the retainer clip.
Retainer clip
To lights
To control
panel
1" = 2.5 cm; 1' = 0.3 m
49-80329 Rev. 5
