– Do not spray the wall mount directly with water
(e.g. high-pressure cleaning equipment or garden
hoses).
– Do not install the wall mount under hanging
objects.
– Do not install the wall mount in stables, livestock
buildings or locations where ammonia gases
occur. Also, do not operate the charger in these
locations.
– Install the wall mount on a smooth surface.
– In order to ensure secure fastening, check
the condition of the wall before installation.
– Install the wall mount so that it is not near
pathways and the charging cables do not cross
any pathways.
– Install the wall mount so that the distance from
the power plug to the power socket does not
exceed the available supply cable length.
– Install the plug holder as close as possible to
the preferred parking position for the vehicle.
Take the orientation of the vehicle into account.
– Make sure the distance of the electrical socket
from the floor and ceiling conforms to national
standards and regulations, to ensure comfortable
use.
– We recommend installing a residual current
device on the connection side.
f Please see chapter "Safety instructions" on
page 3.
Tools required
– Spirit level
– Power or hammer drill
– Screwdriver
Installing the wall mount

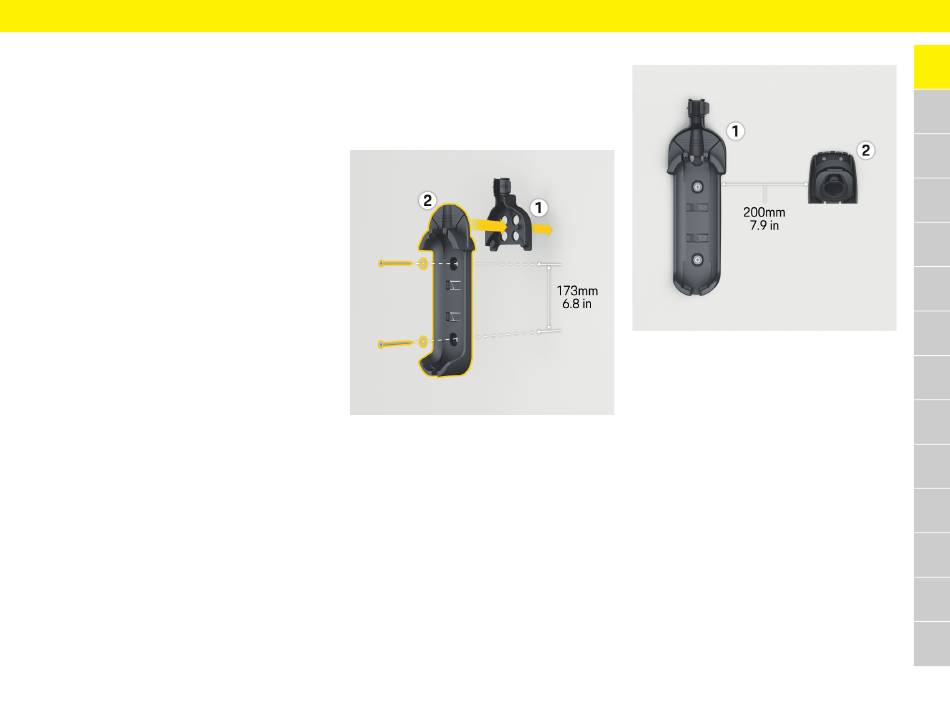

Fig. 13: Drilling dimensions
1. Mark the drill holes on the wall.
2. Drill the mounting holes and insert wall plugs.
3. Press the wall mount 2 into the cable guide 1
from the front.
4. Screw the wall mount onto the wall.
Installation instructions
Installing the plug holder
Fig. 14: Distance from wall mount to plug holder
When installing the plug holder, ensure a distance
from the wall mount of 7.9 in. (200 mm).
