b) Tools and auxiliaries, check list for putting into operation
Go through the various points of the check list one after the other, and your model is then ready to run.
Tools
•
Box spanner (or flat spanner) 7 mm to fasten the wheel nuts
•
Flat spanner 5 mm to set alignment and inclination
•
Allen key  mm for grub screws on the attachments
of cardan and drive shafts
•
Allen key 1 mm for the grub screws on the adjusting rings
of the throttle/brake and steering linkages
•
Philips head (Ph no. 1) to fasten servos and body holders
as well as for conversions
•
Cutting tool to adjust servo steering levers
•
Cutting tool for the car body (e.g. Lexan scissors)
•
chassis drill
Auxiliaries
•
Cable fastener
•
Air filter oil
•
Low viscosity machine oil for lubrication and
•
to protect the combustion chamber against corrosive
•
residues in the engine, after operation („After Run")
•
instant glue
NOTE!
The instructions specific to position front / back / right / left always refer to the
longitudinal axis of the vehicle in drive direction "forward"!
c) Handling and painting the car body
For the completion of your model, accessory retail markets offer not only finished painted and glued car bodies but also many different uncoated bodies.
The latter can be provided with the appropriate colors and adhesive labels of the corresponding decal sheet. With this individual design option, you give you
vehicle not only a "personal note", but it also helps you to identify your vehicle when driving it amid a group of vehicles.
Preparing the car body
Naturally, you can paint the body directly after cutting it.
We recommend, however, after the installation of the body supports on the chassis and adjusting them to the body support, that you drill the holes for the
body supports first, if they are not already available or if they do not fit.
With an uncoated body, it is much easier to find the correct positions of the boreholes.

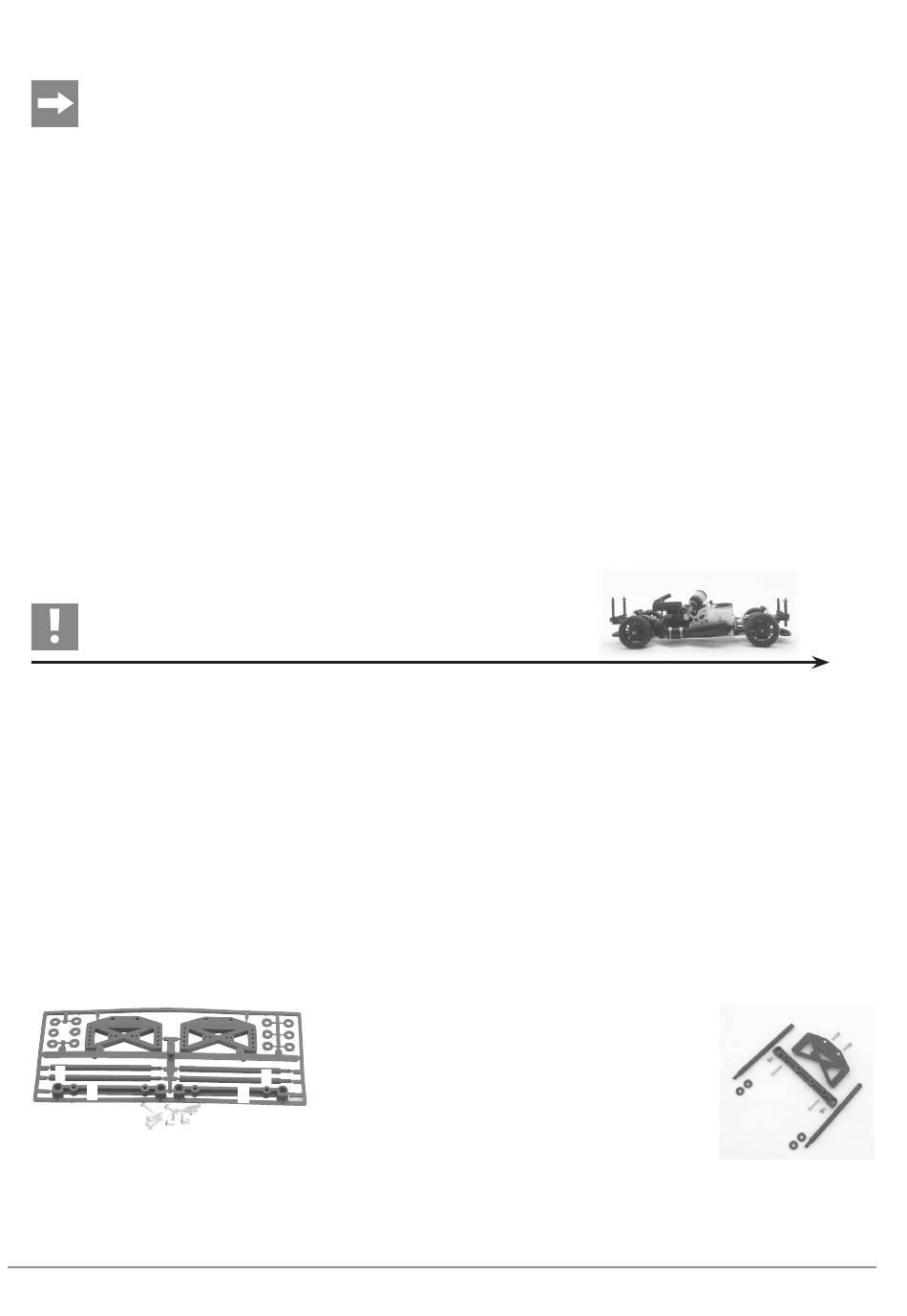

Assembly of the car body fixing elements
An assembly kit with fixing elements is included in the delivery. These elements allow for an individual adjustment onto all car bodies.
3
4
1
2
5
Assembling the supports of the body
•
Stick the car body distancer bolts into the support. The end with the hole for the body splint must be placed on the same side respectively.
•
Slightly fix the distancer bolts in the support with the short screws.
•
Stick one washer each on the distancer bolts.
44
The set includes:
3
4 car body bolts (1)
 supports for the car body bolts ()
 mountings for the car body supports (3)
1
1 washers (4)
2
1 set of screws (5)

Check list for commissioning

•
Cut the body
•
Mount the body supports onto the vehicle
•
If necessary, drill the appropriate holes in the body in order to be able
to fix the latter
•
Paint the body; place the adhesive labels
•
Check alignment and tooth backlash of drive; if necessary readjust
•
ARR: Installing and setting steering servo and steering linkage
•
ARR: Installing and setting throttle/brake servo and linkages
•
ARR: Attaching ON/OFF switch for receiver in the cover of the receiver
box (already mounted)
•
ARR: Placing receiver into the receiver box
•
ARR: Fastening antenna to the cover of the receiver box
•
Inserting the batteries/rechargeable batteries in the receiver support and
in the receiver box.
•
Function control of servos
•
Checking basic carburetor setting
•
Screwing in glow plug
•
Filling-in model fuel
•
Installing the car body
