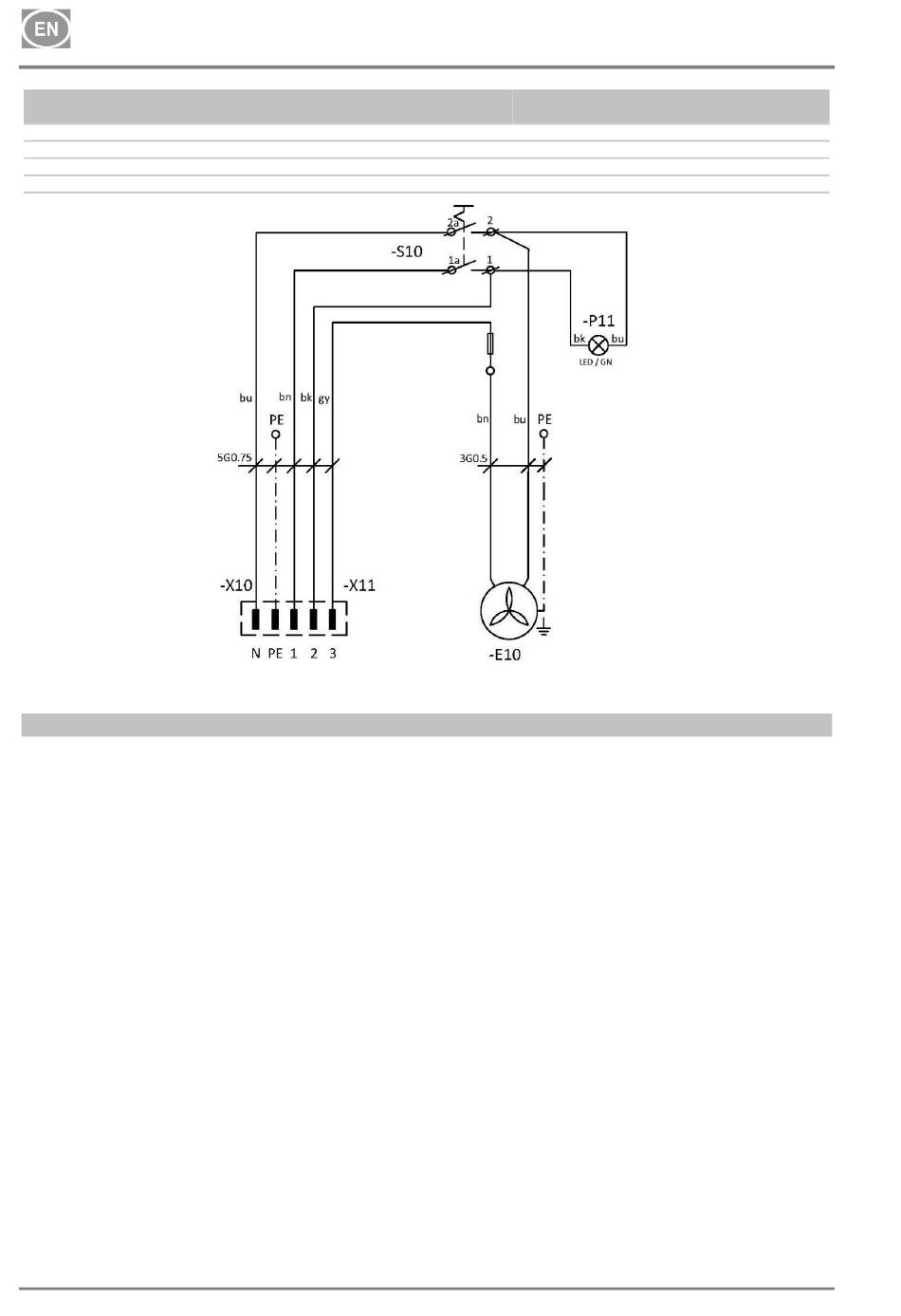

Compressor cabinet
1/N/PE 230V, 50 Hz
230 V, 60 Hz
115V, 60 Hz
ELECTRICAL OBJECT OF 1st. CAT
Legend for electrical diagram
M1 Compressor motor
E1 Compressor fan
E2 Dryer fan
M10 Relief valve
B2 Temperature switch
E10 Cabinet fan
X10, X2 Connector
F11 Breaker
Q11 Contactor
Note :
P21* - Hour meter installed only for the 8-10bar compressor model
J** - Connect the jumper only for compressor models not installed in cabinets (chap.19.10)
*** - Configuration valid only for DK50 2V, DK50 2V S
NP-DK50 PLUS, 2V-18_02-2023-MD
C1 Capacitor
B1 Pressure switch
X1 Terminal box
F1 Breaker switch
M4 Condensate drain valve
P21* Hour counter
S10 Switch
P11 Indicator
X2 Socket
- 36 -
DK50 PLUS, DK50 2V
02/2023
