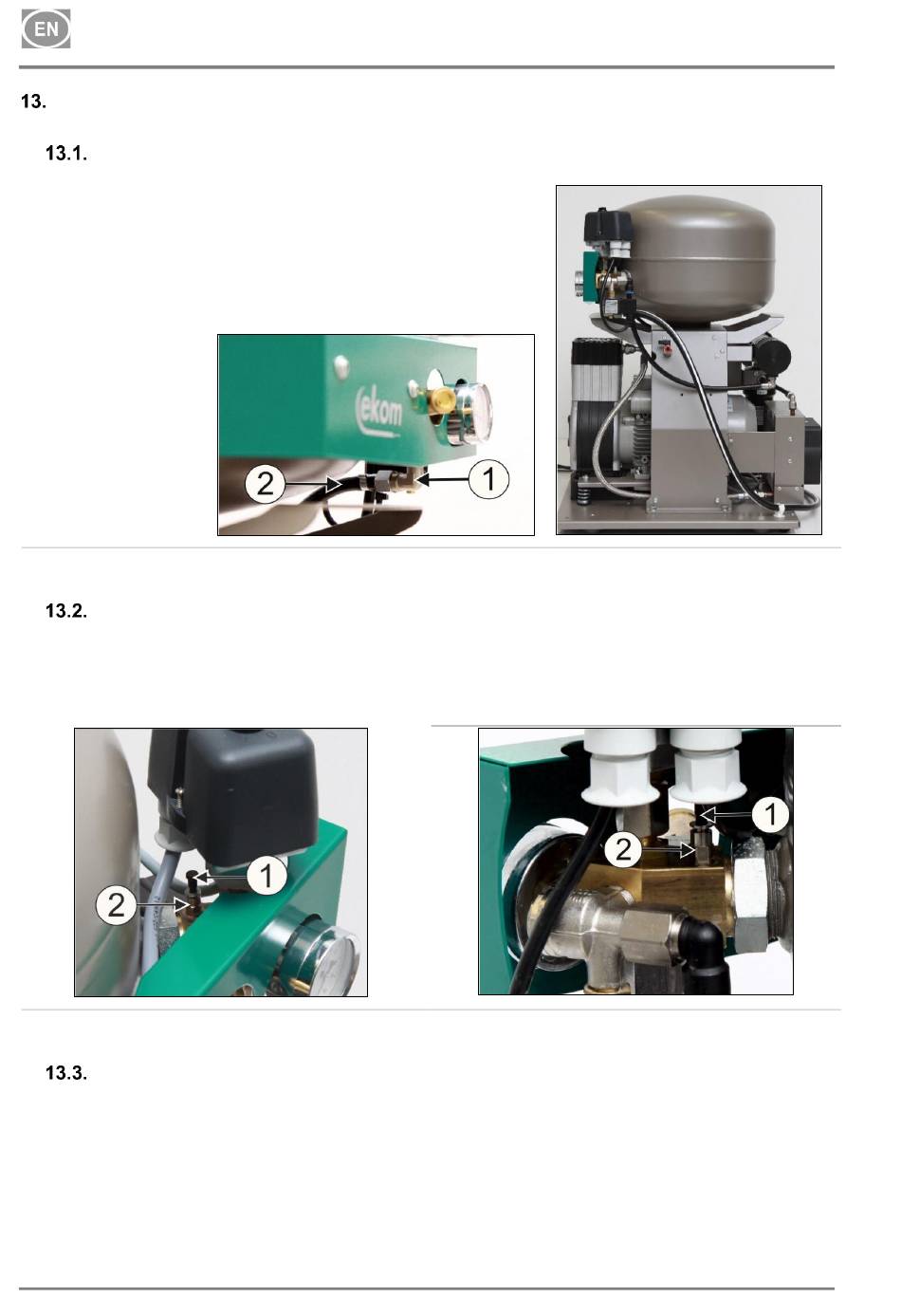

PNEUMATIC CONNECTIONS
Connecting to the compressed air outlet
The pressure line (2) is attached to the compressed air outlet
(1) on the compressor. Run the hose to the compressed air
manifold or directly to the dental set.
Route the pressure hose through the opening in the rear wall
of the cabinet for cabinet-mounted compressors. (Fig. 8)
Connecting the cabinet pressure gauge to the compressor
Remove the plug (1) from the threads (2) on the pneumatic block of the compressor. Connect the
cabinet pressure gauge hose to the threaded fitting.
Connecting the condensate vessel
• Connect the drain hose (1) to the condensate vessel on compressors with dryers.
• Route the hose (1) through the opening in the rear wall of the cabinet for compressor models
with a dryer and connect it to the vessel.
