DK50 PLUS, DK50 2V
Risk of damage to pneumatic components.
Air hoses must not be broken.
Floor installation
Connect the compressor using the hoses prepared in advance in the floor, as per the installation
plan.

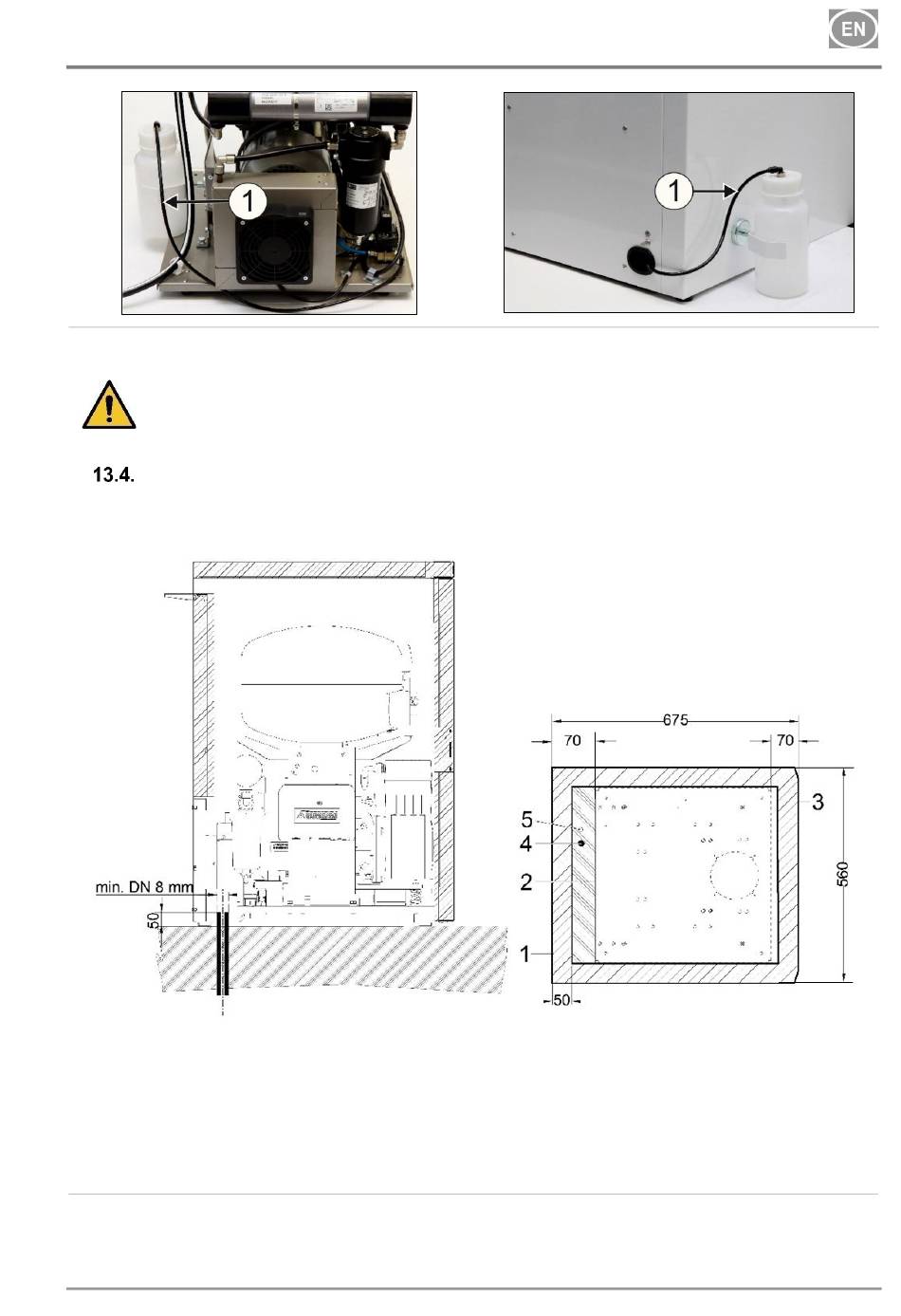

1 - Outline of the cabinet
2 - Outline of the base
3 - Front section - door
4 - Compressed air connection, G3/8"
5 - Power supply input:
230V/50(60)Hz
3x400V/50Hz
02/2023
3Gx1.0x4000
5Gx1.0x4000
- all dimensions are in millimetres
- distance from wall min. 100 mm
- 31 - NP-DK50 PLUS, 2V-18_02-2023-MD
Fig. 8
Fig. 9
