Fence Alignment; Mitre Angle Pointer Adjustment - Evolution Rage 3-DB Traduction De La Notice D'emploi Originale

45 0 Left Hand Bevel Stop Adjustment
• Loosen the Bevel Lock Handle and tilt the Cutting Head
completely to the left until it rests against the 45
• Use a Set Square to see if the blade is at 45
(avoiding the TCT tips).
• If the saw blade is not in exact alignment adjustment is necessary.
• Return the Cutting Head to its upright position.
• Loosen the locknut on the 45
• Use a Hex Key to adjust the Adjustment Screw in or out as
required. (Fig. 15)

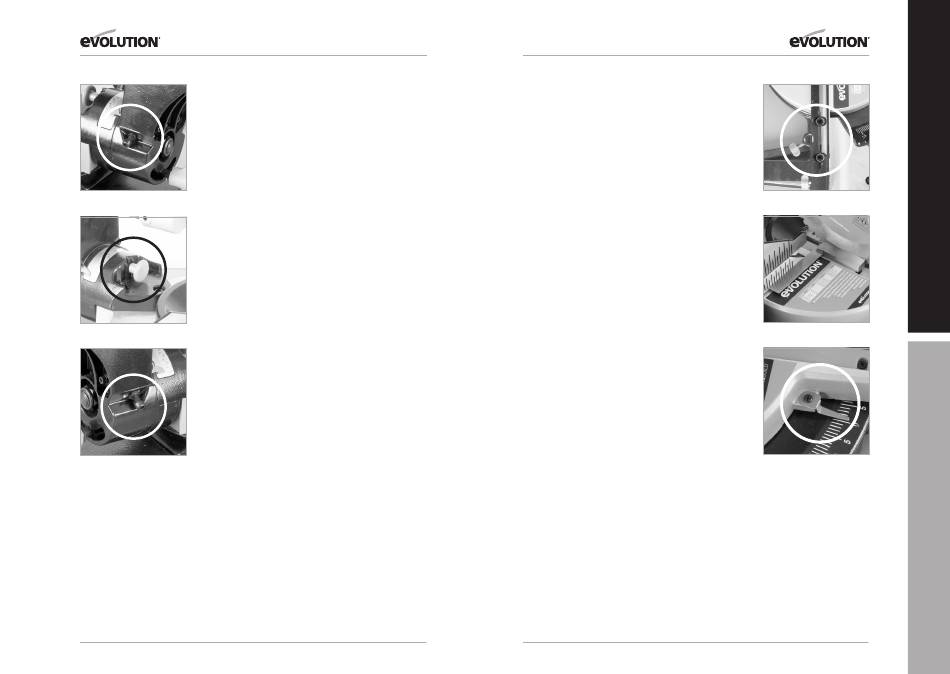

Fig. 15
• Tilt the Cutting Head to the 45
alignment with the Set Square.
• Repeat the above steps until the correct angular alignment
is achieved.
• Tighten the Adjustment Screw locknut securely once
alignment is achieved.
45 Right Hand Bevel Stop Adjustment
0
• Loosen the Bevel Lock Handle.
• Pull out the Right Hand Bevel Access Locking Pin and twist
Fig. 16
it ¼ of a turn to hold it in the disengaged position. This will
enable access to the right hand bevel angles. (Fig. 16)
• Tilt the Cutting Head completely to the right until it rests
against the 45
0
• Use a Set Square to see if the blade is at 45
(avoiding the TCT tips).
• If the saw blade is not in exact alignment adjustment
is necessary.
• Return the Cutting Head to its upright position.
• Loosen the locknut on the 45
• Use a Hex Key to adjust the Adjustment Screw in Or out as
required. (Fig. 17)
Fig. 17
• Tilt the Cutting Head to the 45
alignment with the Set Square.
• Repeat the above steps until the correct angular alignment
is achieved.
• Tighten the Adjustment Screw locknut securely once
alignment is achieved.
22
www.evolutionpowertools.com
stop.
0
to the table
0
0 Bevel Adjustment Screw.
0 setting and recheck for
stop.
to the table
0
Bevel Adjustment Screw.
0
setting and recheck for
0
www.evolutionpowertools.com

FENCE ALIGNMENT

The fence must be aligned at 90 0 (square) to a correctly
installed blade The rotary table must be set at '0 ' miter angle.
0
The Fence is fastened to the table with two socket head Hex
screws positioned at either side of the fence in elongated slots.
(Fig. 18)
• Ensure that the Cutting Head is in the locked down position
with the latching pin fully engaged in its socket
• Place a Engineers Square on the table with one short edge
against the Fence and the other short edge against the Blade
(avoiding the TCT tips). (Fig. 19)
• If adjustment is necessary, loosen the four Fence adjustment
screws using a Hex Key
• Re-position the Fence in its elongated slots until alignment
is achieved.
• Securely tighten the socket head Hex screws.

MITRE ANGLE POINTER ADJUSTMENT

NOTE: There are dual miter angle scales cast into the front of
the machines base. A small pointer attached to the rotary table
indicates the angle selected.
If necessary the pointer can be repositioned by loosening
its fastening screw using a #2 Phillips screwdriver. Adjust as
necessary, and then securely tighten the fixing screw. (Fig. 20)
23
EN
Fig. 18
Fig. 19
Fig. 20
