6.4.8.2 Input with metering enable [Operating mode] / [Manual]

For the software-side configuration, see
[Manual] (with 'metering enable' )' on page 79

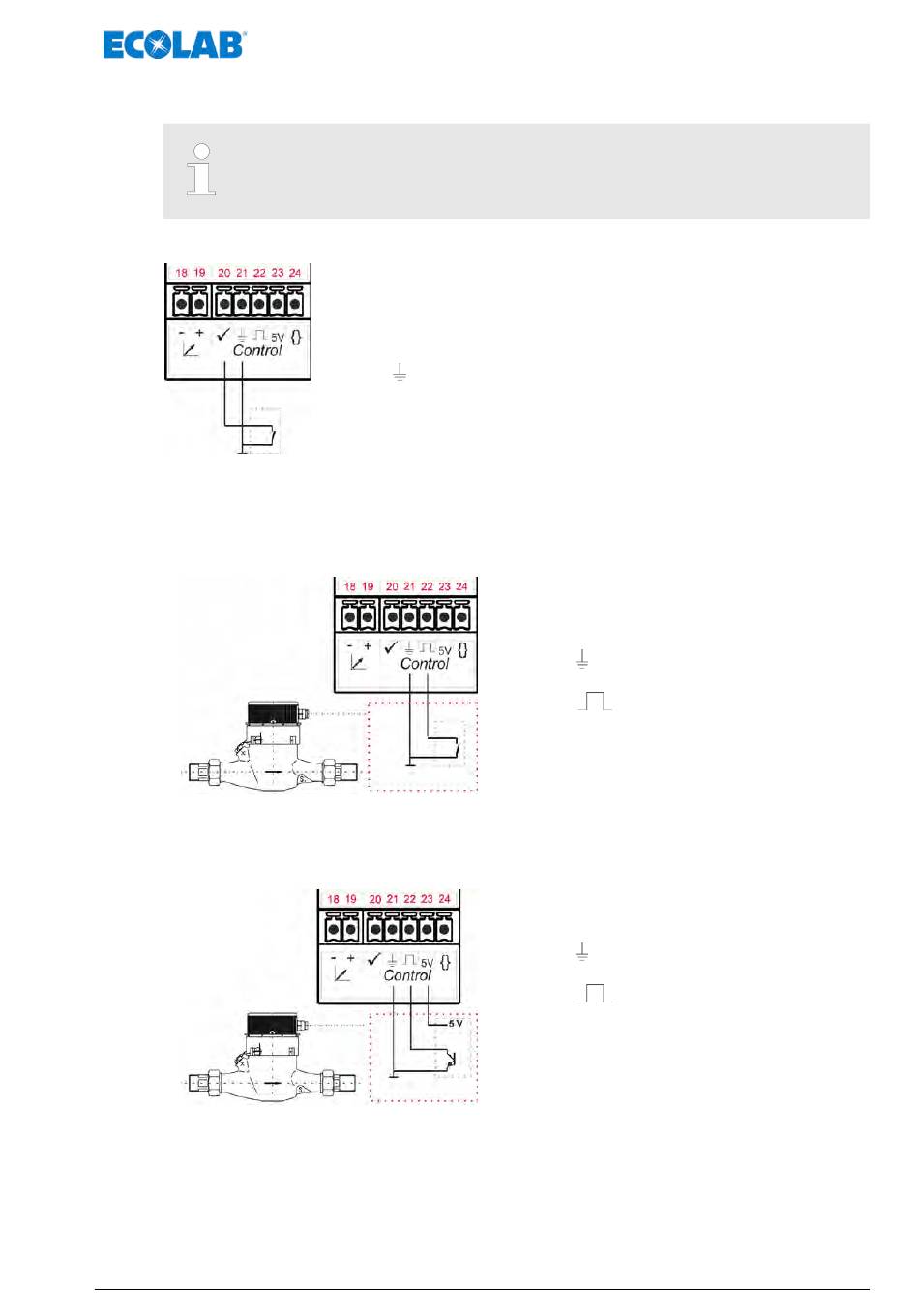

6.4.8.3 Terminal assignment when using a water meter

6.4.8.3.1 "floating contact"

6.4.8.3.2 "electronic switch"
20 = Enable signal ü
Colour:
21 = GND
Colour:
61
Mounting and installation
Ä Chapter 7.9.2 'Operating mode
21 = GND
Colour:
22 = pulse
Colour:
21 = GND
Colour:
22 = pulse
Colour:
23 = 5 V
Colour:
417102276 Rev. 5-02.2020
