Section 2

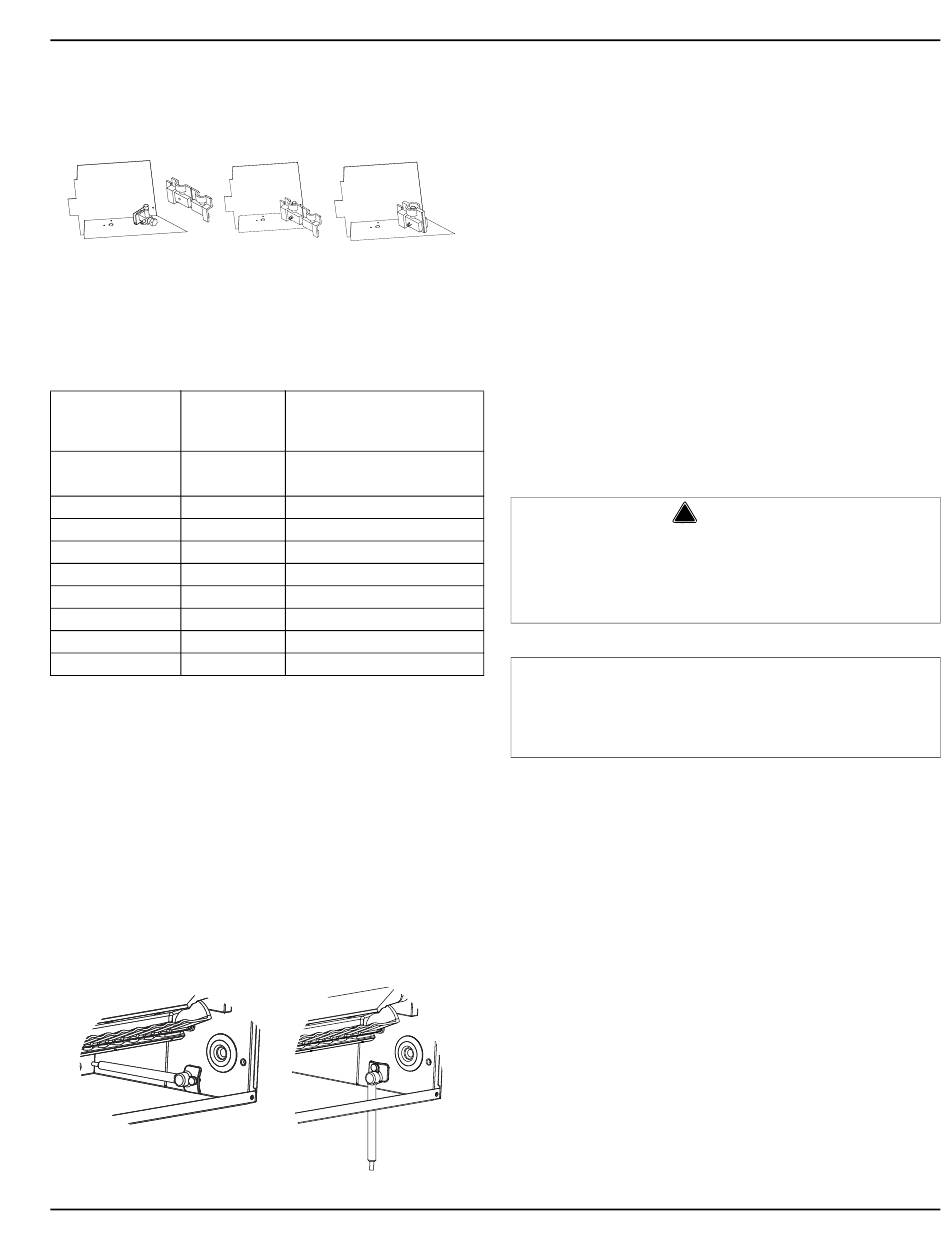

Suction Shut Off Valve Insulation
The pre-formed suction shut-off valve insulation is
located in the plastic bag taped to the water curtain.
ADDITIONAL REFRIGERANT CHARGE FOR 51' TO
100' (15.5 TO 30 METERS) LINE SETS
Additional refrigerant is required for the models listed
below when the line set length exceeds 50' (15 meters)
Condensing
Ice Machine
Unit
I0680C
ICVD0695
IB0690C
I0870C ICVD0895
IB0890C ICVD0895
I0970C ICVD0996
I1070C ICVD1095
IB1090C/I1176C ICVD1195
I1470C ICVD1495
I1870C ICVD1895
I2170C ICVD2095
POSITION BIN THERMOSTAT PROBE
IB690C/IB890C/IB1090C ONLY
The thermostat probe must be moved from the shipping
to ice making position.
• The bin thermostat probe must be rotated down to
enable ice contact and proper operation.
• The control requires programming see bin sensor
page 30
1. Loosen thumbscrew securing probe.
2. Rotate the probe from horizontal to vertical position.
3. Tighten thumbscrew.
Part Number 000007924 5/14
.
Additional Amount of
Refrigerant To Be Added
To Nameplate Charge
1.5 lbs - 680 g
4 lbs - 1814g
2 lbs - 907g
4 lbs - 1814g
2 lbs - 907g
2 lbs - 907g
2 lbs - 907g
2 lbs - 907g
4 lbs - 1814g

Before Starting the Ice Machine

All Manitowoc ice machines are factory-operated and
adjusted before shipment. Normally, new installations do
not require any adjustment.
To ensure proper operation, follow the Operational
Checks in Section 3 of this manual. Starting the ice
machine and completing the Operational Checks are the
responsibilities of the owner/operator.
Adjustments and maintenance procedures outlined in
this manual are not covered by the warranty.
• Set the date and time for your area and refer to the
Operation section to verify the control board settings
are correct for your customers location and
application.
• Remove the tape and two metal shipping brackets
from the ice thickness probe.
• Sanitize the ice machine and bin/dispenser.
!
Potential Personal Injury Situation
Do not operate equipment that has been misused.
abused, neglected, damaged, or altered/modified
from that of original manufactured specifications.
Important
Scroll refrigeration
operated for a minimum break in period of 24
hours before full ice production will be reached.
Installation
Warning
compressors must be
23
