Installation

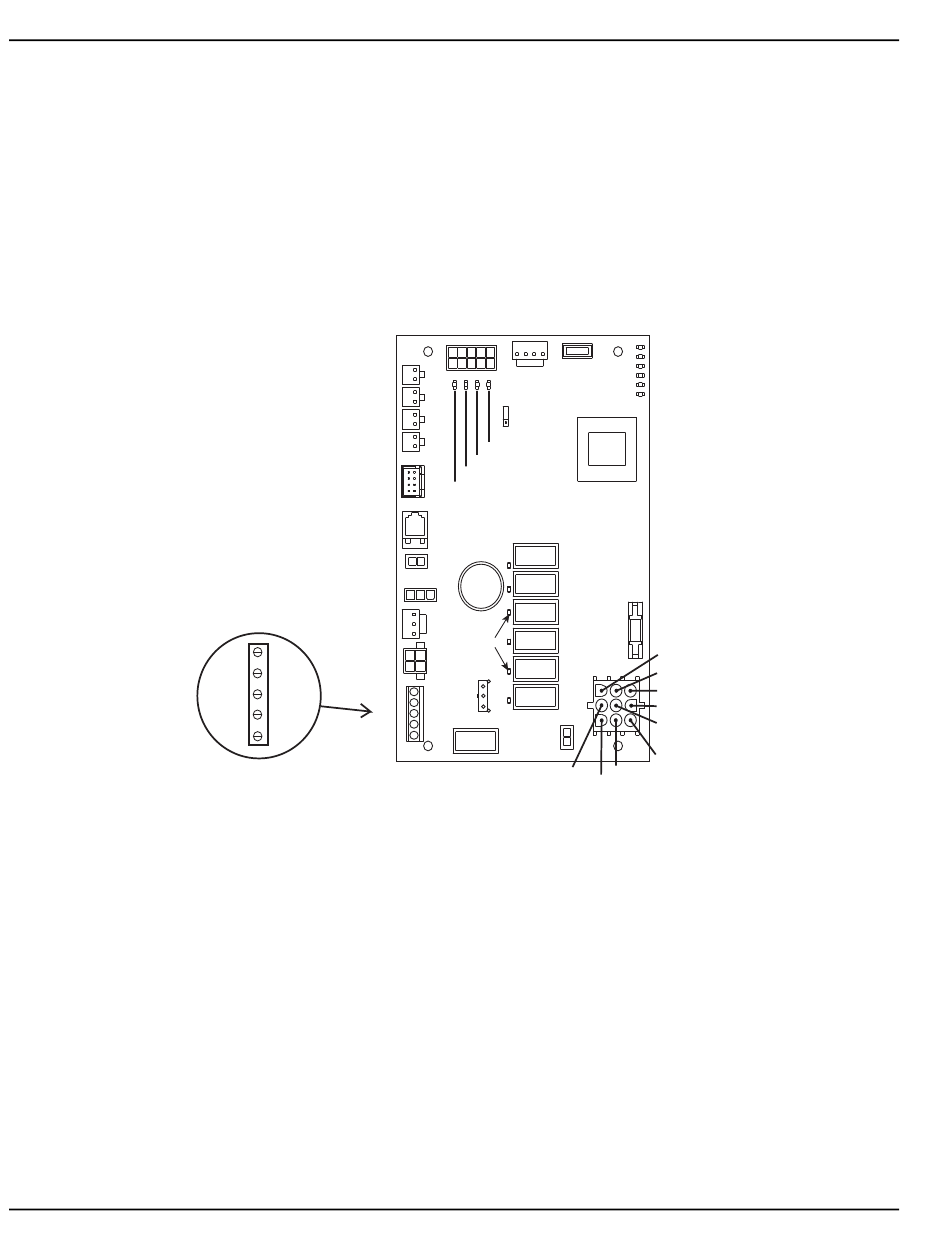

INTERCONNECTING WIRING
Indigo QuietQube ice machines require interconnecting low voltage wiring (included with Manitowoc line sets) to
energize the contactor coil and verify the LPCO & HPCO are closed. This circuit also initiates a time delay whenever
the LPCO or HPCO open. Failure to properly wire the ICVD condensing unit or ice machine head section will result in
a non-operational machine. Refer to the Indigo Technicians Handbook for normal operation and diagnostics for the
HPCO & LPCO controls. Connections on an RDI condensing unit are identical to the ICVD connections.
Wire Specifications:
• 18 AWG - 5 Conductor, Single Strand
• Plenum Rated
UL rated to 300 Volts
58
Thermistors
Route Wire With Lineset
Minimum Requirements
- 5 Conductor Single Strand
- 18 AWG Plenum Rated
- UL Rated to 300 Volts Bin LED
LuminIce
iCVD Condensing Unit Terminal Strip
Connect Wiring To Matching Terminal
On Ice Machine Control Board
V
C
Remote CVD
LPC
HPC1
HPC2
Bin
Bin Switches Thermostat
T1
T2
Dump Valve
T3
T4
Left Bin Switch Light
Right Bin Switch Light
Water Level Probe Light
Display
Ice Thickness Probe Light
RS485
RT Harvest
Compressor
Battery
LT Harvest
Water
Level
Probe
Pump
Relay Lights
AuCS
Water
Ice
V
Thickness
Dump
C
Probe
LPC
HPC1
HPC2 HPC
CVD
Contactor
Water Inlet Valve
USB
Display Light
Micro Light
Clean Light
Harvest Light
SL-1 Light
SL-2 Light
Transformer
Fuse
Water Pump
Compressor
L1
L2
Not Used
Right Harvest Valve
Left Harvest Valve
Dump Valve
Part Number 000007924 5/14
Section 2
