Maintenance
I1470C/I1870C/I2170C

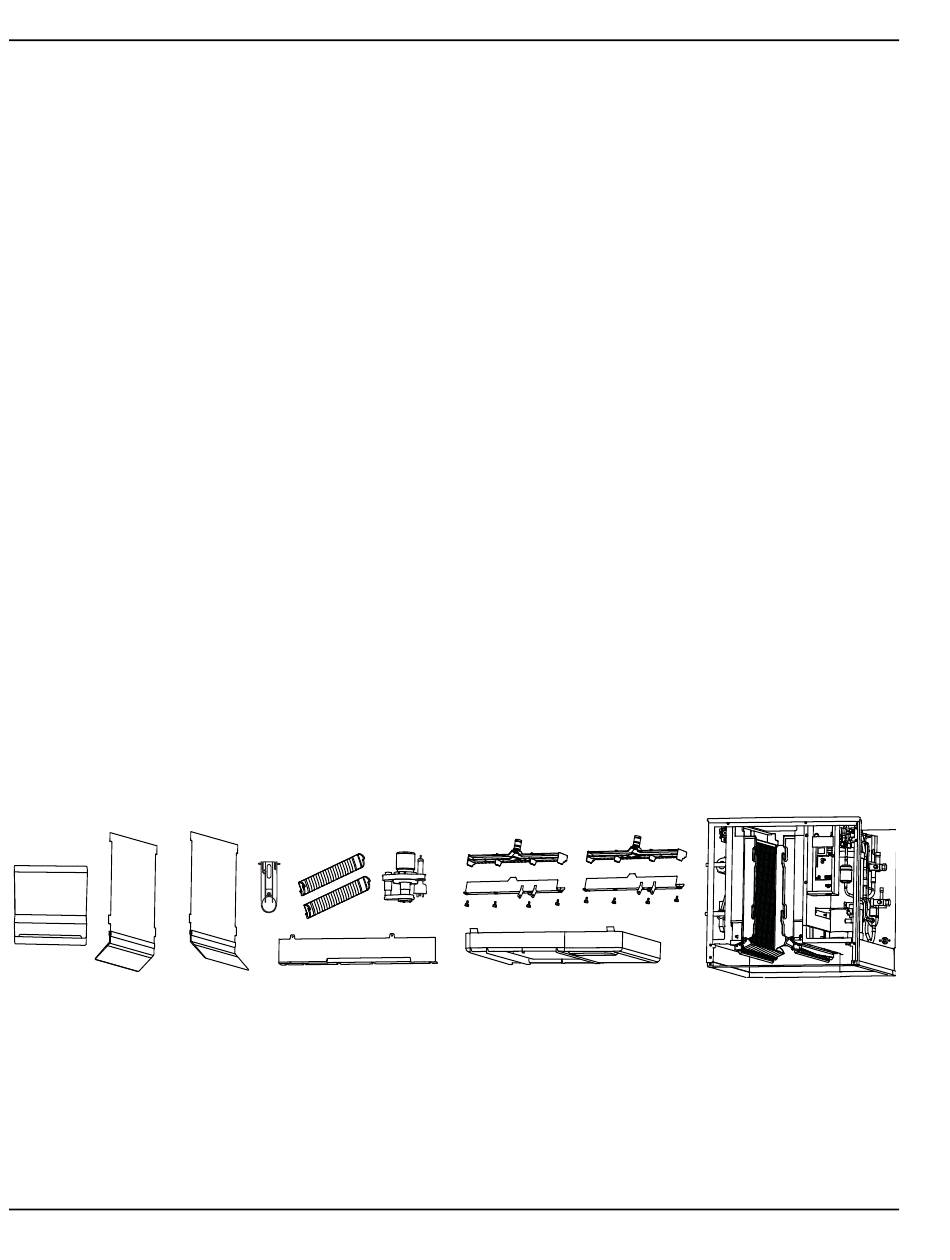

A. Remove splash shields
•
Grasp the top center of splash shields.
•
Lift up and then out.
B. Remove ice thickness probe
•
Compress the hinge pin on the top of the ice
thickness probe.
•
Pivot the ice thickness probe to disengage one pin
then the other. The ice thickness probe can be
cleaned at this point without complete removal. If
complete removal is desired, disconnect the ice
thickness control wiring from the control board.
C. Remove the water trough shield
•
Grasp the water trough shield in the center and the
left end.
•
Flex the water trough shield in the center and pull the
left end forward until clear of the side wall. Repeat for
the right end.
•
Pull water trough shield forward to remove.
D. Remove distribution tubes
•
Distribution tubes thumbscrews are retained to
prevent loss. Loosen thumbscrews but do not pull
thumbscrews out of distribution tube.
•
Loosen the two outer screws and pull forward on the
distribution tube to release from slip joint.
•
Disassemble distribution tube by loosening the two
(2) middle thumbscrews and dividing the distribution
tube into two pieces.
A
A
44
E
B
F
C
E. Remove ice dampers
•
Grasp ice damper and apply pressure toward the
back mounting bracket.
•
Apply pressure to the front mounting bracket with
thumb.
•
Pull ice damper downward when the front ice damper
pin disengages.
F. Remove the water pump assembly
•
Disconnect the vinyl distribution tube from the water
pump.
•
Disconnect the water pump and water level probe
electrical connections.
•
After the wires are disconnected squeeze the two
tabs and lift the water pump assembly out of the ice
machine.
•
Do not immerse the water pump motor in cleaner or
sanitizer solutions.
G. Remove the water trough
•
Depress the two tabs on the top of the water trough.
•
Turn left and right ice dampers down to clear water
trough.
•
Pull forward on the water trough to remove.
D
G
Section 4
Part Number 000007924 5/14
