ASSEMBLY PROCEDURE

Select the Carriage Slide and Rotary Base and Bevel Neck.

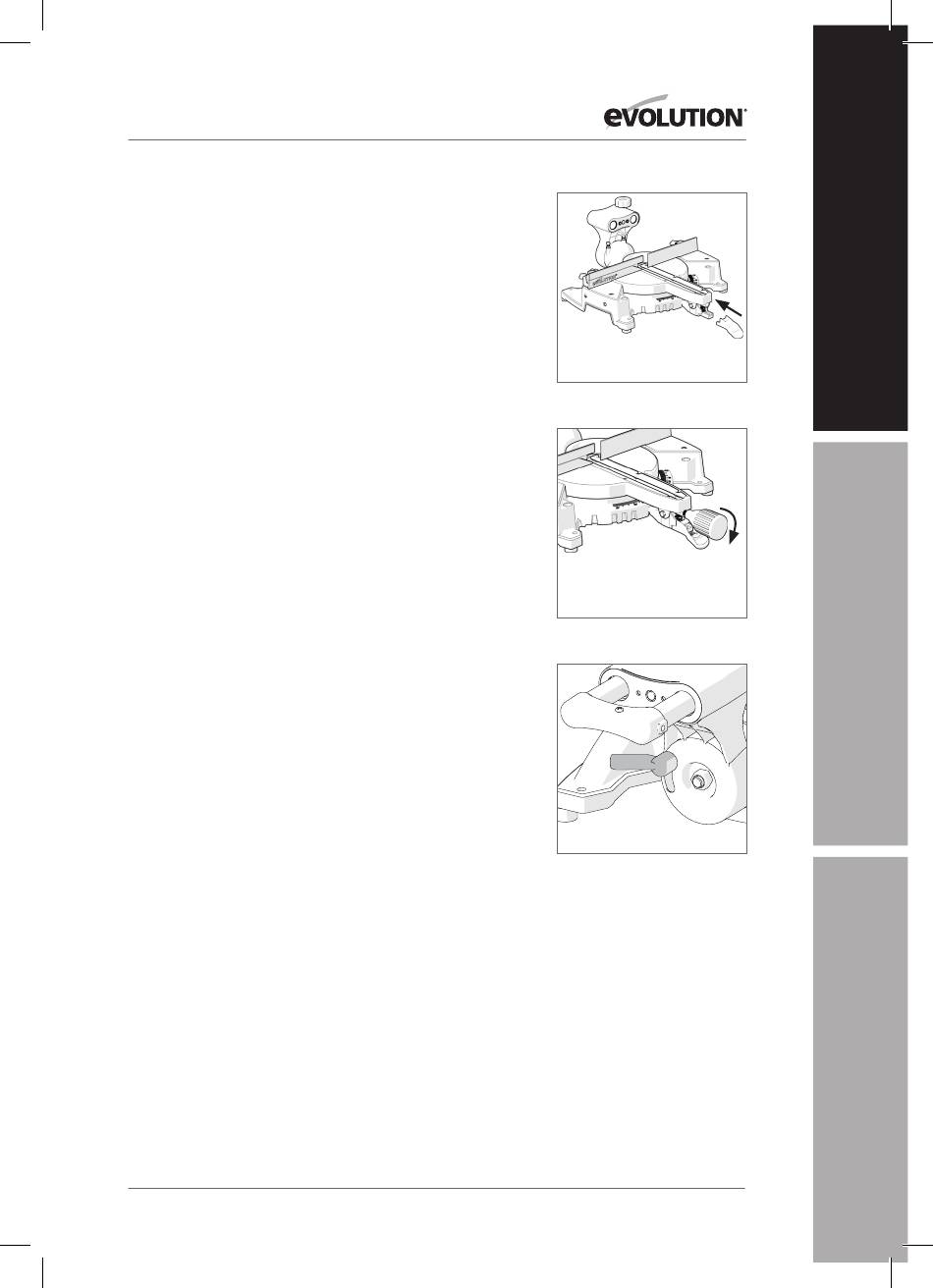

Fitting the Positive Stop Locking Lever
The Positive Stop Locking Lever pushes onto the lever
mechanism found just below the Mitre Locking Handle (Fig 3a)
Fitting the Mitre Locking Handle
The threaded rod of the Mitre Locking Handle slides into a
tunnel, or screws into a boss (according to type of machine
purchased) located just above the Positive Stop Locking Lever.
• Carefully insert the Mitre Locking Handle fully into the
Rotary Table Extension.
• Turn the Mitre Locking Handle clockwise to engage and
draw the Handle into the locking mechanism. (Fig. 3b)
• Tighten the Mitre Locking Handle securely to lock the
Rotary Table.
Adjusting the Bevel Neck to 0
The Bevel Neck is supplied fitted to the rotary base and tilted at a 45
angle to the left. Before the carriage slides are inserted into the Bevel
Neck, the Bevel Neck must be adjusted to the vertical position (0
• Slacken the Bevel Locking Handle. (Fig. 4)
• Rotate the Bevel Neck to the vertical position so that it is
against the 0 stop.
0
• Tighten the Bevel Locking Handle.
0
0
9
POSITIVE STOP
LOCKING LEVER
Fig. 3a
LOCKING HANDLE
Fig. 3b
0
).
Fig. 4
