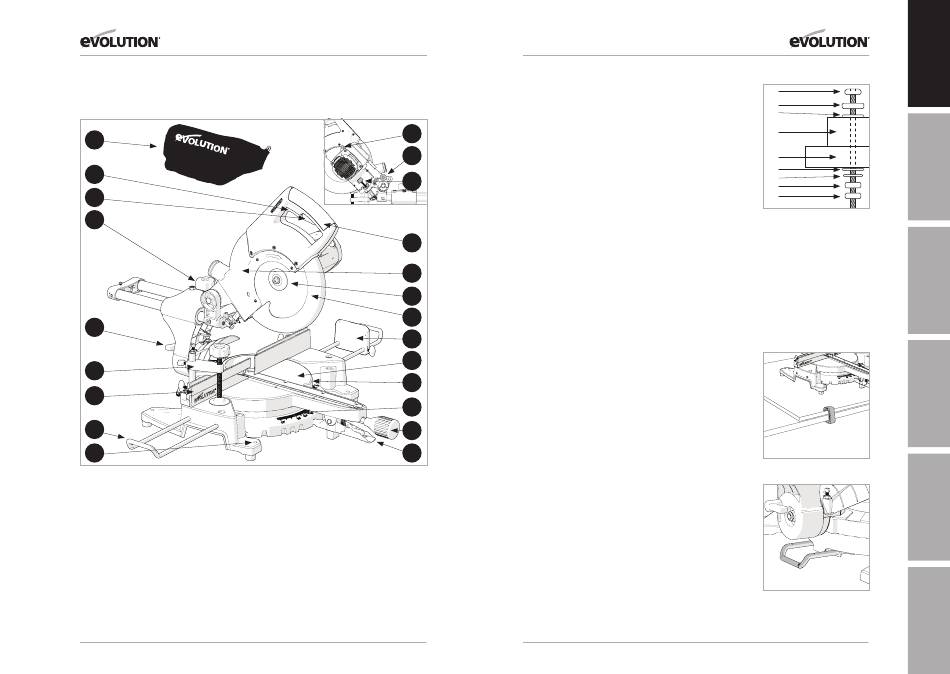

OVERALL ViEW OF MiTRE SAW
4
1
2
10
11
18
17
15
19
1. ON/OFF TRIGGER SWITCH
2. LOCK-OFF BUTTON
3. CUTTING HANDLE
4. DUST BAG (Optional Accessory)
5. ROTARY TABLE
6. TABLE TOP
7. LOWER BLADE GUARD
8. UPPER BLADE GUARD
9. BLADE
10. SLIDE LOCKING SCREW
11. BEVEL LOCK LEVER
14
www.evolutionpowertools.com
20
21
22
3
8
9
7
16
6
5
13
12
14
12. MITRE HANDLE
13. MITRE ANGLE SCALE
14. POSITIVE STOP LOCKING LEVER
15. WORKPIECE SUPPORT (Optional Accessory)
16. REPEAT END STOP (Optional Accessory)
17. FENCE
18. HOLD DOWN CLAMP
19. MOUNTING HOLE (x 4)
20. ARBOR LOCK BUTTON
21. HEAD LATCHING PIN
22. DEPTH GAUGE
www.evolutionpowertools.com
(7.1)

ASSEMBLY AND pREpARATiON

WARNiNG:
Always disconnect the saw from the power
source before making any adjustments.
Note: It is recommended that all instructions are always read
before operating.
(7.2)
permanently mounting the mitre saw
To reduce the risk of injury from unexpected saw movement,
place the saw in the desired location either on a workbench
or other suitable machine stand. The base of the saw has four
mounting holes through which suitable bolts (not supplied)
can be placed to secure the miter saw. If the saw is to be used
in one location, permanently fasten it to the workbench using
appropriate fastenings (not supplied). Use locking washers and
nuts on the underside of the workbench. (Fig. 1)
• To avoid injury from flying debris, position the saw so that
other people or bystanders cannot stand too close (or
behind) it.
• Locate the saw on a firm, level surface where there is plenty
of room for handling and properly supporting the workpiece.
• Support the saw so the machine table is level and the saw
does not rock.
• Bolt or clamp the saw securely to its support stand or
workbench.
(7.3)
For portable use:
• Mount the saw on a 18mm thick piece of plywood or MDF
(800mm x 500mm min size recommended) using appropriate
fastenings (not supplied).
• It may be necessary to countersink the washers, nuts, etc. to
the underside of the plywood or MDF mounting board to
avoid an uneven work surface.
• Use G-clamps to attach the mounting board to the work
surface. (Fig. 2)
Note: Some machines are fitted with a rear stabilizing arm
found just below the Bevel Pivot.
If so fitted, this arm should be deployed/withdrawn from the
base, particularly if the machine is to be used free standing on a
work bench. (Fig. 3)
15
EN
1
2
3
4
5
DE
6
7
8
9
Fig. 1
1) Hex headed bolt
2) Spring washer
3) Flat washer
4) Mitre saw base
FR
5) Workbench
6) Flat washer
7) Spring washer
8) Hex nut
9) Lock nut
IT
Fig. 2
JP
Fig. 3
NL
