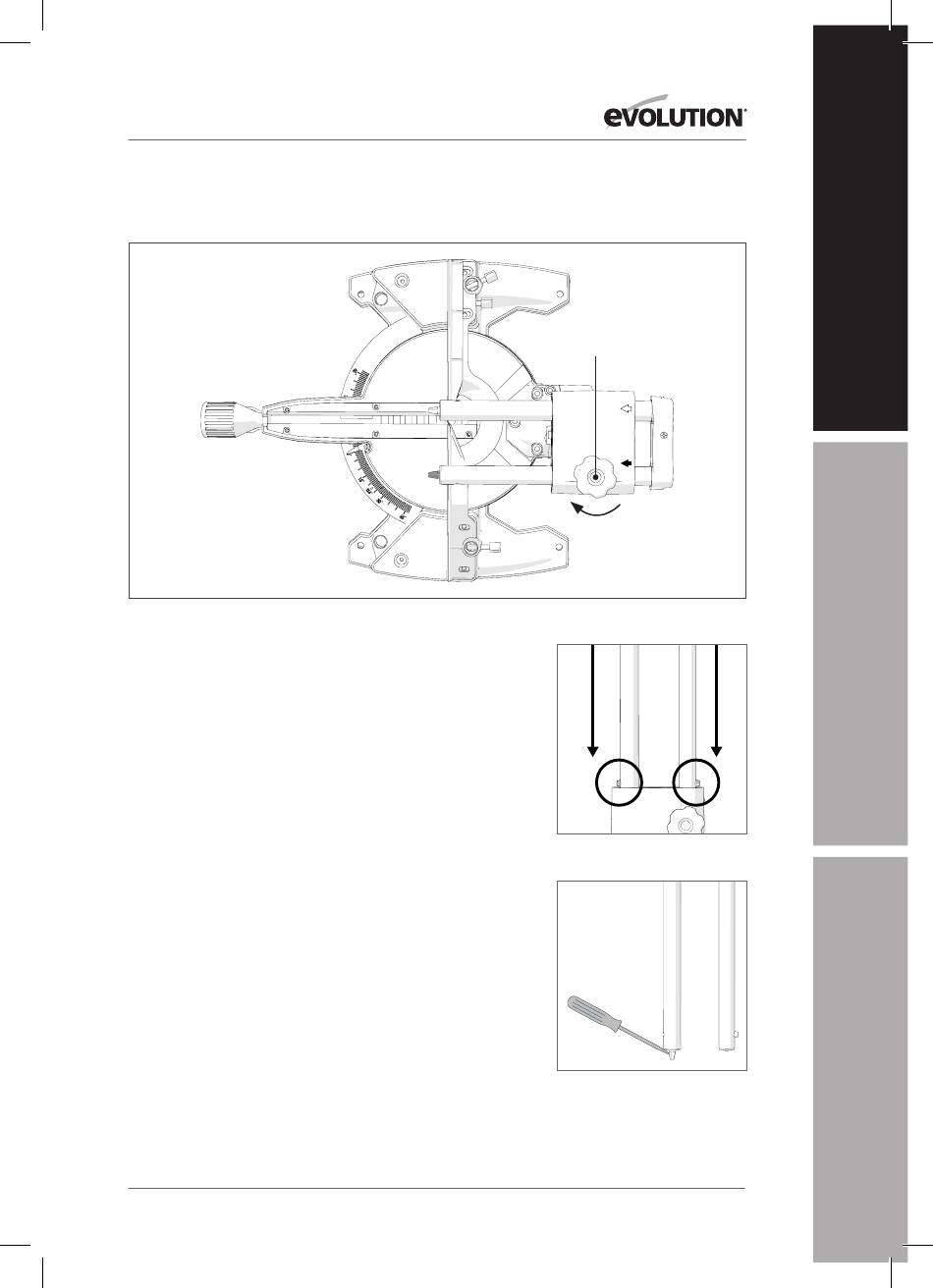

• Lock the Sliding Carriage Arms into position using the
Sliding Carriage Locking Screw. (Fig. 7)
Note: If for any reason (transit damage, unpacking error,
operator mistake etc.) the locating lugs have been tripped
(Fig. 8) the Sliding Carriage cannot be fitted into the
Bevel Neck or onto the Cutting Head until they are reset.
To reset the locating lugs:
• Gently push down on the tripped locating lug.
• Gently ease the locating lug deployment plunger forward
using a flat bladed screwdriver (not supplied). (Fig. 9)
Sliding Carriage
Locking Screw
Lock
Fig. 7
Fig. 8
Fig. 9
