Evolution Rage 3 Guide D'assemblage page 8

SPACER
SHORT MITRE
LOCKING HANDLE
LONG MITRE
LOCKING
HANDLE
Fig. 2a
Fig. 2b
ANTI-VIBRATION SPRING
Fig. 2c

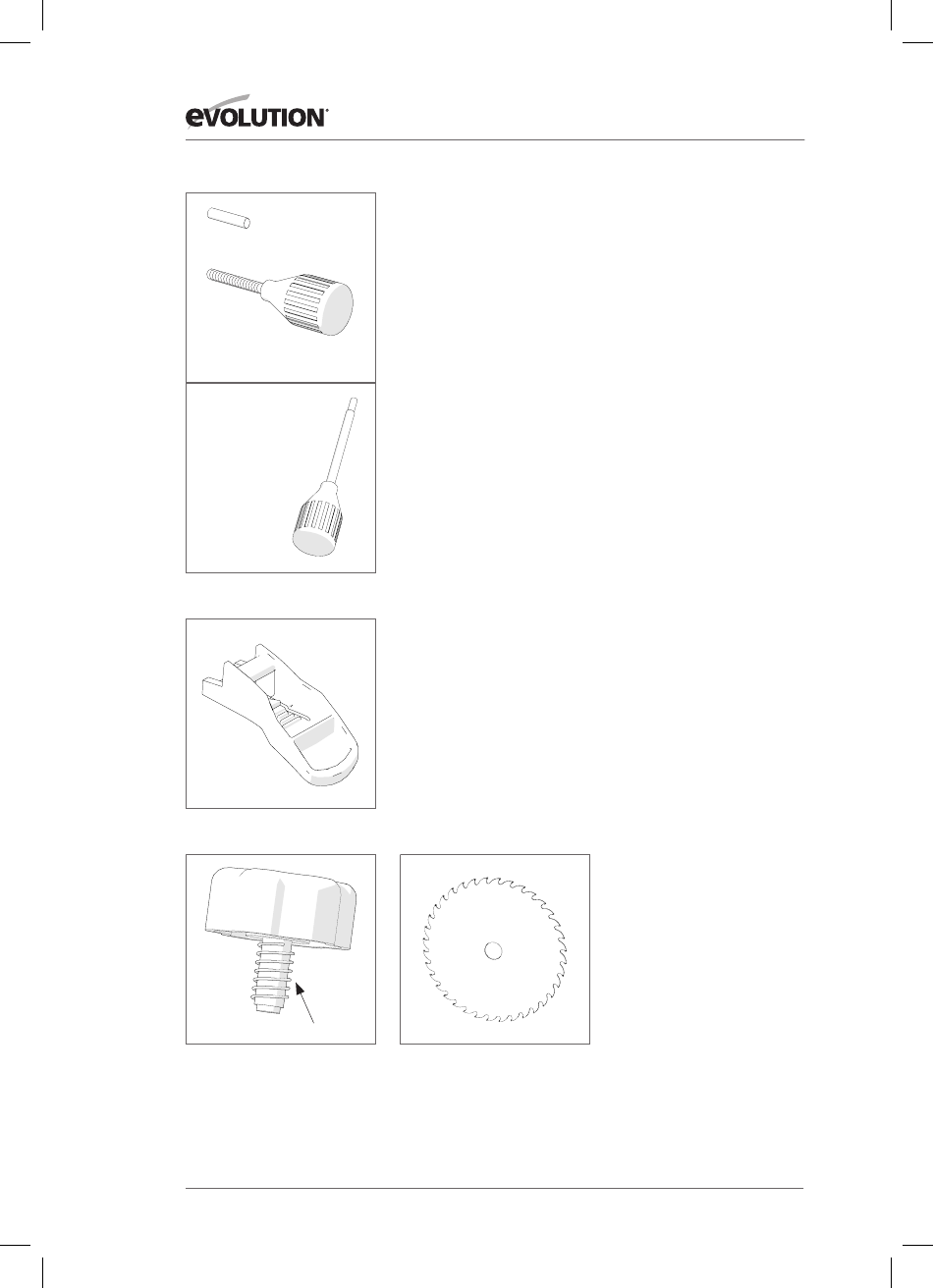

Also to be fitted are:
• The Mitre Locking Handle. (Fig. 2a)
• The Positive Stop Locking Lever. (Fig. 2b)
• The Slide Locking Screw and anti-vibration spring (Fig. 2c)
• The Blade. (Fig. 2d)
Note: One of two types of Mitre Locking Handle will be
supplied, according to the machine purchased. Only the
short mitre locking handle requires the spacer.
(Fig. 2a) Fit the spacer over the threaded mitre locking
handle before installation. (Short mitre locking handled
machines only)
WARNING: The blade is the last part to be fitted. It must only
be fitted after the assembly process is completed and the mitre
saw has passed the Assembly Safety Checks.
See Assembly Safety Checks list on page 16.
Fig. 2d
