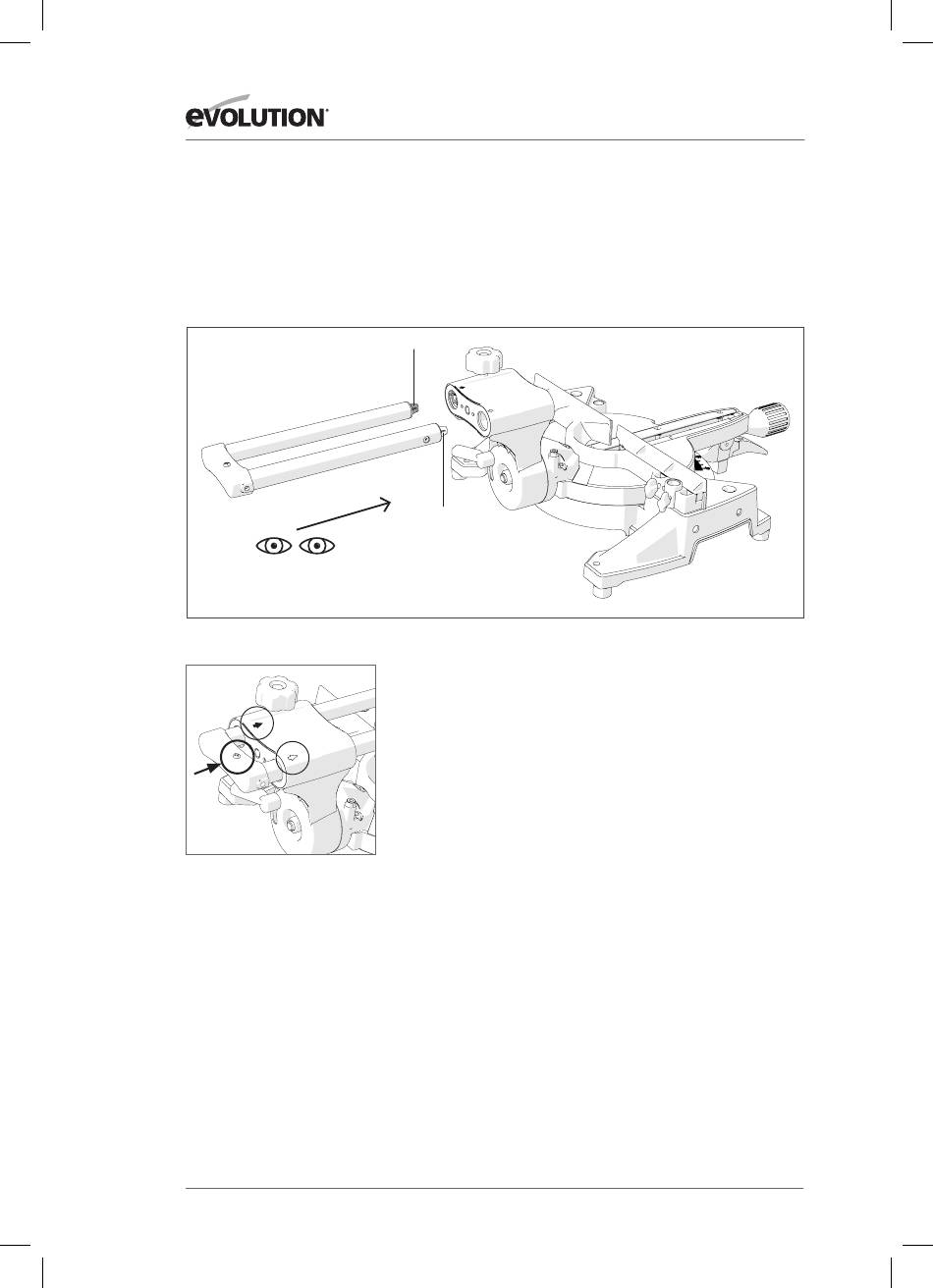

INSERTING THE CARRIAGE SLIDE

The Carriage Slides two arms should be inserted into the
two linear bearings in the Bevel Neck. From the BACK of the
machine the red lug should be to the left and the white lug
should be to the right. (Fig. 5)
Red
White
To aid correct assembly note that the individual arms of the
slide are colour coded, red for the Left Hand arm (as seen from
the back of the machine) and white for the Right Hand arm.
The linear bearings are likewise colour coded.
WARNING: Read steps associated with
Figs 4, 5, 6 and 7 before proceeding.
For accuracy of assembly the two (2) arms of the Carriage Slide
are not the same diameter. Each arm has a dedicated linear
bearing in the Bevel Neck.
Ensure that the Carriage Slide is inserted into the Bevel Neck the
correct way round with the cable clip attachment position on
the back support bracket pointing upwards. (Fig. 6)
• Slide the Sliding Carriage arms through the Bevel Neck for
approximately half of their length.
• Insert the Sliding Carriage Locking Screw into the threaded
hole in the Bevel Neck, ensuring that the anti-vibration spring
is fitted underneath the hand knob.
