ASSEMBLY AND PREPARATION
(7.1)
WARNING: Always disconnect the saw
from the power source before making any
adjustments.
Some minor assembly is required to commission
this machine.
By assembling this machine the owner/operator
will gain valuable insight into its many advanced
features. This should enable the operator to
exploit the machines full potential once it is
commissioned.
Note: Study the diagrams showing
the assembled machine. You will gain valuable
insight which will help you with
the assembly process.
TOOLS NEEDED FOR
ASSEMBLY & ADJUSTMENTS
Hex Key – Supplied and located in a dedicated
storage position on the machine. (Fig. 1)
Flat Bladed Screwdriver – Not supplied.
10mm Spanner – Not supplied.
5mm Hex Key – Not supplied.
Pliers - Not supplied.
Note: The assembly process is a 'one
time assembly' .
Once assembly is successfully completed no
attempt to disassemble the machine should be
made.
The blade and some other smaller parts also need
to be fitted by the owner/operator.
Note: A safety check must be carried out once
assembly is completed and before the machine is
used - see page 33.
www.evolutionpowertools.com

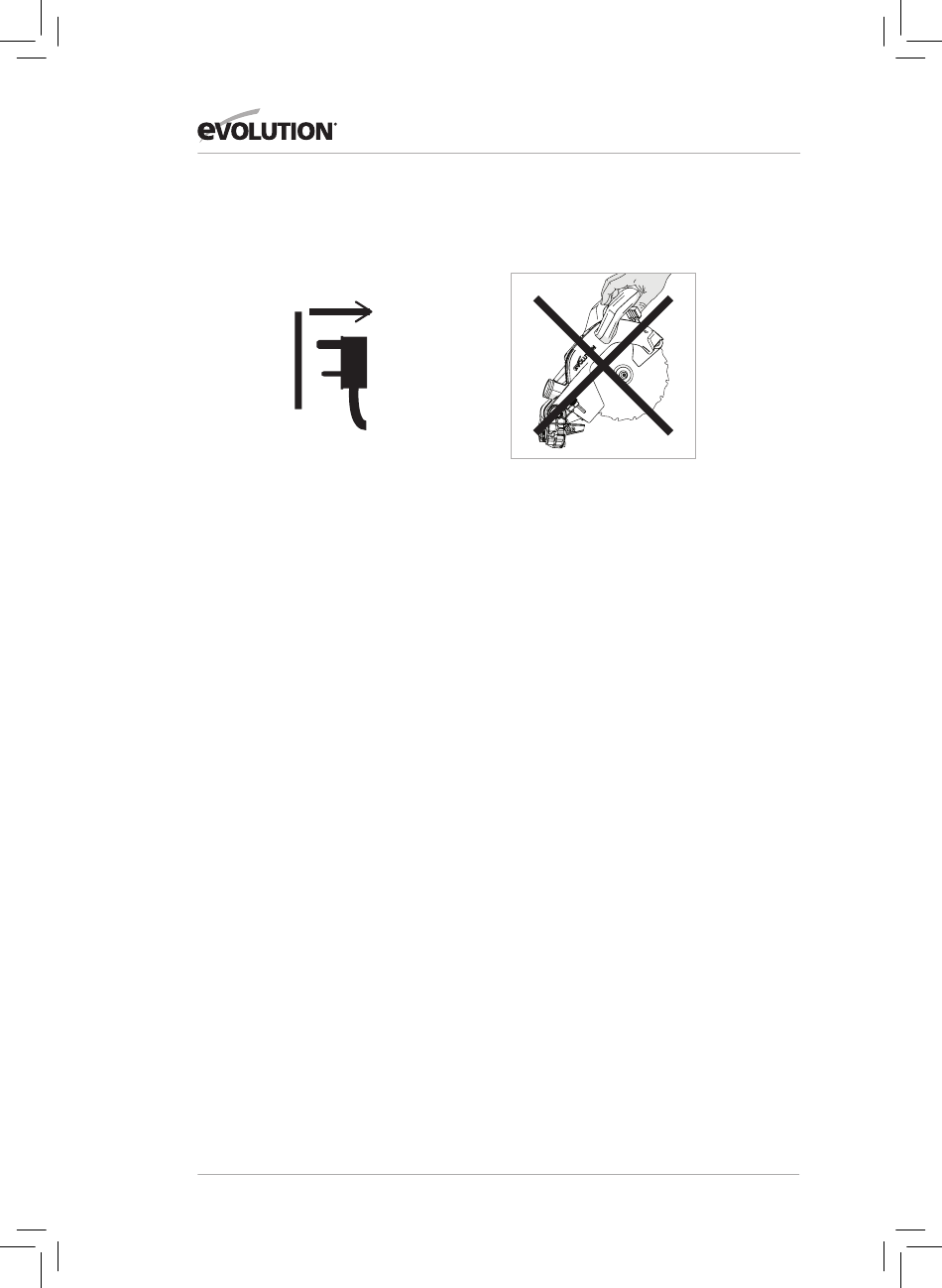

WARNING: Do not under any circumstances plug
the cutting head into the power supply and try
to use it as a hand held circular saw.
KNOW THE PARTS
There are four (4) main parts to be assembled
(including the blade), and two (2) other smaller
parts to be connected. Additionally the blade
(supplied) will need to be fitted.
• The rotary base and bevel neck (Fig. 2)
• The carriage slides (Fig. 3)
• The cutting head (In The 'locked down Position as
Removed from the Packaging) (Fig. 4)
• The Blade (Fig. 5)
Note: The Blade should be the last part to be fitted.
It must only be fitted after the assemble process is
completed and the machine has been subjected to
the Assembly Safety Checks - see page 33.
THE MITRE LOCKING KNOB
The threaded spigot of the Mitre Locking Knob
slides through a hole in the front of the Mitre
Locking Handle (Fig. 7) and then screws into an
internally threaded boss located in the base of the
machine.
THE BEVEL NECK
The bevel neck is supplied fitted to the Rotary table.
INSERTING THE CARRIAGE SLIDE
IMPORTANT: If for any reason (transit damage,
unpacking error, operator mistake, etc.) the locating
lugs at the tip of the carriage slide arms have been
'tripped' , the sliding carriage cannot be fitted
into the bevel neck or onto the cutting head. The
locating lugs (Fig. 8) must be reset, if either or both
have been 'tripped' prematurely.
22
(Fig. 6)
