ASSEMBLY AND PREPARATION

WARNING: Always remove the battery from the
machine before making any adjustments.
Some minor assembly is required to commission this
machine. By assembling this machine the owner/operator
will gain valuable insight into its many advanced features.
This should enable the operator to exploit the machines full
potential once it is commissioned.
Note: Study the diagrams showing the assembled machine.
You will gain valuable insight which will help you with the
assembly process.

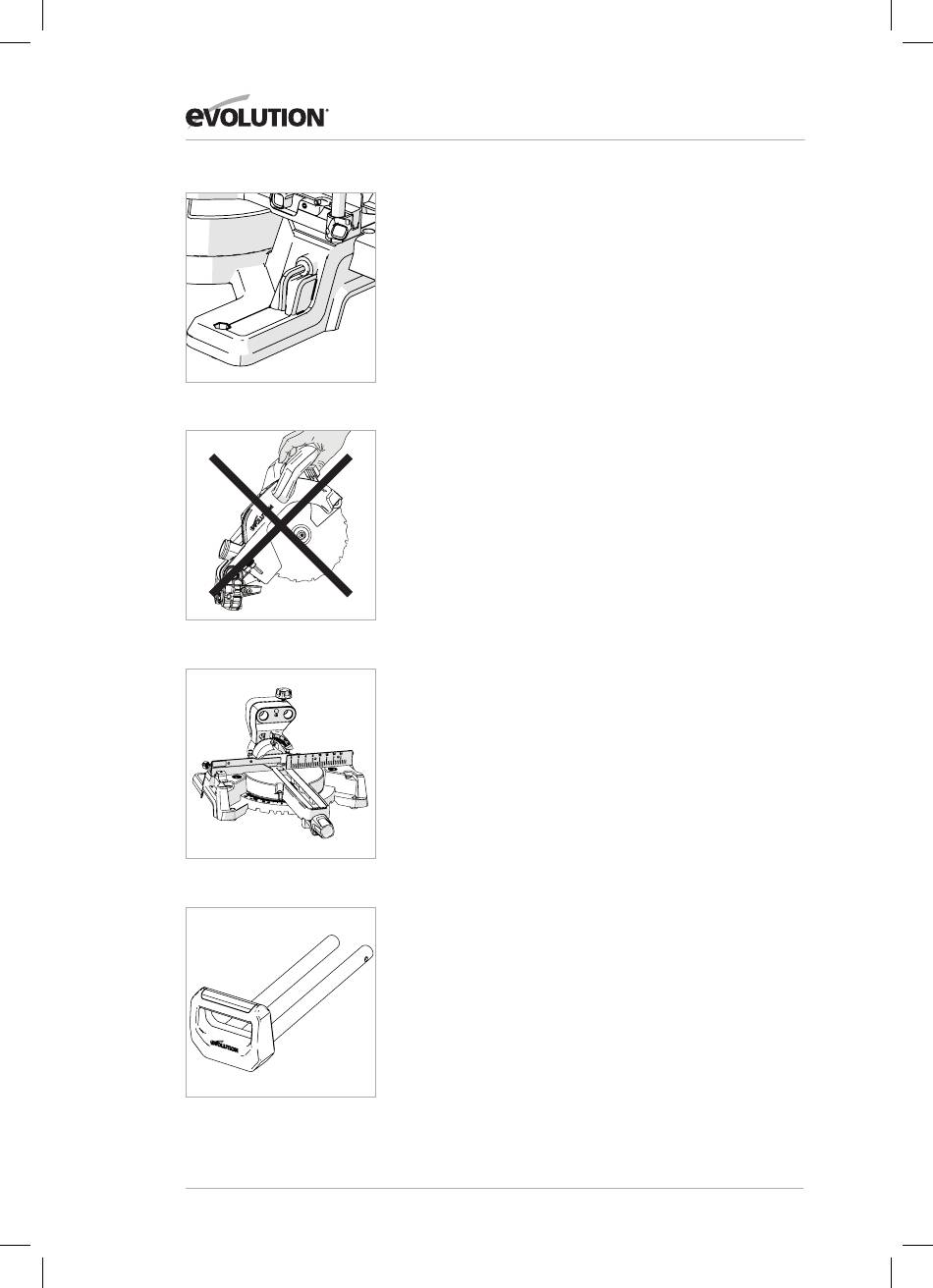

TOOLS NEEDED FOR ASSEMBLY & ADJUSTMENTS
Hex Key – Supplied and located in a dedicated storage
position on the machine. (Fig. 1)
Flat Bladed Screwdriver – Not supplied.
10mm Spanner – Not supplied.
5mm Hex Key – Not supplied.
Pliers - Not supplied.
Note: The assembly process is a 'one time assembly' .
Once assembly is successfully completed no attempt to
disassemble the machine should be made. The blade and
some other smaller parts also need to be fitted by the owner/
operator.
Note: A safety check must be carried out once assembly is
completed and before the machine is used - see assembly
safety checks.
WARNING: Do not under any circumstances insert the
battery and try to use the cutting head as a hand held
circular saw. (Fig.2)

KNOW THE PARTS

There are four main parts to be assembled (including
the blade), and two other smaller parts to be connected.
Additionally the blade (supplied) will need to be fitted.
• The rotary base and bevel neck (Fig. 3)
• The carriage slides (Fig. 4)
• The cutting head (In The 'locked down Position as Removed
from the Packaging) (Fig. 5)
• The Blade (Fig. 6)
Note: The Blade should be the last part to be fitted. It must
only be fitted after the assemble process is completed and
the machine has been subjected to the Assembly Safety
Checks - see assembly safety checks.
