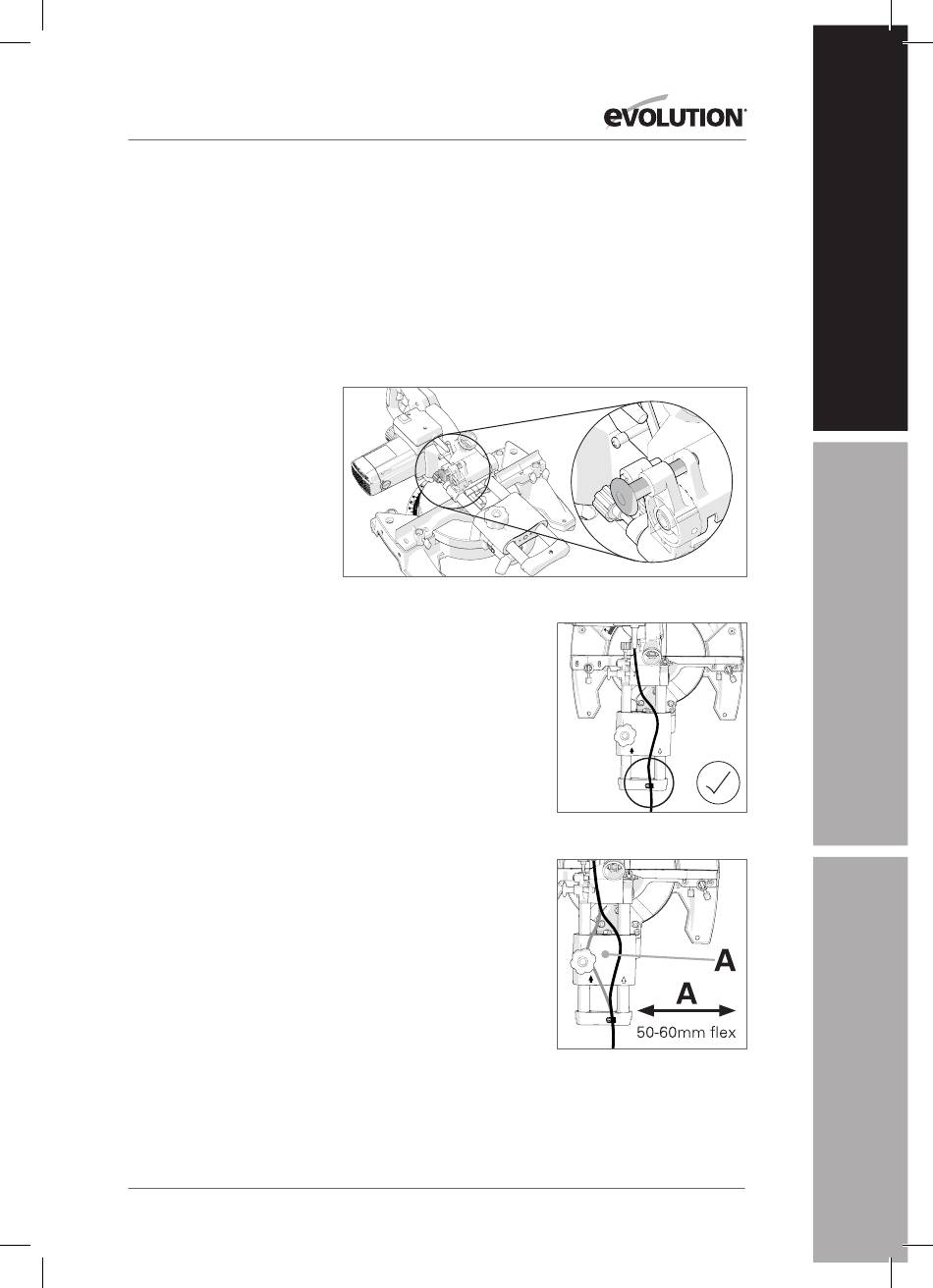

ROUTING THE POWER CABLE

WARNING: The power cable must not be allowed to fall
through or between the two arms of the Slide Carriage.
The cable could be damaged if it becomes trapped by
any of the machines moving parts.
Ensure that the Cutting Head is in the locked down position
with the Cutting Head Latching Pin fully engaged in its socket.
(Fig. 12)
Attach the power cord to the back support bracket using the
screw, washer and cable clip (found on the power cable). (Fig. 13)
The power cable must not be stretched or taut between the
Cutting Head and the attached rear cable clip.
Deflection at the midpoint of the cable should be 50-60mm.
(Fig. 14) This will give sufficient 'slack' in the cable to allow the
Cutting Head to rise and lower and still retain correct and safe
cable routing.
Fig. 12
Fig. 13
Fig. 14
