ASSEMBLY AND PREPARATION

To install/remove the battery
To install the battery insert firmly into the tool until you
hear an audible click, ensuring the battery is fully seated
and latched into position.
To remove the battery depress the battery release button
and pull the battery out of the tool.
WARNING: Always remove the battery from the
machine before making any adjustments.

PERMANENTLY MOUNTING THE MITRE SAW

To reduce the risk of injury from unexpected saw
movement, place the saw in the desired location either on
a workbench or other suitable machine stand. The base of
the saw has four mounting holes through which suitable
bolts (not supplied) can be placed to secure the mitre saw.
If the saw is to be used in one location, permanently fasten
it to the workbench using appropriate fastenings (not
supplied). Use locking washers and nuts on the underside
of the workbench (Fig. 1).
• To avoid injury from flying debris, position the saw so
that other people or bystanders cannot stand too close
(or behind) it.
• Locate the saw on a firm, level surface where there is
plenty of room for handling and properly supporting
the workpiece.
• Support the saw so the machine table is level and the
saw does not rock.
• Bolt or clamp the saw securely to its support stand or
workbench.
Note: These machines are fitted with a rear stabilising arm
found just below the bevel pivot.
If so fitted, this arm should be extended from the base,
particularly if the machine is to be used free standing on a
work bench (Fig. 2).
This arm will provide extra stability to prevent the machine
from tumbling in the event of sudden release of the
cutting head.
www.evolutionpowertools.com
(1)
(2)
(3)
(4)
(5)
(6)
(8)
(9)

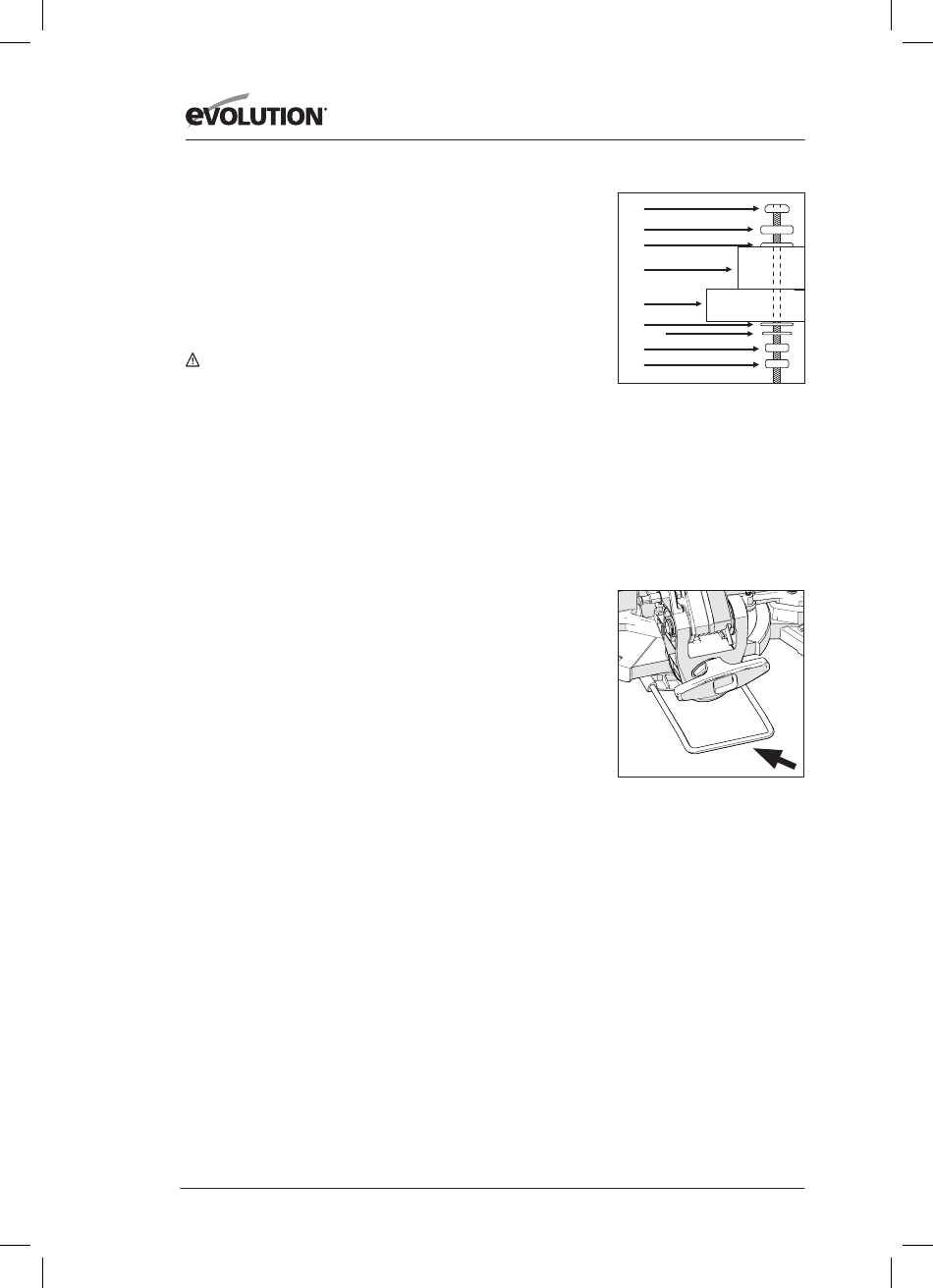

Fig. 1
(1) Hex headed bolt
(2) Spring washer
(3) Flat washer
(4) Mitre saw base
(5) Workbench
(6) Flat washer
(7) Spring washer
(8) Hex nut
(9) Lock nut
Fig. 2
12
(7)
