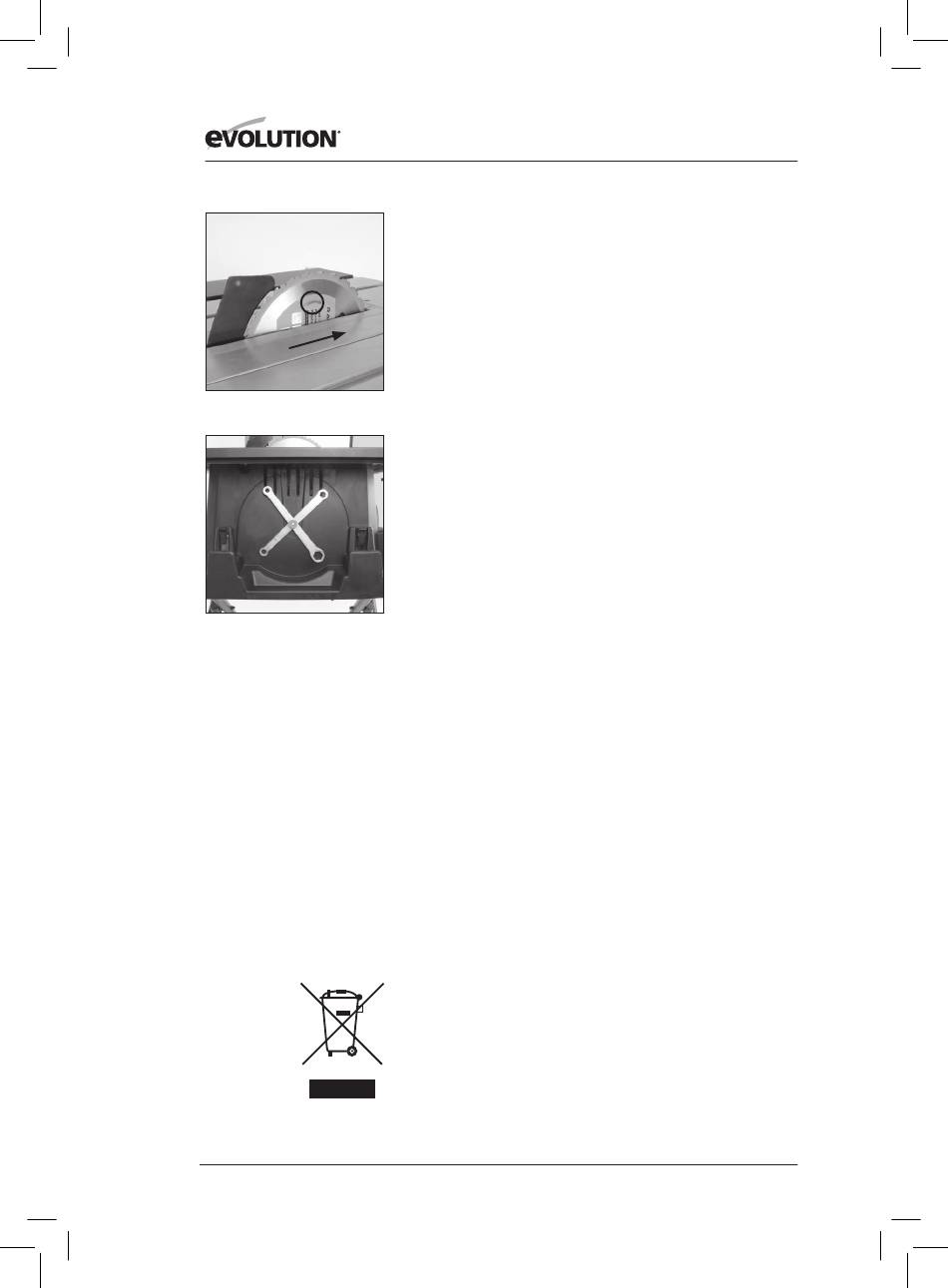

Fig. 50
Fig. 51
• Fit the new blade. Ensure that the teeth are facing to the
front of the saw, and that the arrow on the blade is in line
with the motor direction (Fig. 50).
• Replace the outer flange and nut and tighten securely with
the spanners provided. Check that both blade flanges are in
contact with the blade.
• Replace the access plate and its fixing screw. Ensure that the
fixing screw is correctly seated.
• Replace the Blade Guard and check all operational
functions of the blade and its guarding system.
• Only connect the machine to its main supply after a
complete safety check of the machine has been carried out.
THE RIVING KNIFE
The riving knife is a very important component and must be
fitted correctly aligned and adjusted. The riving knife prevents
the work from binding as it passes through the blade.
Inspect the riving knife at regular intervals and replace it if it is
worn or damaged.
Note: Use only a genuine Evolution Riving Knife, as this is a
dedicated component for this machine. Non genuine parts could
be dangerous. If in any doubt, please contact the Helpline.
CLEANING
After each use the machine should be cleaned. Remove all
sawdust, etc. from the visible parts of the machine with a
vacuum cleaner. A vacuum cleaner can also be connected to
the machine dust extraction port at the rear of the machine.
This should remove debris from the inside of the machine.
Never use solvents to clean plastic parts, as solvents can
damage them. Clean only with a soft very slightly damp cloth.

TOOL STORAGE

A tool storage facility is available at the LH side of the machine
(Fig. 51). Undo the centre hand nut and place the blade
changing tools onto the metal flange. Secure the tools with
the centre finger nut.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
