Evolution RAGE5-S Instructions D'origine page 16

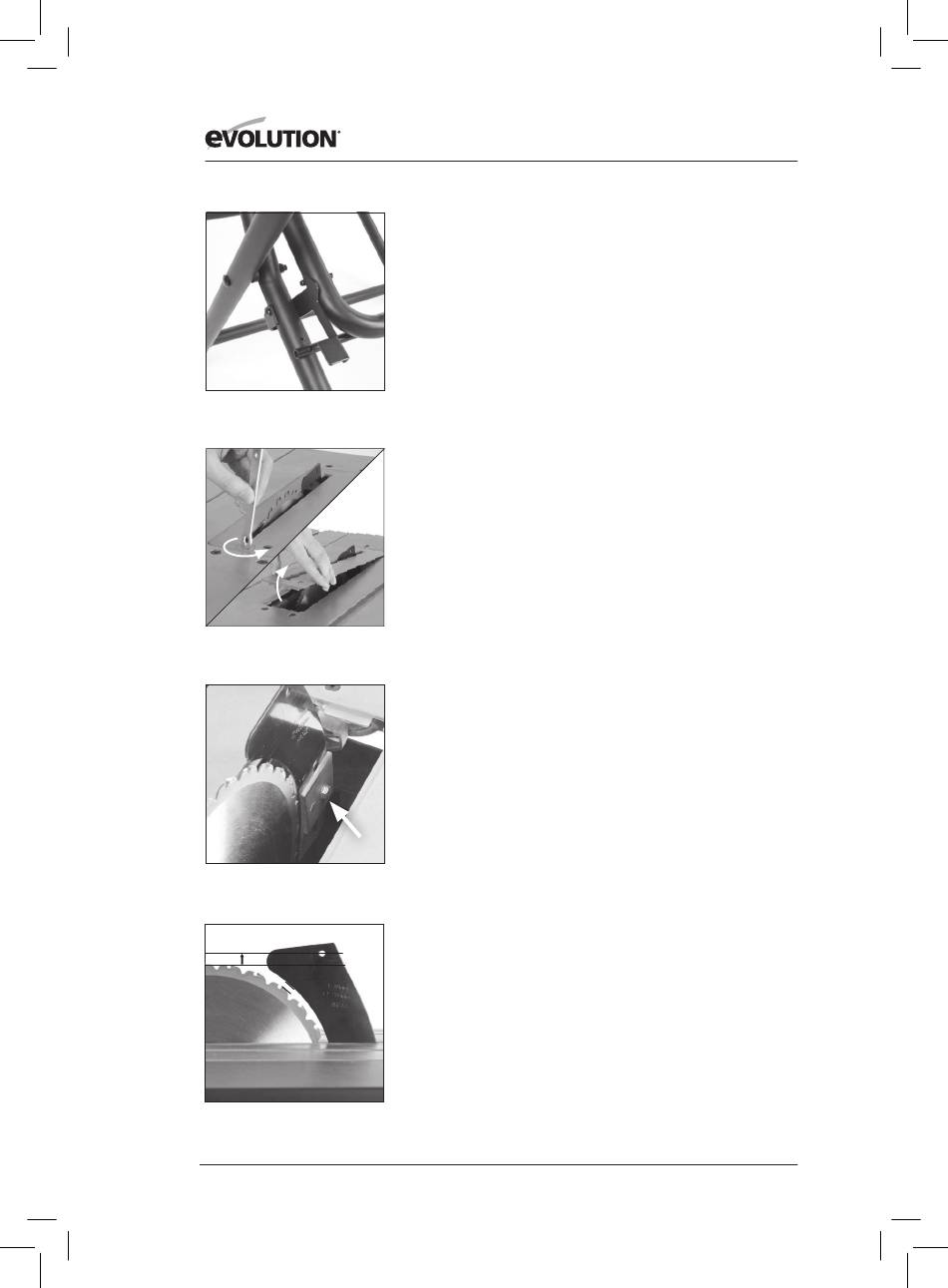

Fig. 13
1.
2.
Fig. 14
Fig. 15
10 mm
3 - 5mm
Fig. 16
Some further minor assembly is required to commission this
machine.
WARNING: This machine is heavy. Enlist competent help when
removing this machine from its packaging.
DEPLOYING THE LEGS
The legs are stored underneath the machines main body.
• Release the retaining latch (Fig 13).
• Deploy the legs.
• Ensure that the legs are secured into their service position.
• The latch must deploy and lock the legs securely in their
service position.
Note: This machine is heavy. Competent help should be
enlisted when moving this machine. Competent help may also
be required when deploying the leg assembly and/or storing
the leg assembly underneath the machine.
THE RIVING KNIFE
The Riving Knife is a very important component, and must be
fitted correctly.
The Riving Knife has two functions:
• It prevents the work-piece from binding as it passes through
the blade.
• It provides a suitable connection point for the blade guard.
To fit and/or check the Riving Knife:
WARNING: Ensure that this procedure is only carried out with
the machine disconnected from the mains supply.
• Remove the Table Access Plate by turning the fixing screw
¼ of a turn. Lift the Access Plate from the machine (Fig. 14).
Carefully store this component for later use.
• Raise the blade to its highest position - See page 21
'RAISING/LOWERING THE BLADE' section.
• Loosen the Riving Knife fixing bolt by several turns and raise
it to its highest point (Fig. 15).
• Slide the Riving Knife (it is slotted for convenience) between
the fixing plate and mounting block (Fig. 15). Ensure that the
mounting blocks projecting lugs engage with the slot in the
Riving Knife.
• Adjust the Riving Knife so that it is between 3 – 5mm from
the saw blade. The blade guard mounting hole on the riving
knife should be at least 10mm higher than the tooth peak.
(Fig. 16).
• When correct alignment is achieved tighten the fixing bolt.
• Check the saw blade rotates freely and teeth are within
3 - 5mm of the Riving Knife.
• Re-install the Table Access Plate.
16
www.evolutionpowertools.com
