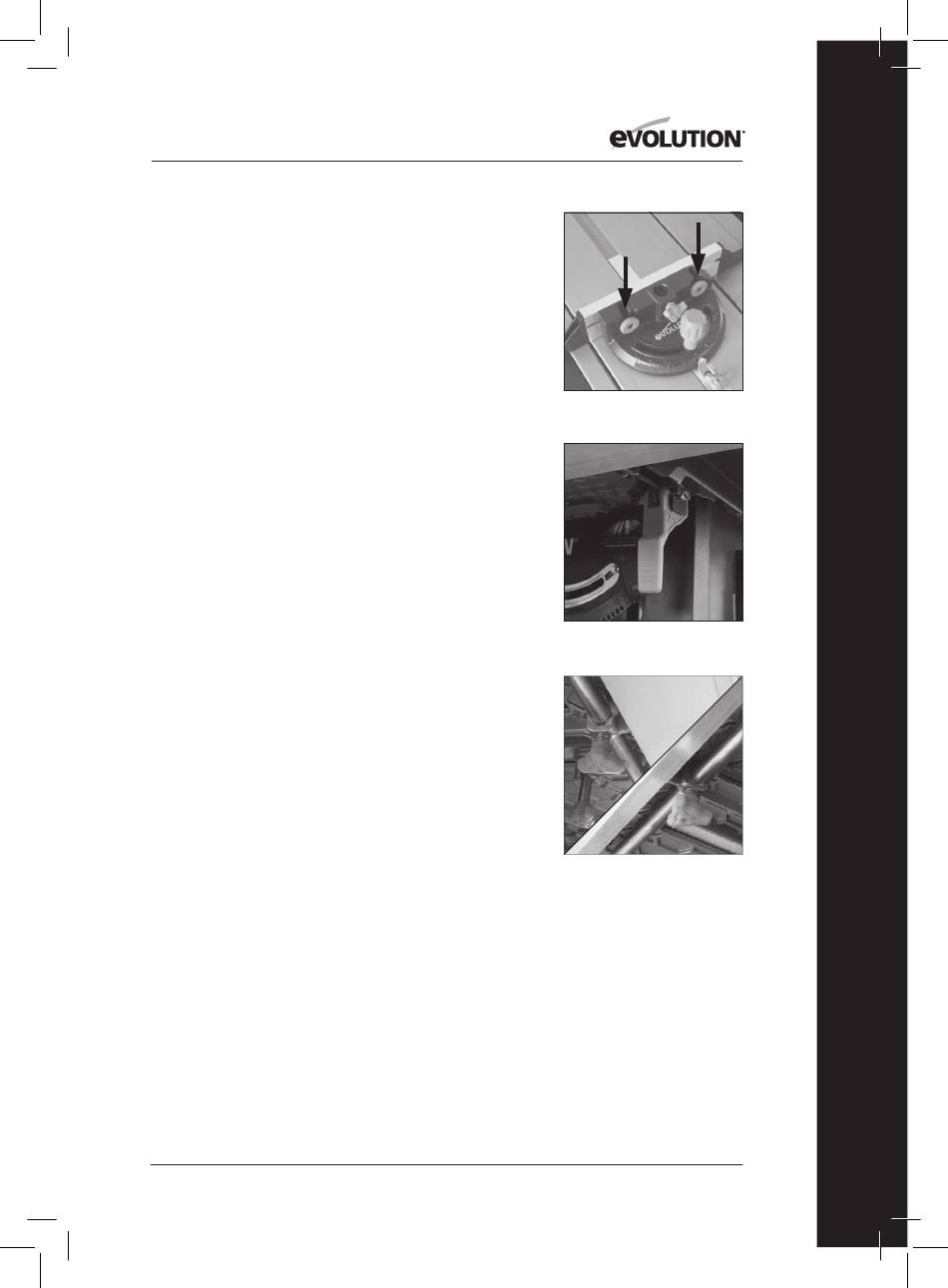

Note: The face plate of the mitre gauge should be adjusted so
that it passes close to, but does not touch the blade guard as it
slides past during a cut.
Adjust by loosening the finger nuts and sliding the
faceplate to the required position. Securely tighten the
finger nuts (Fig. 33).
Note: The Mitre Gauge can be set at any angle between 60˚
Left and 60˚ Right.
MULTIFUNCTION TABLE TOP
This Table Saw is equipped with a versatile and adaptable
table top. The various adjustments are designed to aid
operator efficiency and safety.
TABLE EXTENSIONS
The table top can be extended to the RH and to the LH sides
creating valuable extra work-piece support when cutting
large or wide boards etc. Both sides of the table can be
extended at the same time, or just one side at a time as
required operationally.
To extend the table to the RH side:
• Pull up the Rip Fence locking lever and ensure that the Rip
Fence is free to move.
• Alternatively it may be convenient to temporarily remove
the Rip Fence from the machine.
• Pull up the table extension locking lever found under the
table on the right. (Fig. 34).
• Deploy the table extension to give the required
work-piece support.
• Push the locking lever down to lock the table in the
required position.
• Re-attach and/or adjust the Rip Fence as required.
• When cutting is completed return the table to its
original setting.
To extend the table to the LH side:
• Loosen the two locking screws (one to the front and one
to the rear of the machine) underneath the LH side of the
machines table (Fig. 35).
• Deploy the table extension.
• Tighten the locking screws.
• When cutting is completed return the table to its
original setting.
Fig. 33
Fig. 34
Fig. 35
