4 Maintenance
4.1 Cleaning and storing
A simple and minimum maintenance is provided for the
ROSPOT which must be performed in regular intervals in
order to keep the device in proper condition.
Regularly clean the slots (1) of the cooling of the
transformer using a cloth or brush in order to ensure
flawless air exchange. The handles of the welding
appliance (4) must be dry, clean and without traces of
grease. Always keep the surfaces of the electrodes (2)
and of the electrode support tube (3) clean and free from
oil, lubricant, dust, lacquer, etc. in order to ensure
flawless passage of current. After use it is recommended to remove the lateral handle (4) and to
store the ROSPOT in the provided box (5) together with the different accessory parts.

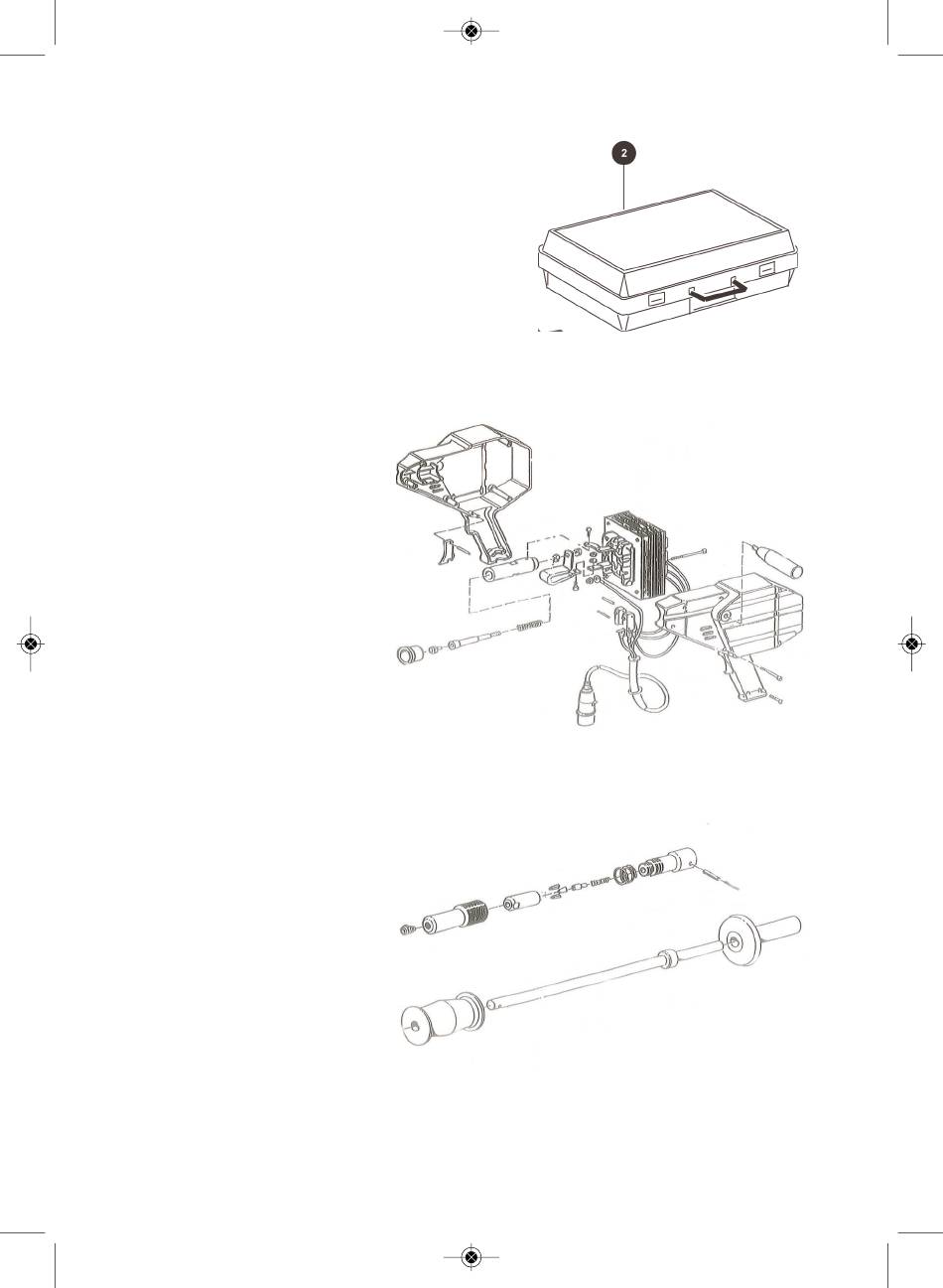

4.2 Spare parts Rospot
Pos. Designation
1 Housing ROSPOT
2 Micro switch
3 Electrode holder
4 Key
5 Electrode support tube
6 Insulating jacket
7 Brass nut
8 Copper connection
9 Transformer
10 Sleeve
11 Supply cable
12 Handle
13 Steel disc
14 Plug
15 Tube insulating bushing
4.3 Spare parts pull- / helve hammer
Pos. Designation
1 Outer nozzle
2 Clamping chuck body
3 Clamping chuck bushing
4 Clamps
5 Center bolt
6 Inside key
7 Outside key
8 Outside bushing
9 Outside pin
10 Inside pin
11 Striking weight
12 Rod with stop
13 Handle
14 Complete clamping
