Heating bath

Refer to the chapter "Commissioning"
CAUTION
in the heating bath instruction manual!

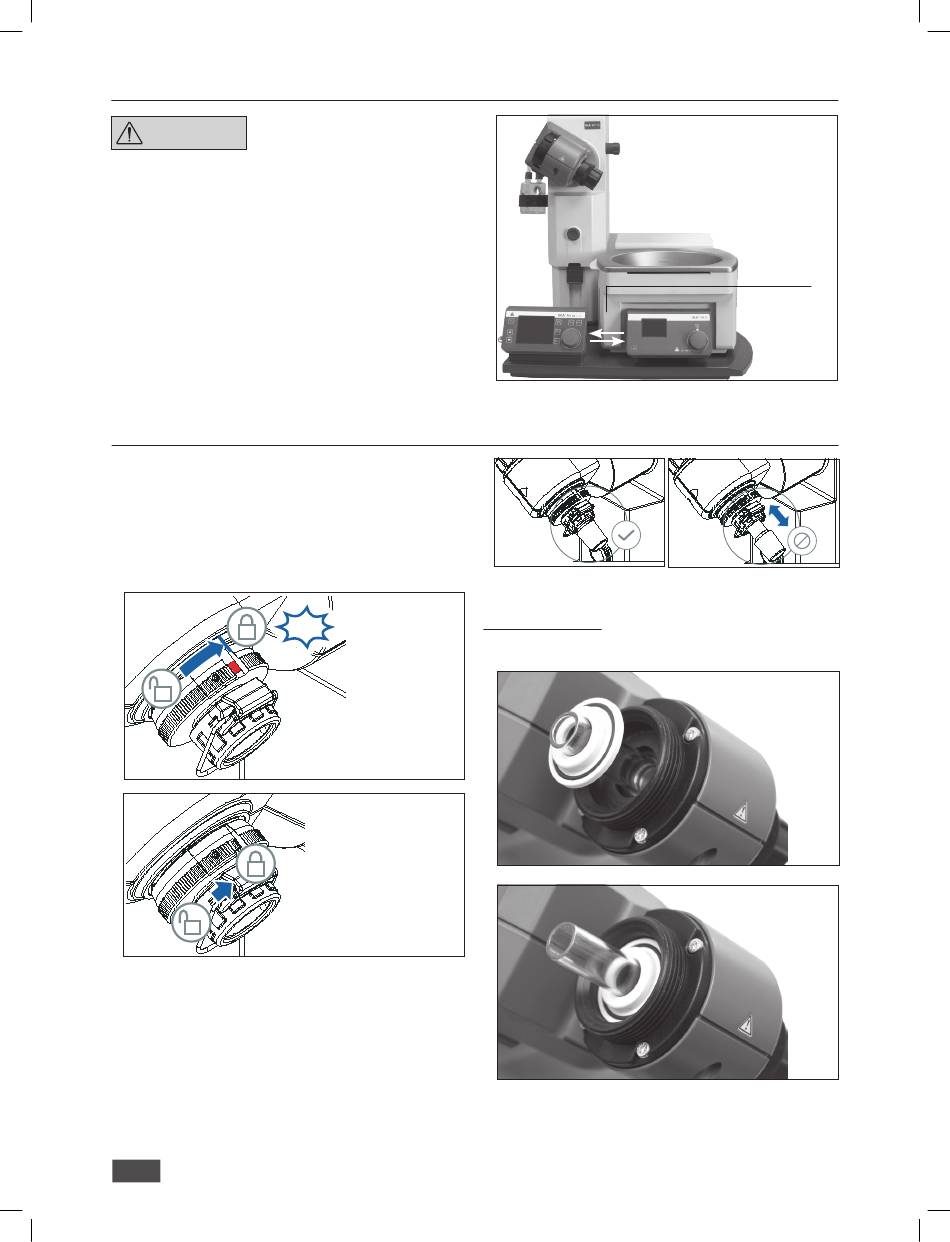

• Place the heating bath on the stand of the rotation drive and
push it into the left position.
Note: Data is exchanged between the drive unit and the heating
bath by means of an infrared link (1). Please note that reliable
communication is only guaranteed when the infrared beam has
clear line-of-sight to the detector.
Glassware
NOTE: Please read the operating instructions of the glassware for
the safe handling of laboratory glassware !
• There is a locking knob for locking or unlocking the locking
device.
If a red mark is shown, the locking device is unlocked, otherwise
it is locked.
To lock or unlock the locking device, push the locking knob to
the end position.
CLICK
• Open the locking device on the drive head by turning it 60°
counterclockwise. Then you can see a red mark .
• Feed the vapour tube in until it stops.
• Then, lock the locking device by turning it clockwise by 60°.
• Pushing the lock knob to the end position, the red mark should
be covered and invisible.
• The vapour tube is not allowed to be pulled out!
• Check the correct axial locking device on the vapour tube.
• Keep the red mark invisible.
36
IR
Fit the condenser seal
• Place the condenser seal in the condenser receptacle and fit the
glassware to the device according to the assembly instructions.
1
