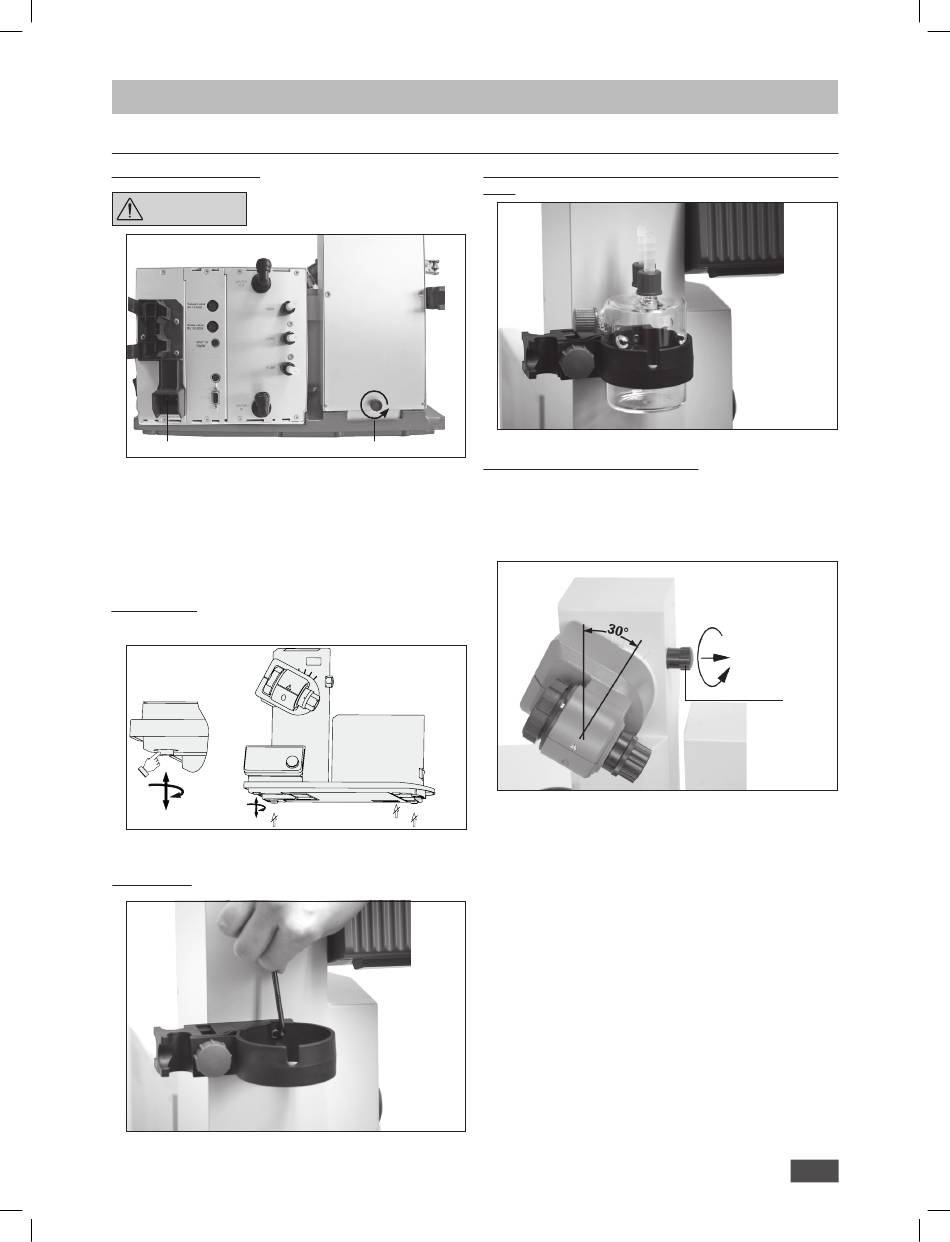

Setting Up - IKA RV 10 control Mode D'emploi

Drive RV 10 auto
Loosen transportation lock!
CAUTION
2
• Hold the lift with your hand on the height position and remove
the thumb screw (1) by turning counterclockwise on the back
of the appliance.
• Once the transportation lock has been removed, the lift moves
slowly to its upper end position. The distance is approx. 140 mm.
• Connect the supplied power cable to the connection socket (2).
Adjustable base
Note: Only one base foot is adjustable.
Fix the bracket

Setting up

Insert the bottle and attach the supplied hose connectors to the
bottle
1
Set the drive at an angle of approx. 30°
• Remove the clamping device for the angle setting of the rota-
tion drive on the right side of the lift by rotating the knurled
screw counterclockwise (gently press and rotate the knurled
screw (1) at the same time to move it further in or out).
• Set the drive at an angle of approx. 30°.
• Then secure the rotation drive from being accidentally turned
by tightening the knurled screw in a clockwise direction.
1
35
