Water
• Connect the water inlet to the water supply (with op-
tional RV 10.5001 water regulator valve). Please re-
fer to the technical data relating to the water supply.
The RV 10.5001 water regulator valve is not suitable for use on
the condenser unit because it would reduce the flow rate too
greatly.

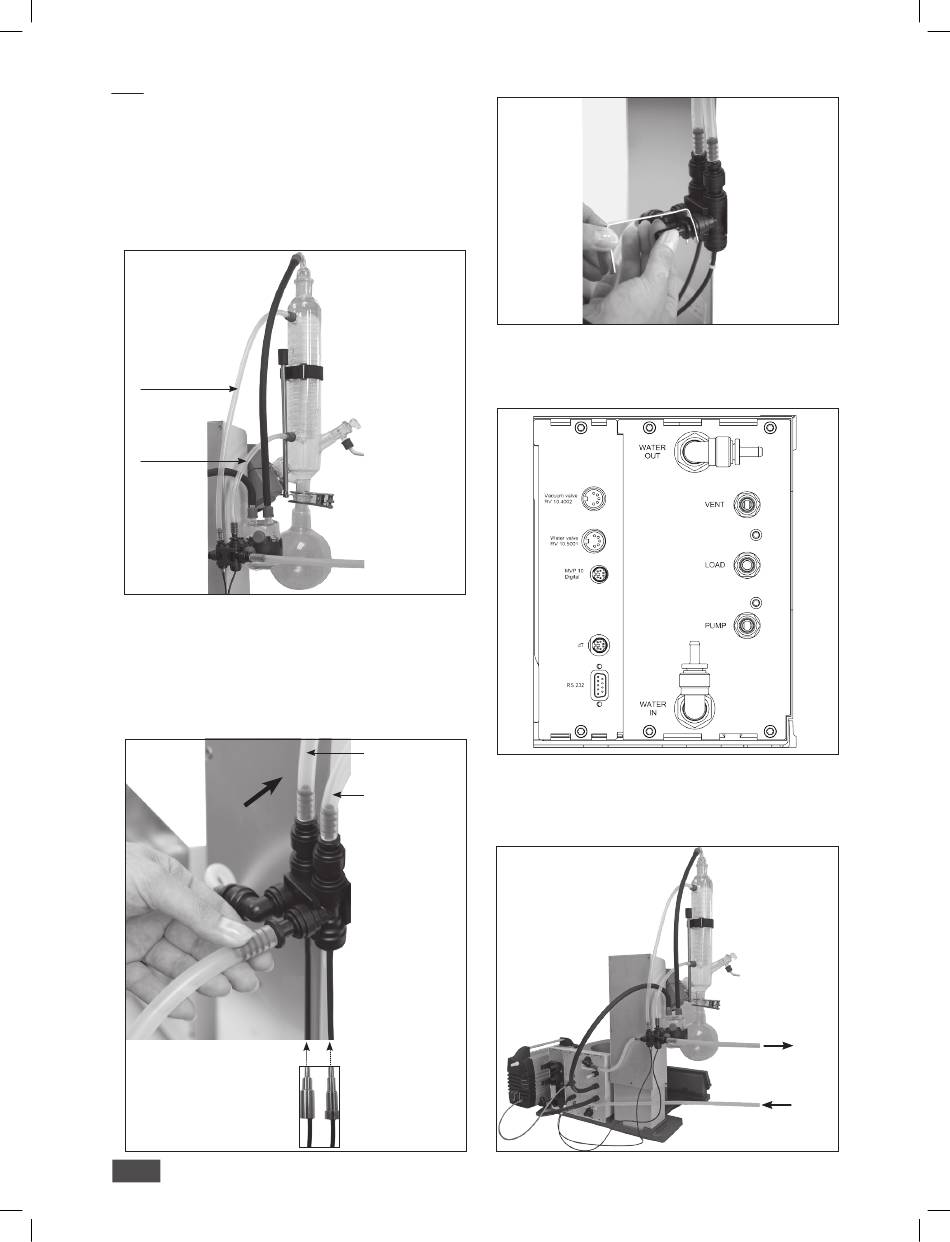

• Connect the water hoses to the glass condenser (short hose
(1) = lower outlet, long hose (2) = upper inlet) and fix hoses in
place.
2
1
• Connect the water outlet hose (supplied) by pushing it onto the
nipple until the stop inside the connection socket is reached.
Note: Ensure that the condenser inlet and condenser outlet are
connected correctly.
Automatic distillation cannot be carried out if the water inlet and
outlet hoses are not fitted according to the instructions and illus-
trations, since this would cause the temperature readings for the
inlet and outlet to be measured incorrectly.
40
• Release the hose connection using the supplied tool.
• Insert the valve connector cable (RV 10.5001, RV 10.4002) into
the appropriate socket. Connect the speed-vacuum control
pump. As a result, the RV 10 control automatically switches to
normal speed-vacuum control operation.
Condenser inlet
• Connect "LOAD" to the Condensate flask and the Condensate
Condenser outlet flask to the vacuum connector on the condenser using the vacu-
um hoses supplied. Please note that the vacuum must always be
connected at the highest connection point on the condenser.
Water out
Water in
