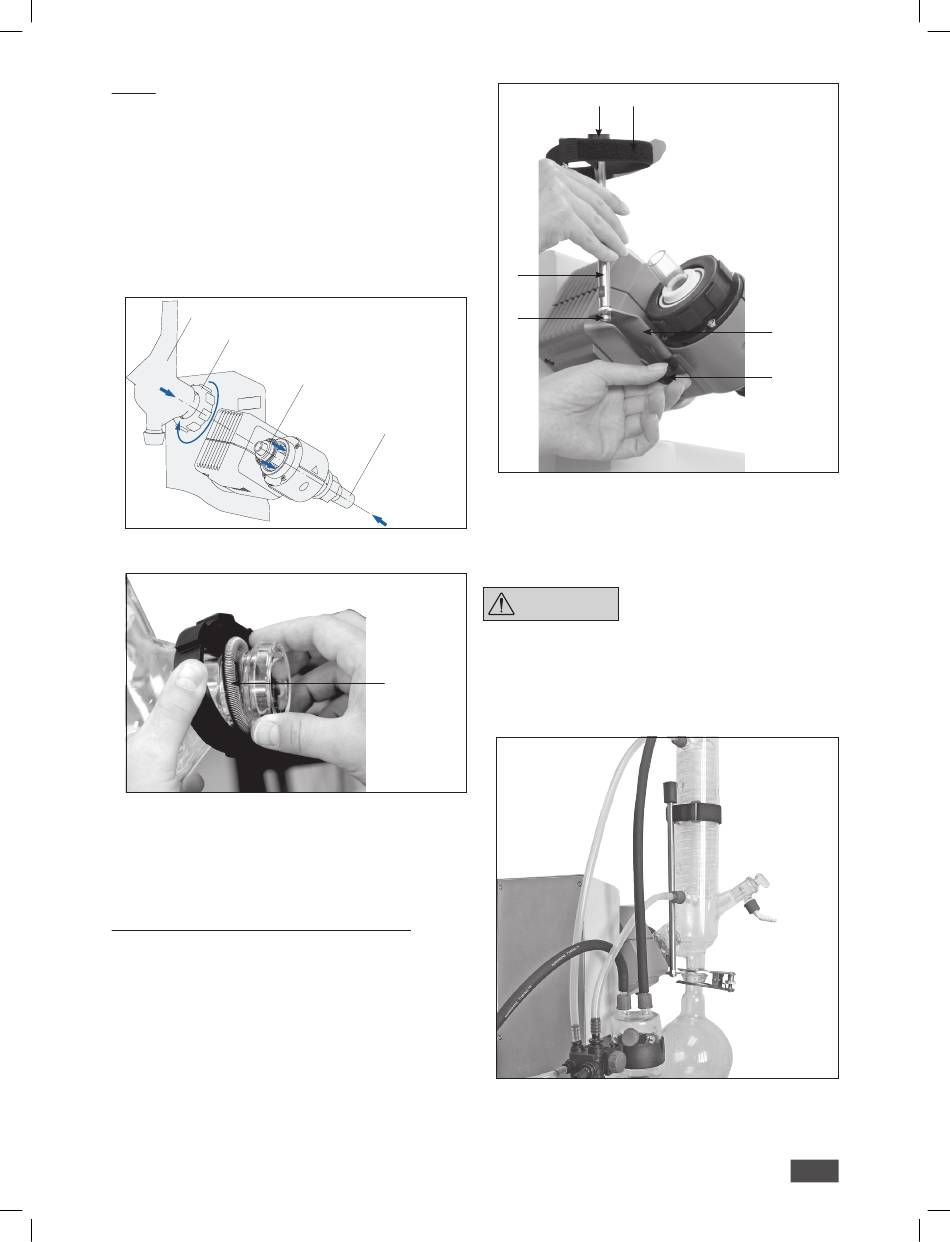

First use
• Insert vapor tube (1).
• Insert the vacuum seal (2). Pay attention to the correct positon
of the vacuum seal!
• Slide the union nut (3b) over the flange on the condenser (3a).
• Also slide the annular spring (3c) over the flange on the con-
denser (3a).
• Position the condenser (3a) on top of the seal (2).
• Tighten the union nut (3b) by hand onto the threaded flange.
Run the device for 20 minutes at 120 rpm. Finally, retighten the
union nut (3b) by hand.
Note: Follow the mounting instructions for the glassware.
3a
3b
Assembling the vertical glassware cooler locking device
• Assemble the condenser locking device according to the dia-
gram.
• Mount the plate (1) using the thumb screw (2).
• Put the support rod (4) on the plate (1) and attach it with the
screw nut (3).
• Attach the rubber protector (5).
• Fasten the Velcro band (6) to the support rod (4).
®
• Secure the vertical glassware with the Velcro
2
1
No stand is required if the condenser has been properly fitted
and secured by tightening the condenser union nut on the rotary
drive.
The purpose of the stand is solely to prevent the condenser from
twisting.
3c
After the condenser has been fitted, the stand is attached to the
rotary drive. Make sure that the condenser is installed parallelly to
the lift body.
band (6).
®
5 6
4
3
If the stand is fitted incorrectly, the
CAUTION
strong forces at the Velcro strap can
cause stresses within the glass, which
in turn can cause damage to the glass
condenser.
1
2
