Icon
Setting
Info
DataLog

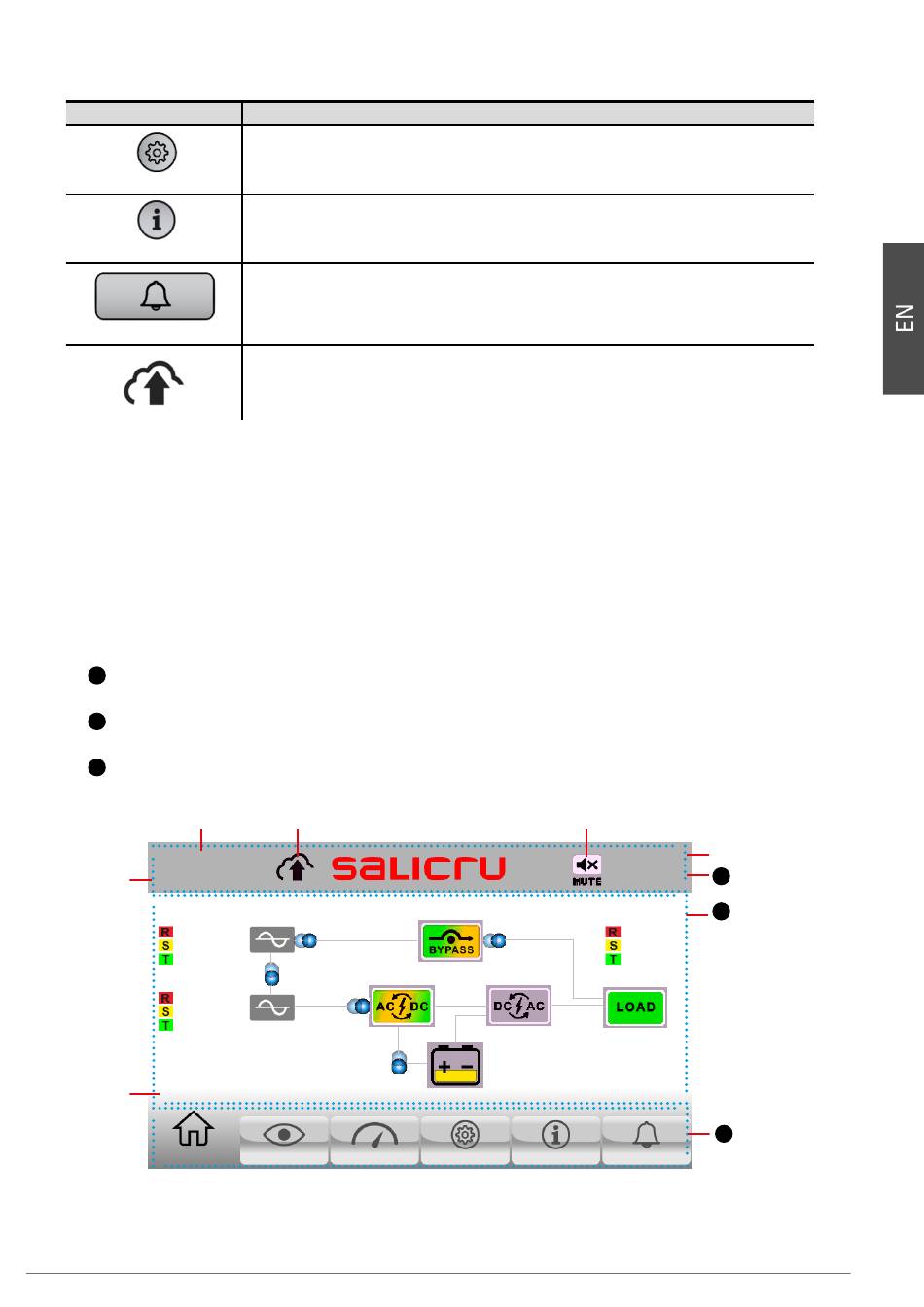

Tab. 5. Icons and buttons that are accessible from any control
panel screen.
7.1. HOME MENU OR MAIN SCREEN
The main screen will appear by default after the UPS starts up. It is
the starting point from where you can access all submenus, func-
tions and settings. With regards to the generic screen described in
Fig. 61, the UPS power flow is shown in the display and submenu
area. The information on this screen is divided into 3 basic display
areas.
1
System information (power, operating mode, NIMBUS
communication status, acoustic alarm, date and time).
2
Power flow or synoptic, voltages, frequency, battery
status, output load, presence of alarms/warnings.
3
Main menu.
Power of the
unit
10 kVA
Operating
Bypass Mode
mode
231. 8 V
233. 5 V
232. 8 V
50.0 Hz
231. 8 V
233. 5 V
232. 8 V
50.0 Hz
Alarm/
<3A> maintain is open
warning
HOME
Fig. 61. Main screenl.
USER MANUAL
Setting button
Access to system configuration and settings.
Information button
System information
Datalog menu
Provides access to the Alarm, warning and event log.
Nimbus Services communication
This icon indicates that the Nimbus card is correctly inserted into its slot and is connected to the Internet.
If this icon appears crossed out, it may indicate that the Nimbus card is not present, or there is no Internet
access, or that there is another card that is not compatible with NIMBUS Services.
Nimbus communica-
tion icon
CONTROL
MEASURE
Description
Acoustic alarm mode
2020.11.04
11:56:35
50.0 Hz
0%
137. 4 V
137. 0 V
9 AH
95%
SETTING
INFO
SLC CUBE4 7,5 kVA a 20 kVA - UNINTERRUPTIBLE POWER SOIRCE (UPS)-
Date / Time
1
System infor-
mation
2
Synoptic with power
flow, voltages,
231. 8 V
frequencies, battery
233. 5 V
status, output load, fault or
232. 8 V
warning condition
3
Main menu
DATALOG
