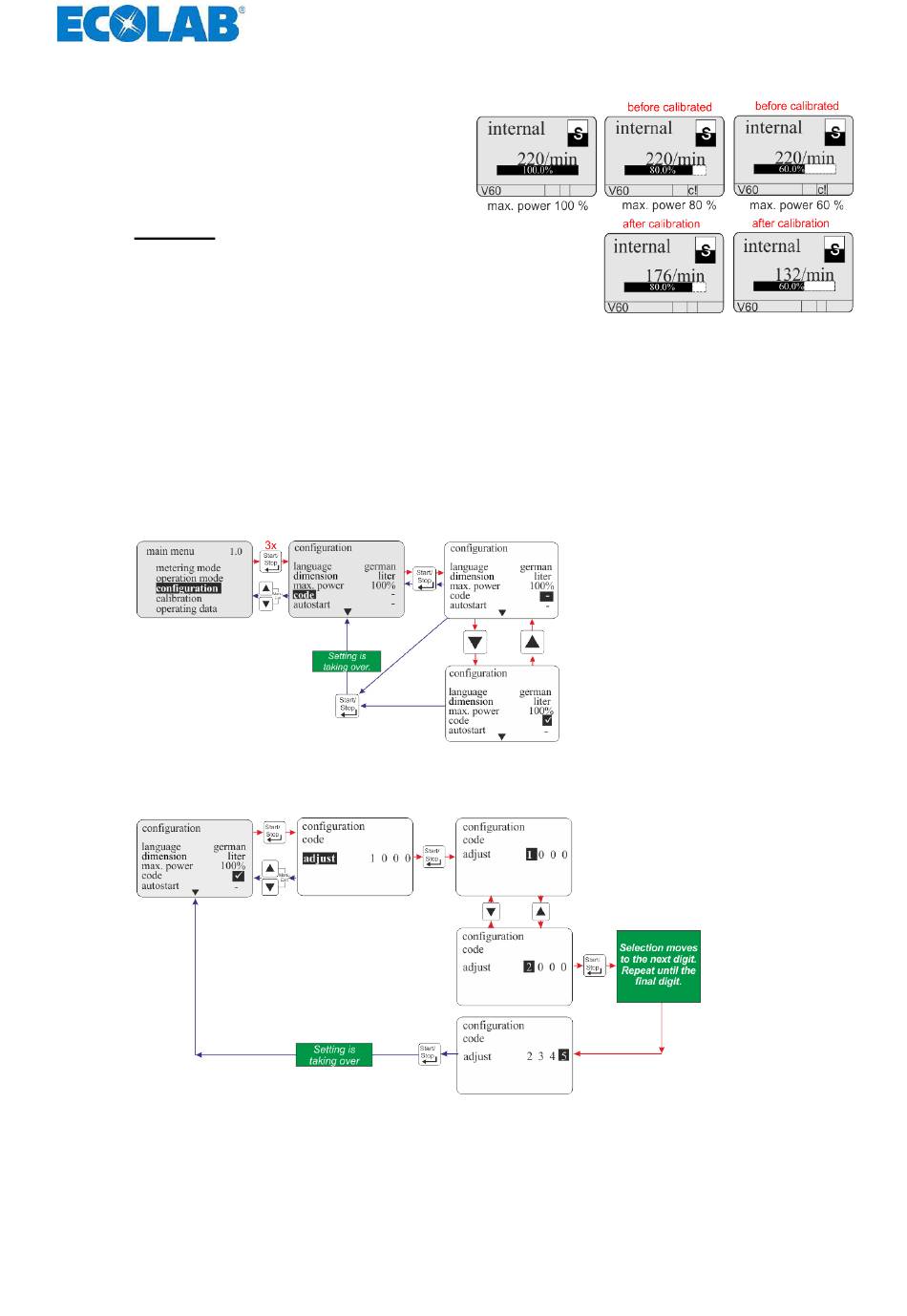

10.4.5.2 Display view

Once the calibration has been
performed, the value of the configured
metering quantity is changed
accordingly.
Example:
Pump type 02200 (220 l/h),
calibrated with water at 20 °C,
short suction and pressure lines, Standard
[s] metering mode setting
10.4.6

Configuration / Code

In this setting, a combination of number can be assigned in order to secure the settings
against unintentional adjustment.
If 'code' has been activated, the four-digit code must be entered before configured values
can be amended or the main menu can be accessed.
10.4.6.1 Selection

10.4.6.2 Setting

417102214_EDPL_V60.docx
Fig. 10.25
93
Fig. 10.26
- Code query inactive. (Default setting)

Code query active.
Fig. 10.27
