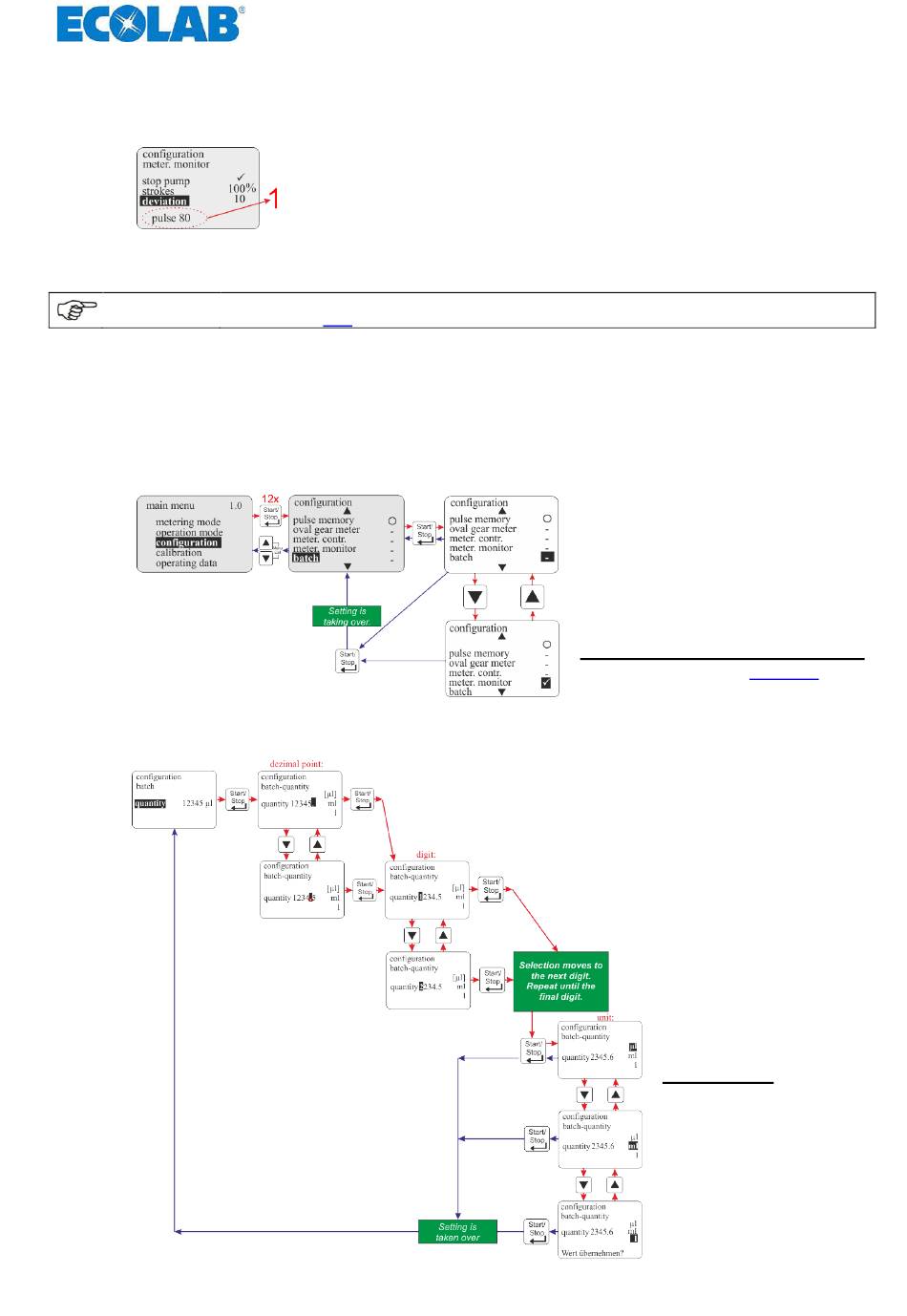

10.4.14.5 Oval gear meter pulse display
This display shows the number of pulses recorded during the last calibration process
(running time during calibration = 1 min).

10.4.15 Configuration / Batch

The pump must be calibrated before using the batch metering.
NOTE
(see chapter:
If batch mode is enabled, a pre-defined rate is metered with a stroke frequency of 100 % at
the metering lock or pulse input (plug II).
Batch metering can be interrupted by disabling the release (metering lock) or by switching off
the pump.

10.4.15.1 Selection

10.4.15.2 Batch / Quantity

417102214_EDPL_V60.docx
PLUS
(V60
If the value (1) shown is less than 60, metering monitoring using an
oval gear meter is only possible to a limited extent.
Fig. 10.45
10.5 "Calibration")
only)
Fig. 10.46
- Batch is inactive.
(Default setting)

Batch is active
If batch metering is active, the
following items appear in the submenu:
Menu option
• quantity
99
see chapter
10.4.15.2
Fig. 10.47
"Quantity" is used to
establish the desired
metering quantity
(in µl, ml, l or G) per batch
metering process.
Setting range: 0 – 99999
Rev. 1.12.11
