7.2.3

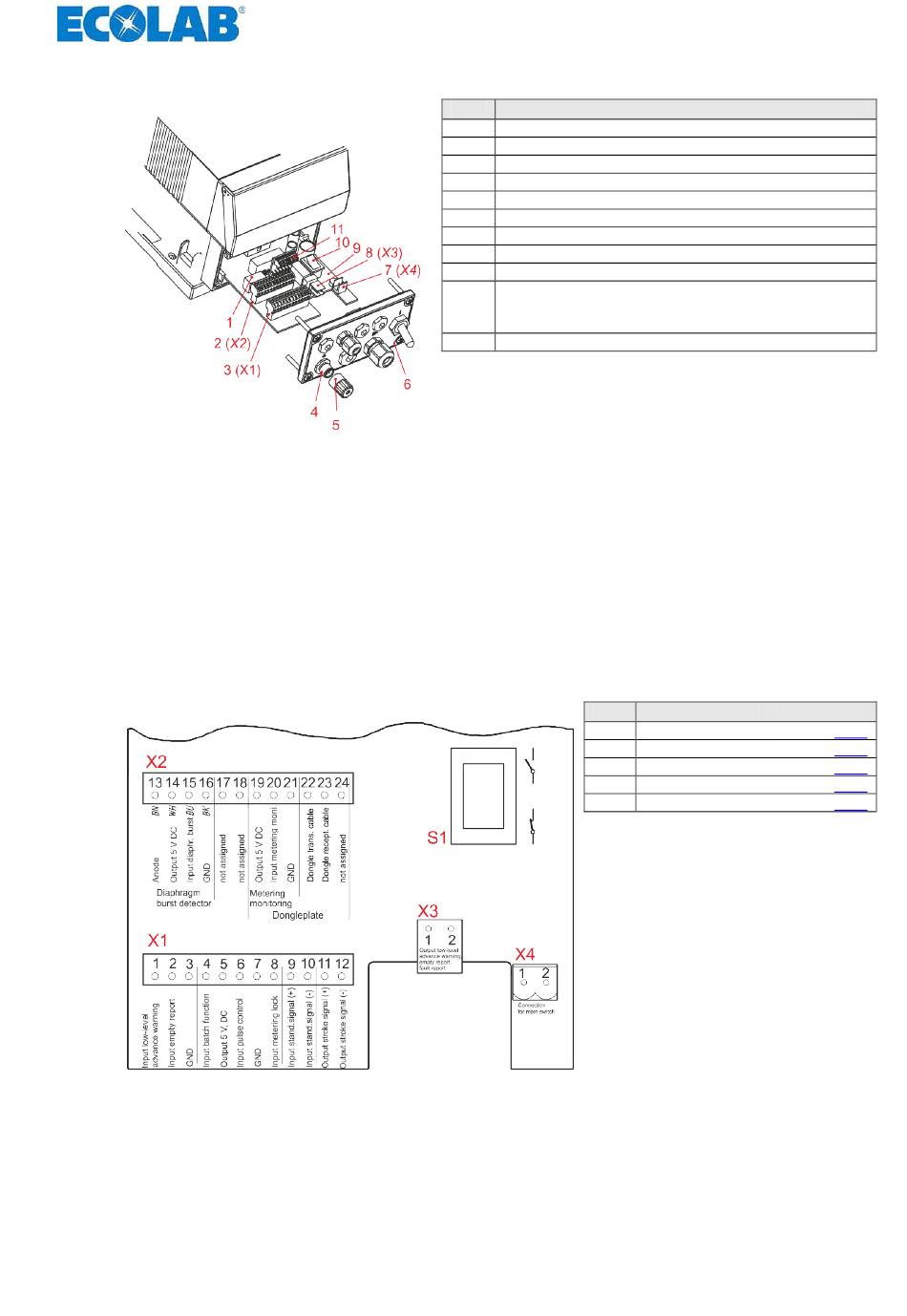

Overview of the control board

The board (pos. 9) with the connection terminal strips (pos. 2, 3,
the pump housing, and the terminals can be unplugged.
There is a connector (pos. 4) on the front, which is already connected to the internal terminal
strip, for connecting a suction pipe. If no suction pipe is used, the blanking cap provided
(pos. 5) must be attached to the integrated links.
The selector switch (pos. 10) can be used to switch the contact for the malfunction or empty
alarm relay from the NO contact function to an NC contact function (see guide printed on the
board).
7.2.4

Terminal strip overview

417102214_EDPL_V60.docx
Fig. 7.18 Pos. Description
1 Switch (currently functionless!)
2
Connection terminal strip (X2)
3
Connection terminal strip (X1)
4
Slot I (input for level pre-warning and empty signal)
5 Blanking cap
6 Front plate
7 Connection for the on/off switch
8 Connection terminal strip (X3)
9
Board
Empty alarm contact selector switch
10
Selection of the contact function (NO/NC contacts) of
the empty or malfunction alarm relay
11 Assembled dongle board
After removing the front panel (pos. 6), the
clamping space for the activation and output
signals is accessible.
Fig. 7.19
75
V60
7 & 8) can be removed from
Pos. Description
X1 Terminal strip X1
X2
Terminal strip X2
X3
Terminal strip X3
X4 Terminal strip X4
S1 Switch S1
see chapter
7.2.5
7.2.6
7.2.7
7.2.8
7.2.9
Rev. 1.12.11
