GB Adjusting the end position with the setting switch

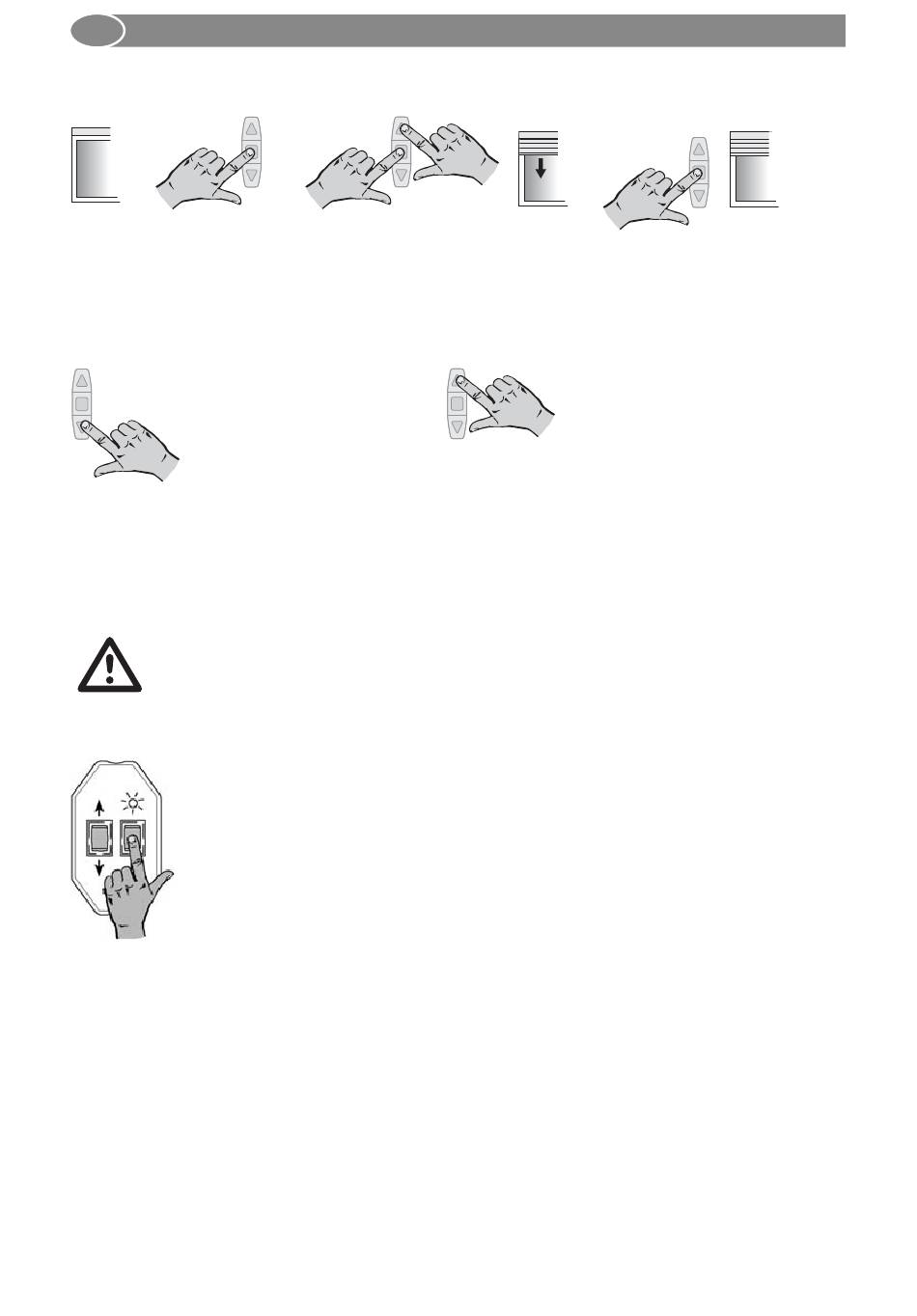

Set intermediate position 2
➧
Press and
hold down
Move to intermediate position 1
2 x

7. Adjusting the end position with the setting switch

Connect the SELVE setting switch for radio drives (item no. 290109) to the connection
lines according to colour.
If the setting cable is plugged in, the wires are power supplied. For
connecting of the setting switch to the drive de-energise the cable.
Warning!
Press the E button for 6 seconds to switch the drive into manual setup-
mode. Then set the end positions as described in the grey sections for
items 4.4.2 to 4.4.4. It remains in setting mode until the lower and upper
end limits are being pro grammed.
If the radio motor is already in setting mode and the setting button is
pressed for 6 seconds instead of 3 seconds, an end position is pro-
grammed anyhow.
>3 sec.
Run to position
Move to intermediate position 2
2 x
36
➧
Release STOP to save the
position
✓
