Functions in service mode

8. Functions in service mode (setting by using a transmitter)

In order to carry out the following settings, the drive has to be put into service mode
by disconnecting it from the mains supply in a special way.
Consider the following:
• Transmitter programmation has to be finished before service mode can be exe-
cuted.
• Put only the drive which is to be set into service mode.
• The drive remains in service mode for 4 minutes.
• In order to leave the service mode just drive the motor up or down.

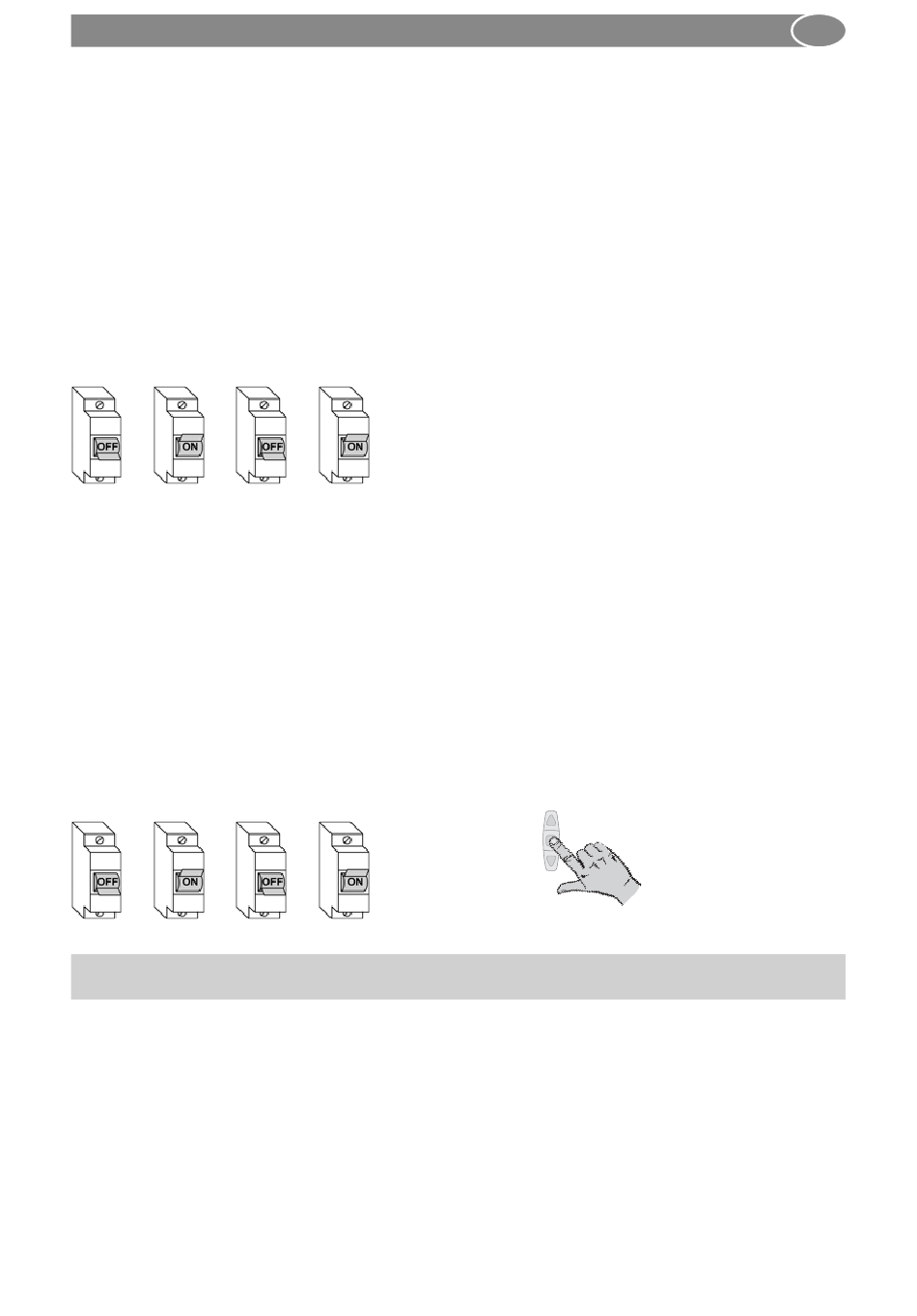

Fuse/Hirschmann plug
3 sec. 3 sec. 3 sec.
The drive confirms the service mode by a brief up and down moving.

8.1. Adjusting the end limits by using the transmitter

Setup-mode can only be finished by programming both end positions. The transmitter
assignment is not affected by this. When setting the end positions, the drive is in the
normal operating state again.
Put the drive into service mode by disconnecting it. Press the STOP button of an
assigned transmitter for 6 seconds to return the drive to setting mode (wait until the
transmitter indicator flashes twice). Then set the end positions as described in the grey
sections for items 4.4.2 to 4.4.4.
Fuse/Hirschmann plug
3 sec. 3 sec. 3 sec.
Set the end positions as described in the grey sections for items 4.4.2 to 4.4.4.
assigned transmitter
STOP
➡
37
GB
6 sec.
➡
