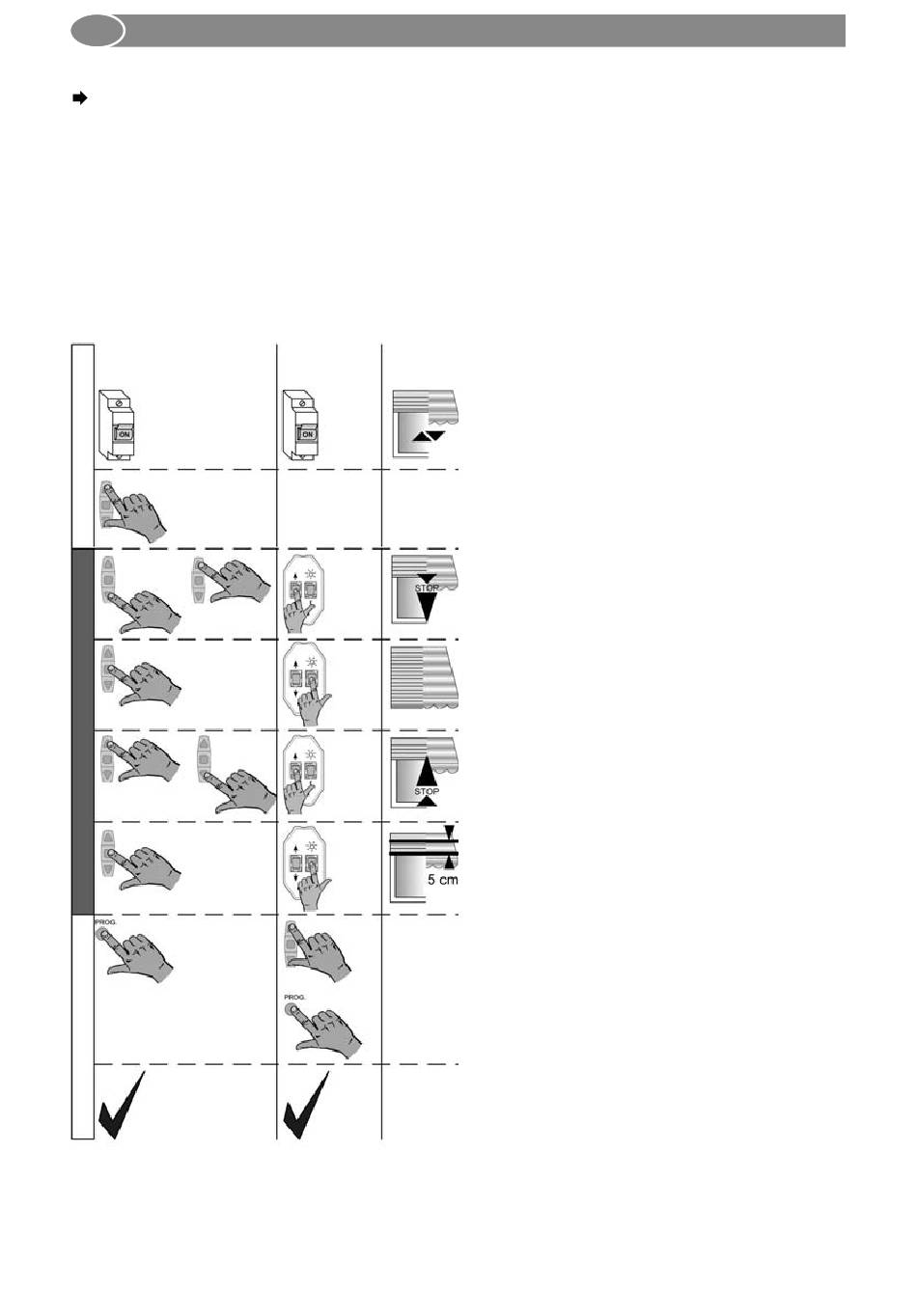

GB Setting the end positions

4.4.4. Manual setup-mode for SEM Plus-R

in operation: bottom position, top stop/no release
When the movement is interrupted once, the system is in manual setup-mode.
In manual setup-mode, the lower end position must be set and stored first. Afterwards,
the upper end position can be set and stored. A position 5 cm from the upper stop is
to be selected and stored.
Important!
Only connect that radio drive to power that is to be programmed! You cannot program
more than one drive at the same time.
Setting with
transmitter
or
3 sec.
or
3 sec.
PROG
1 sec.
Setting with
setting
Drive
switch movement
3 sec.
3 sec.
PROG
1 sec.
34
1. Connect to power.
2. For setting with transmitter: press the UP
and DOWN buttons at the transmitter at
the same time. The transmitter is tempo-
rarily taught into the drive.
3. Move the drive to the lower end position
with the UP or DOWN button. Press the
STOP or E button for 3 seconds The
correct rotation direction assignment will
be carried out at the end of the end
po sition setting.
4. Move to a position about 5 cm below the
upper end stop and press the STOP or
E button for 3 seconds. The drive moves
against the upper stop with increased
sensitivity from this position and stops
automatically.
5. The end positions are now set and the
rotation direction assignment is correct.
Perform a test run.
6. For setting with transmitter: press the
PROG button at the transmitter.
When setting with setting cable: press the
UP and DOWN buttons on the trans-
mitter at the same time, and then the
PROG button.
7. The transmitter is now permanently
taught-in.
