GB Installation and electrical connection

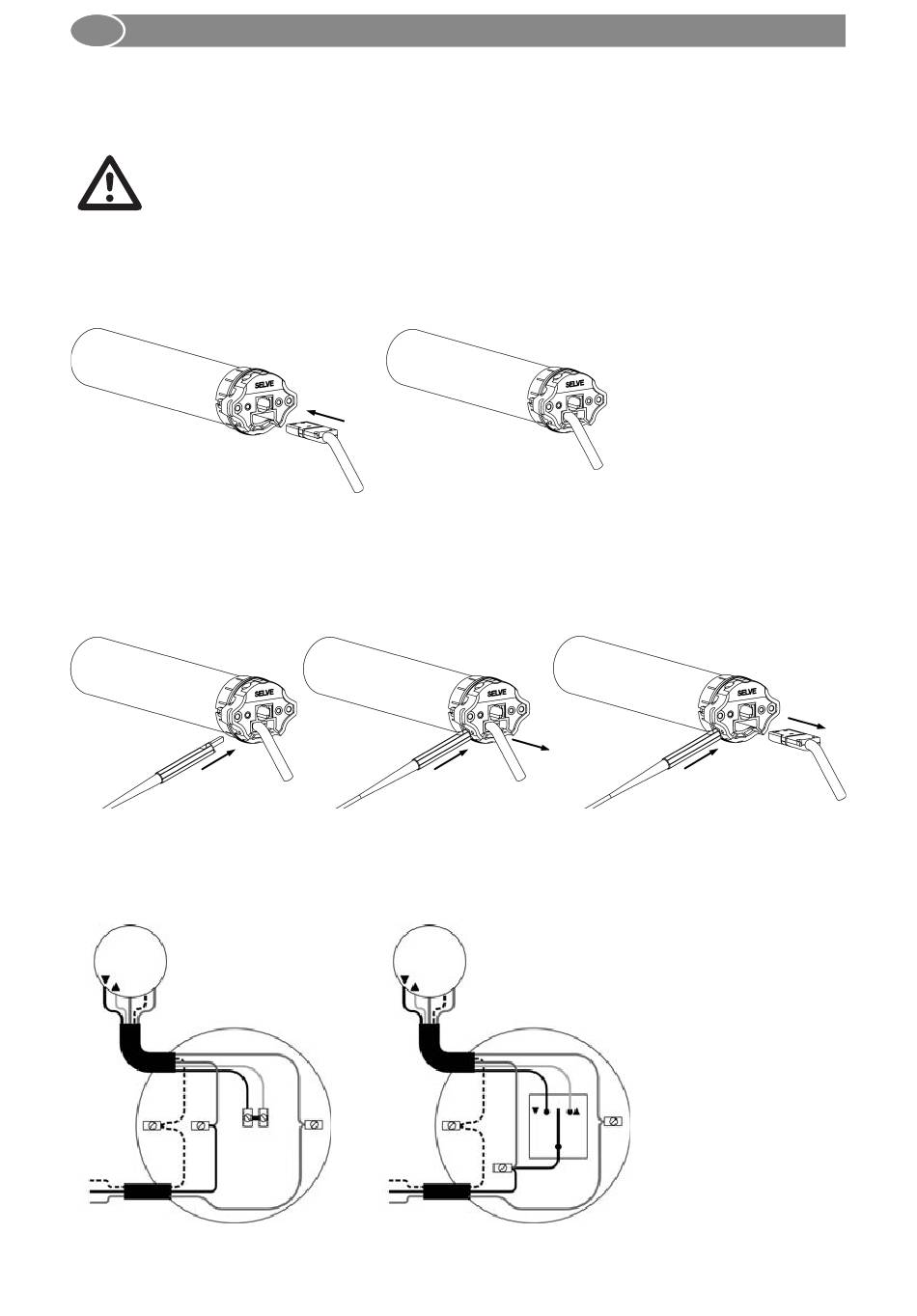

3.3. Assembly and disassembly of the patch cord

The patch cord is not yet implemented for all motor types; some motor types are
still supplied with a fixed power cord.
Important! Risk of injury through an electric shock!
When the patch cord is unplugged, the line must be de-energised!
Warning!
For installing the patch cord, de-energise the patch cord first. Insert the plug into the
motor head until the lock engages audibly.
For uninstalling the patch cord, de-energise the patch cord first. Open the plug lock
through the lateral opening at the motor head. This can be done with a screwdriver or
a special release tool. Press on the locking clip from both sides and carefully pull out
the patch cord until the plug comes loose and the patch cord can be removed.

3.4. Electric connection

Radio drive without switch
M 1
~
N
PE
L
1 2 3
PE
L1
N
Radio drive with switch
M 1
~
L
4 5
PE
L1
N
N
PE
1 2 3 4 5
0
L
28
1 = PE, yellow-green
2 = L1, brown
3 = DOWN, black
4 = UP , grey
5 = N, blue
Connection of a perma-
nently installed switch is
optional. Connection via
N, L1 and PE is suffi-
cient for radio control
only.
