GB Setting the end positions

4.4.2. Manual setup-mode for SE Plus-R, SEL Plus-R and SES-R

in operation: bottom position, top position
When the movement is interrupted once, the system is in manual setup-mode.
In manual setup-mode, the lower end position must be set and stored first. Afterwards,
the upper end position can be set and stored.
Important!
Only connect that radio drive to power that is to be programmed! You cannot program
more than one drive at the same time.

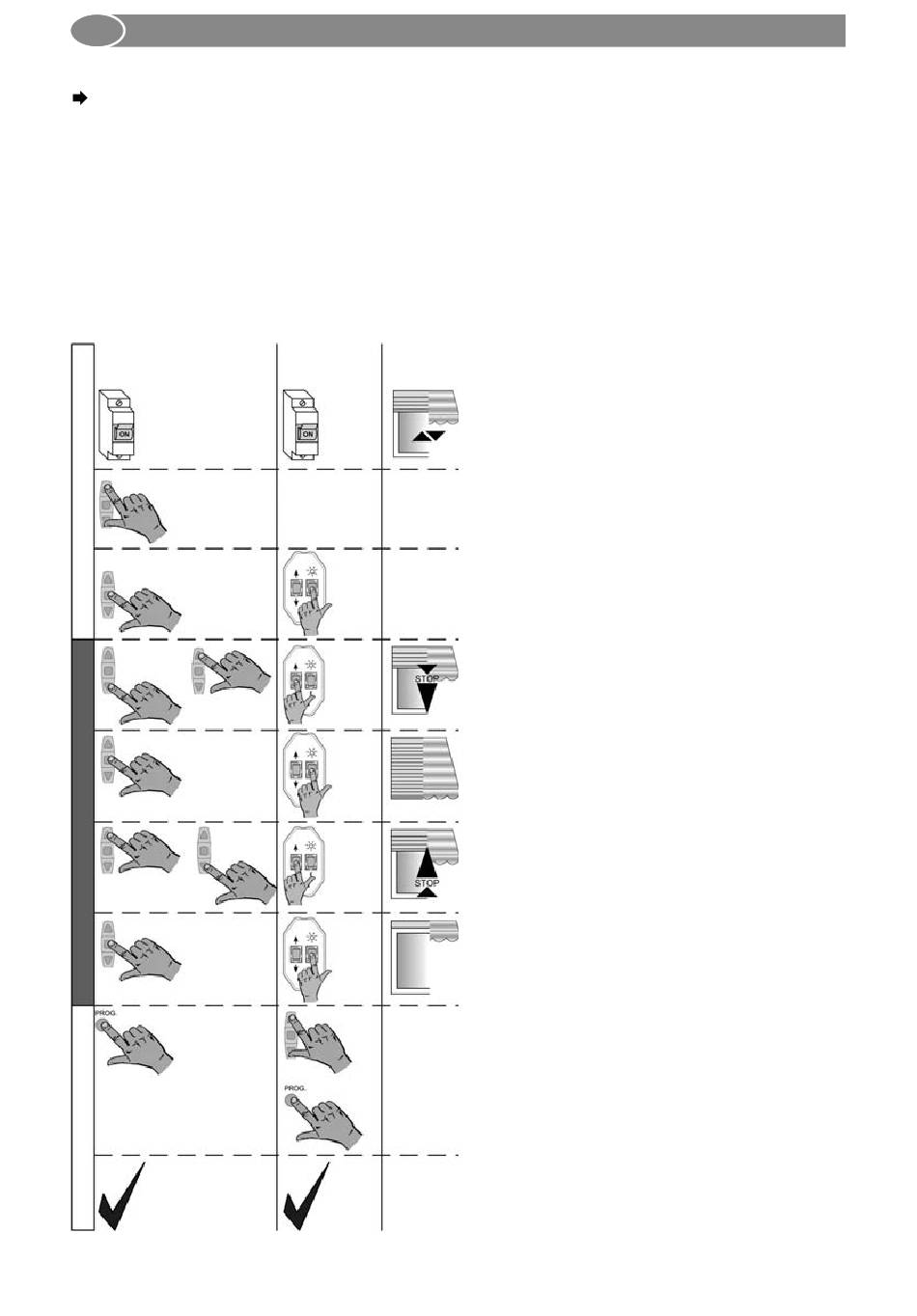

Setting with
transmitter
Only SEL Plus-R
and SES-R
6 sec.
or
3 sec.
or
3 sec.
PROG
1 sec.
Setting with
setting
Drive
switch
movement
6 sec.
3 sec.
3 sec.
PROG
1 sec.
32
1. Connect to power.
2. For setting with transmitter: press the UP
and DOWN buttons at the transmitter at
the same time. The transmitter is tempo-
rarily taught into the drive.
3. Only SEL Plus-R and SES-R: Press the
STOP button on your transmitter or the
E button of the setting cable for 6 se -
conds.
4. Move the drive to the lower end position
with the UP or DOWN button. Press the
STOP or E button for 3 seconds The
correct rotation direction assignment will
be carried out at the end of the end
po sition setting.
5. Move the drive to the designated upper
end position and press the STOP or
E button for 3 seconds.
6. The end positions are now set and the
rotation direction assignment is correct.
Perform a test run.
7. For setting with transmitter: press the
PROG button at the transmitter.
When setting with setting cable: press the
UP and DOWN buttons on the trans-
mitter at the same time, and then the
PROG button.
8. The transmitter is now permanently
taught-in.
