Setting of the end positions

4. Setting of the end positions

4.1. Delivery status

In the SELVE delivery status no end positions or transmitters are learnt into the radio
motor! In this state, the drive can be operated in deadman's operation only. Safety
functions such as obstacle detection are deactivated at delivery and will only become
active after both end positions are set.
State at delivery is indicated by a short movement when the radio drive is connected
to power. The SEL Plus-R and SES-R drives are in automatic setup-mode.

4.2. Setup functions

The end positions setting of a SELVE radio drive is possible via:
• any intronic transmitter
• the setting switch for radio drives (item no. 290109)
• any standard switch (in automatic mode), only SEL Plus-R and SES-R

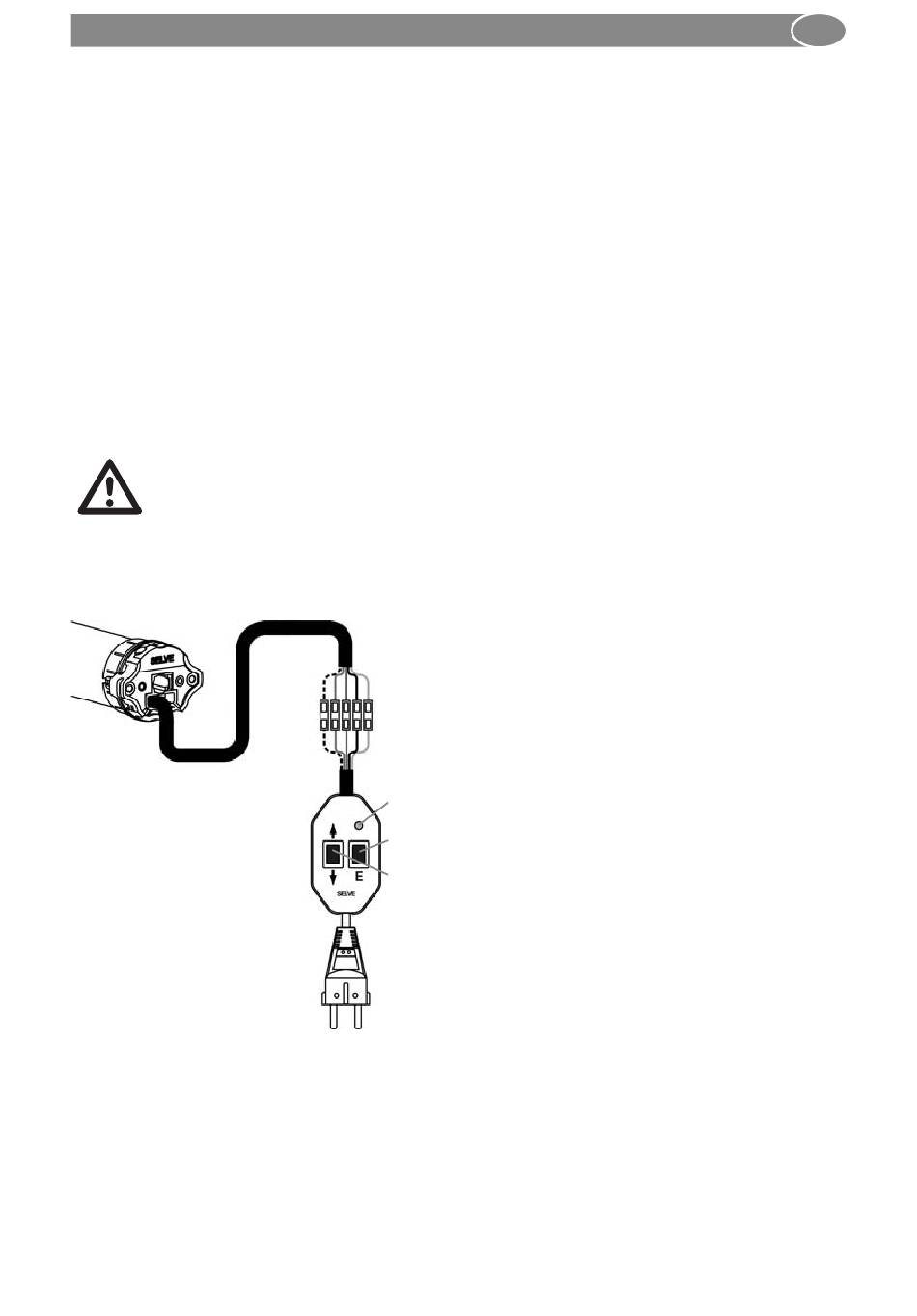

When connecting the setting switch for radio drives, consider the following:
Important! Risk of injury through an electric shock!
Connection only when de-energised!
Warning!
The 5 wires in the setting switch cable must be connected to the drive wiring cable
according to their colours.
UP = grey
DOWN = black
N = blue
L1 = brown
PE = yellow-green
LED indicates connection in correct phase sequence
Pushbutton E is the setting pushbutton
Pushbutton for moving the motor up and down
