Setting of the end positions

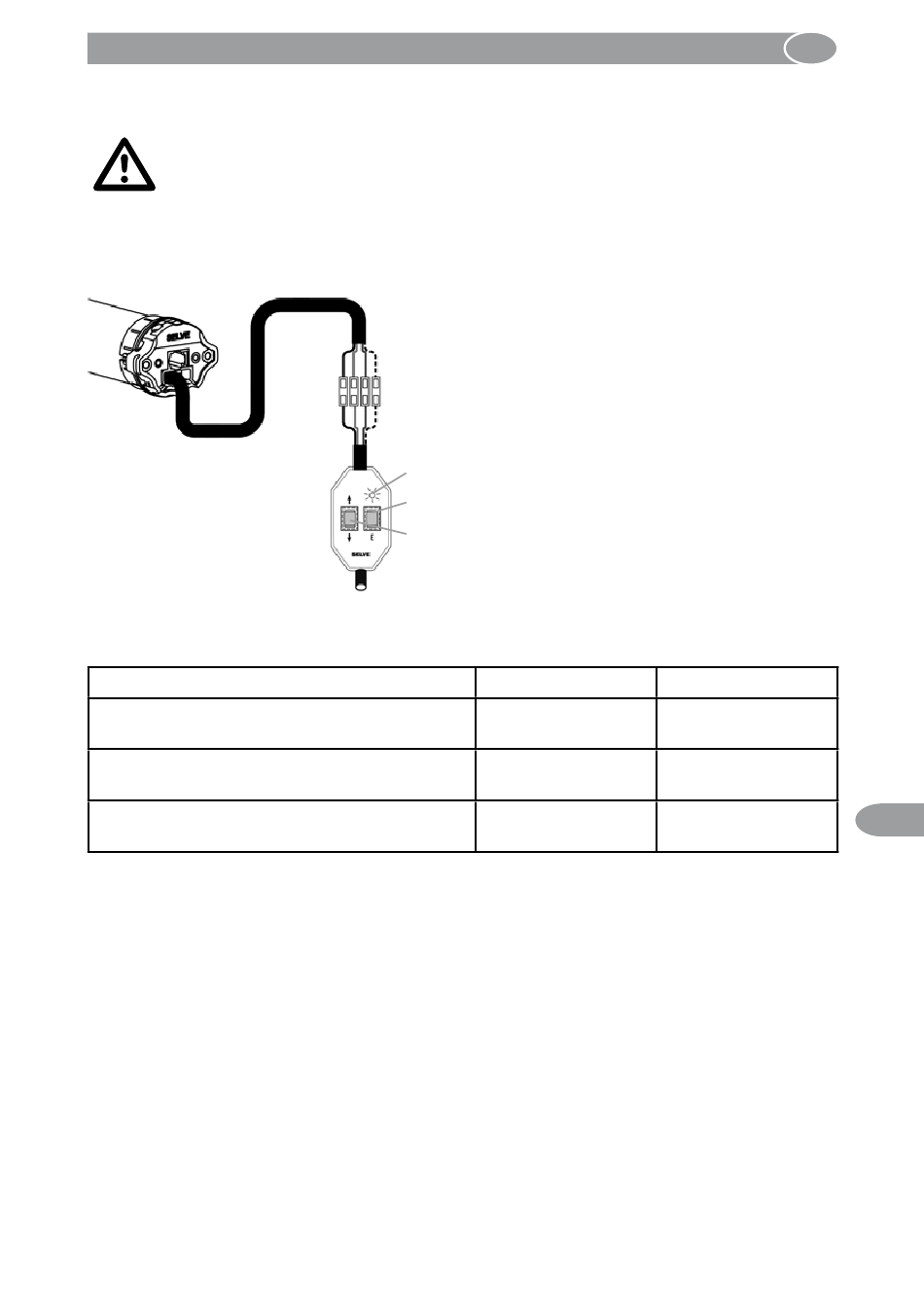

4.4. Setting of the end positions with setting switch/switch

When connecting the setting switch for motors, consider the following:
Caution! Risk of injury through an electric shock!
Connection only when de­energised!
Warning!
The 4 wires in the setting switch cable must be connected to the motor wiring cable
according to their colours.
PE = yellow­green
N = blue
UP = brown
DOWN = black

4.5. Selection table for setting

Setup-mode/end positions in operation
Automatic setup­mode
bottom position, top stop/release
Manual setup­mode
bottom position, top position
Manual setup­mode
bottom position, top stop/release
LED indicates connection in correct phase sequence
Pushbutton E is the setting pushbutton
Pushbutton for moving the motor up and down
Setting switch
4.5.1. (page 30)
4.5.2. (page 31)
4.5.3. (page 32)
29
EN
Switch
4.5.1. (page 30)
–
–
